Item# : EA719K-11

Description : Weld Gauge

Spec

For measurement of weld overlaying and fillet weld
Material-Stainless steel
Overall length-100mm
Throat of a fillet weld-11mm
Height of weld overlaying-8mm
Measurable groove angle(60°， 70°， 80°， 90°)
Accuracy-±0.2mm
Resolution-0.1mm
Additional explanation
Catalog Price (JPY)

¥ 4,600 （Excluding tax）／¥ 5,060（Tax including）

Quantity of stock

Latest stock：1

（2025/11/01 11:14 Currently）

Update
Catalog Page Page 0095 Page 0764
Main image
Expanding
  • Prev
  • Next

Documents

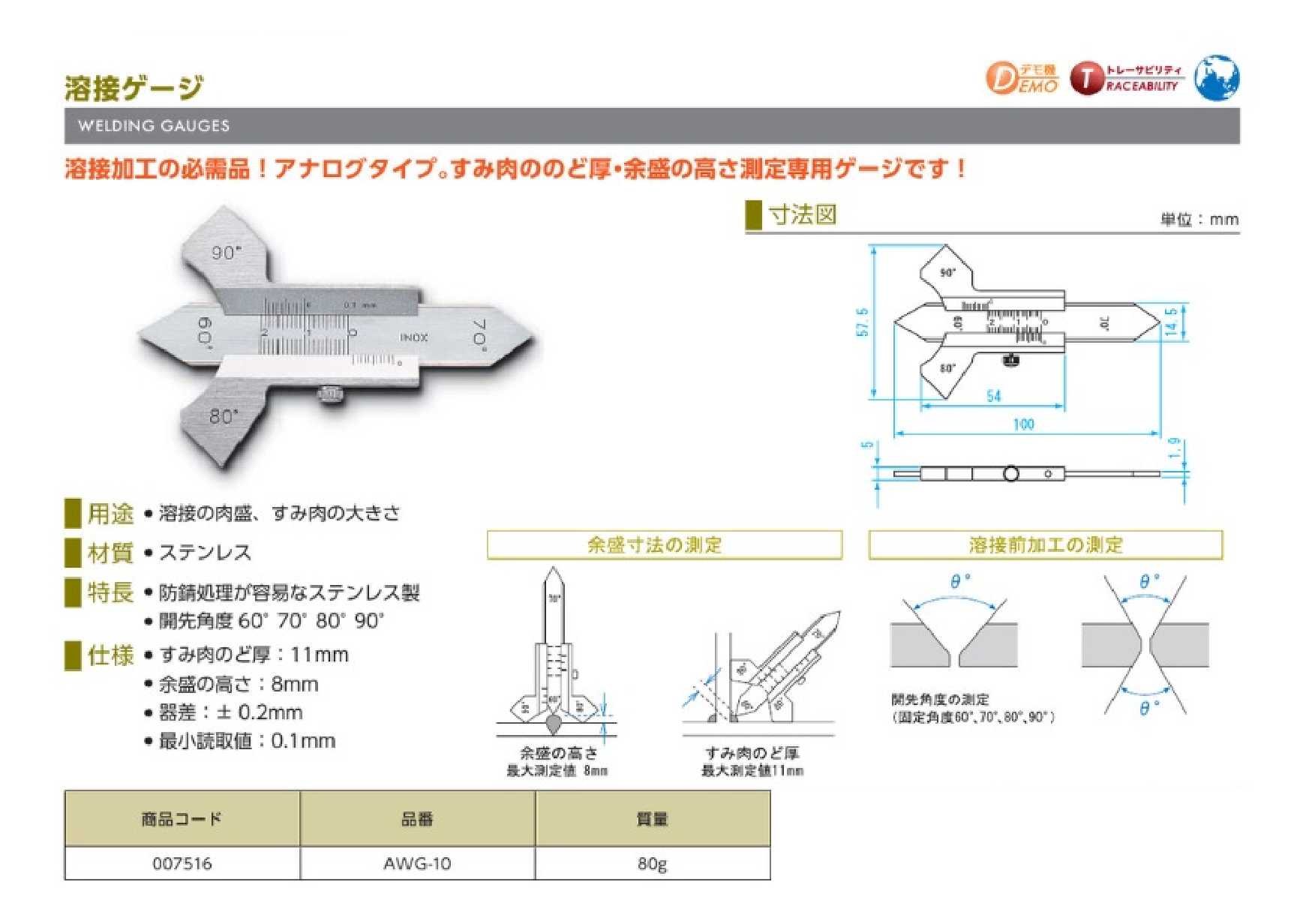

Catalog
