Product Detail

Item# : EA858HC

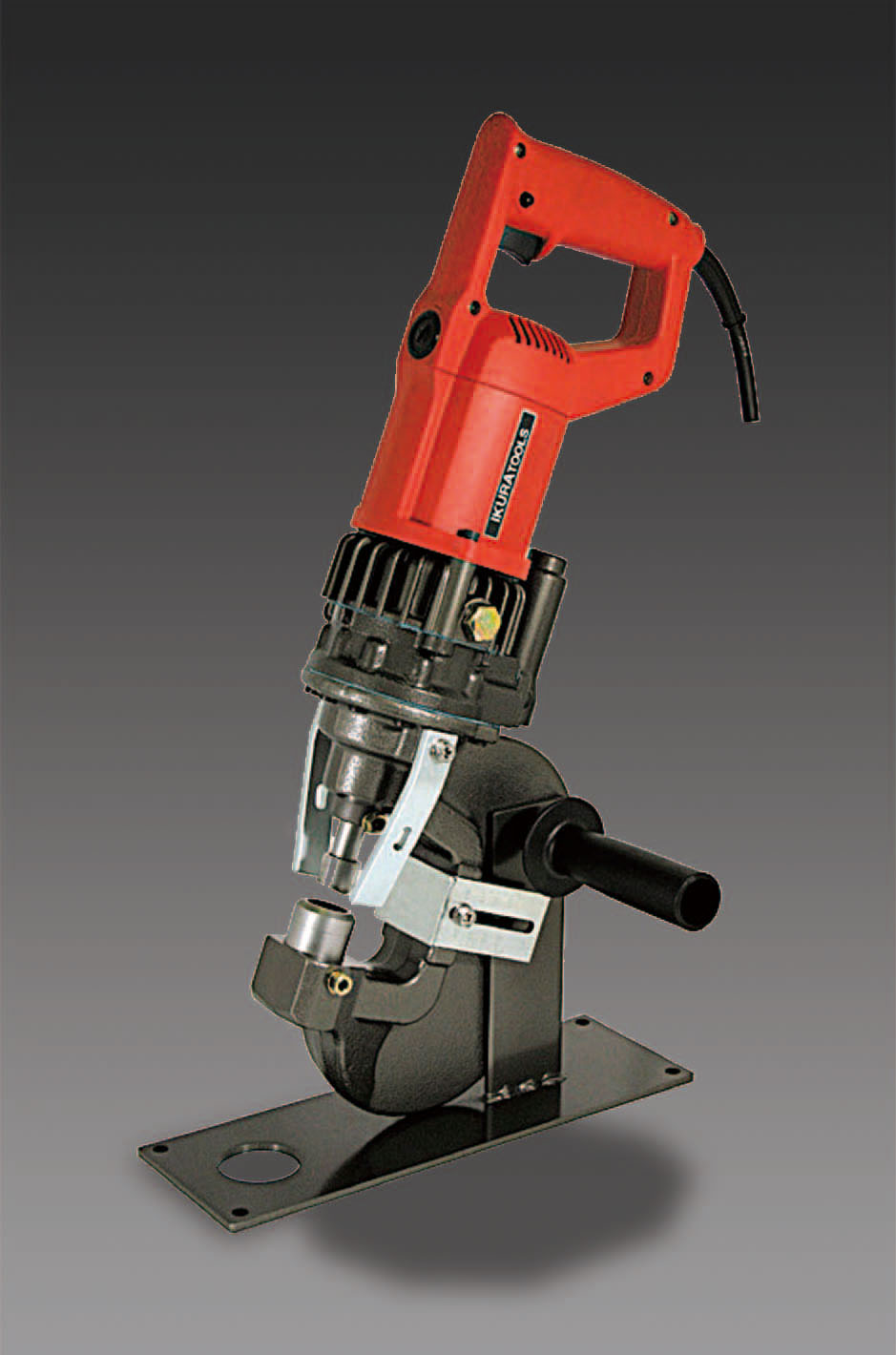

Description : Hydraulic Puncher

Spec

Hole shape-Round hole， slotted hole
Capacity-Dia. 20 x 6mm in thicknessDia. 14 x 7.5mm in thickness (7.5mm only for channel steel)
Power source-100VAC，50/60Hz, 900W
Throat dim.-55mm
Dim.-140 x 330 x 550(H)mm
Weight-9.0kg
Over load will not be applied to the body because the pressure limit valve.
Accessories-Dia. Work standside handle， case
Body double insulation structure
Cord length-2.7m

Additional explanation

Catalog Price (JPY)	¥ 193,000 （Excluding tax）／¥ 212,300（Tax including）
Quantity of stock	Latest stock：1 （2025/05/06 13:20 Currently）
Catalog Page	Page 0875

Parts & Accessories
Option	EA858HC-10 : Replacement Blade for Round Hole
Option	EA858HC-11 : Replacement Blade for Round Hole
Option	EA858HC-14 : Replacement Blade for Round Hole
Option	EA858HC-15 : Replacement Blade for Round Hole
Option	EA858HC-18 : Replacement Blade for Round Hole
Option	EA858HC-20 : Replacement Blade for Round Hole
Option	EA858HC-101 : Replacement Blade for Slotted Hole
Option	EA858HC-102 : Replacement Blade for Slotted Hole
Option	EA858HC-103 : Replacement Blade for Slotted Hole
Option	EA858HC-104 : Replacement Blade for Slotted Hole
Option	EA858HC-105 : Replacement Blade for Slotted Hole
