Item# : EA950CD
Description : Suction Lifter with Pump Gauge
Spec
| Body material | Aluminum |
Carrying capacity | 120kg |
|---|---|---|---|
| Gauge scale | 0 to -1.0bar |
Adsorption face | 210mm |
| Pad dim. | Dia. 210mm |
Pad material | Special rubber |
| Height | 80mm |
Self-weight | 1.34kg |
| With vacuum pump |
|||
| With a case(Size:270 x 230 x 90mm) |
|||
| You can check the adhesion level by the gauge. When the needle shows red，pump out it to the needle comes in blue. |
|||
| Suction force is increased by pressing the piston. |
|||
| To remove the lifter, please do from put the luggage in a safe place. |
|||
| Press the valve lever until the lifter is out, please release the vacuum. | |||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 74,100 （Excluding tax）／¥ 81,510（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：17 （2025/05/10 07:59 Currently）
|
||||
| Catalog Page | Page 0166 | ||||
Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Shape image")
.jpg "Enlarged image")
.jpg "Image to be changed to new model")
.jpg "Image to be changed to new model")
.jpg "Image to be changed to new model")
.jpg "商品説明")
Documents

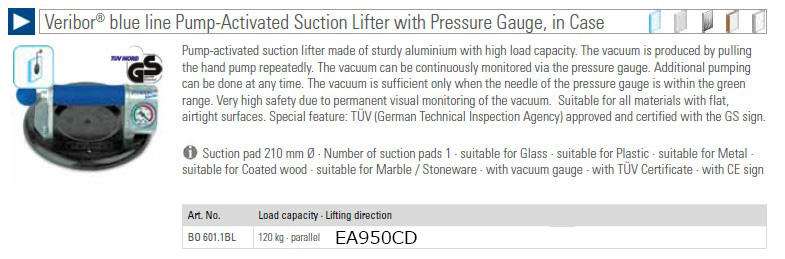

| Catalog |
|
|---|---|

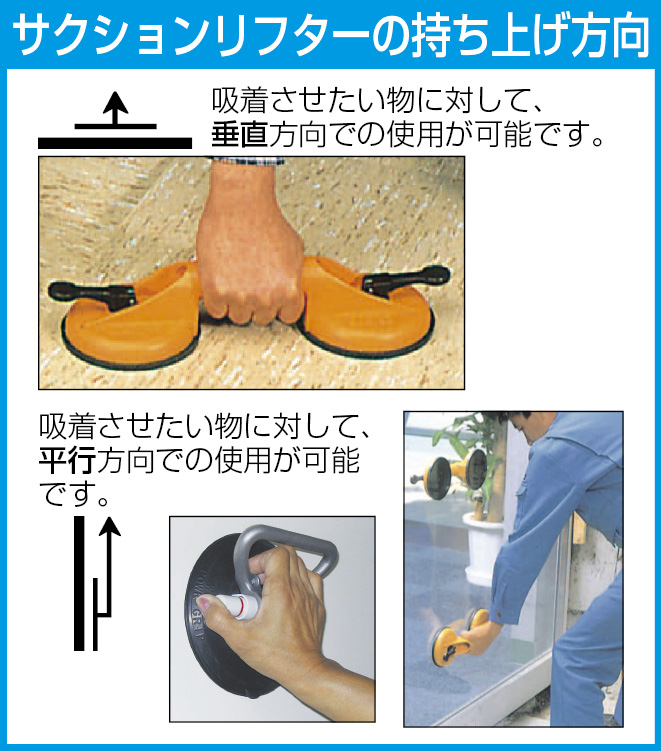

| How to use |
|
| Instruction manual(Japanese) |
|
