Item# : EA968A-16

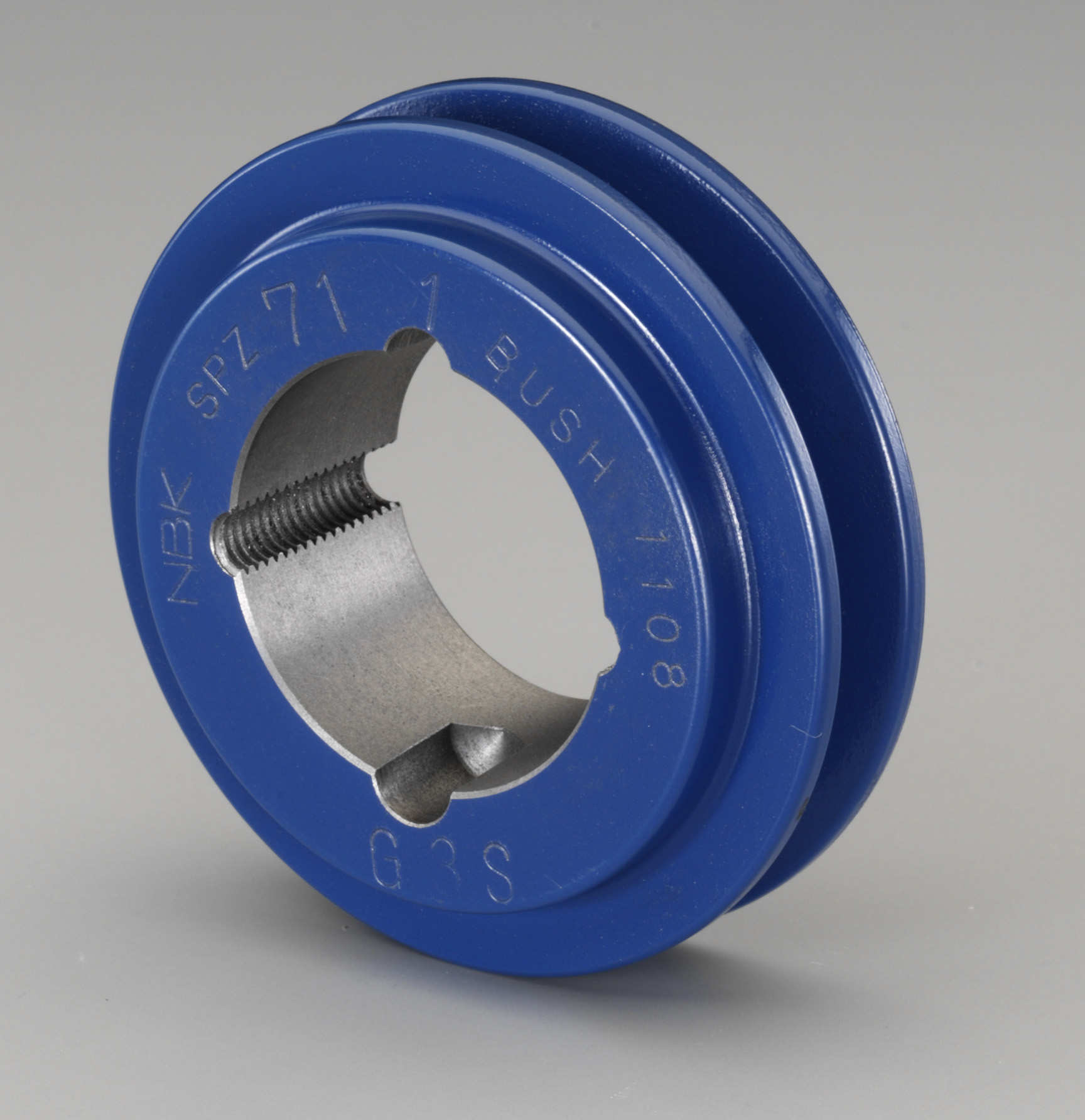

Description : V Pulley （SP Pulley ）（1 Groove ）

This product is no longer available. Please refer to replacement item below.

Spec

1 Groove
Material Cast iron

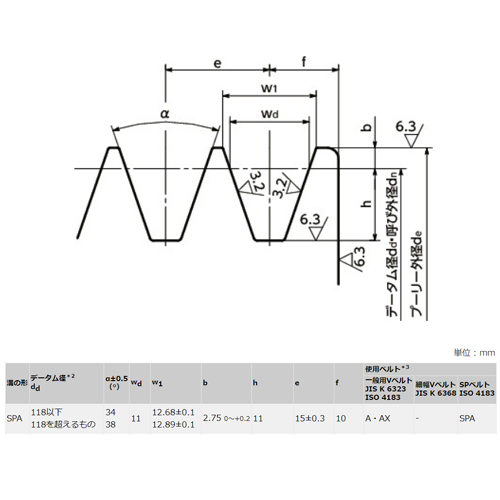

Shape 11U
Size I：25mmS：5mmW：20mm

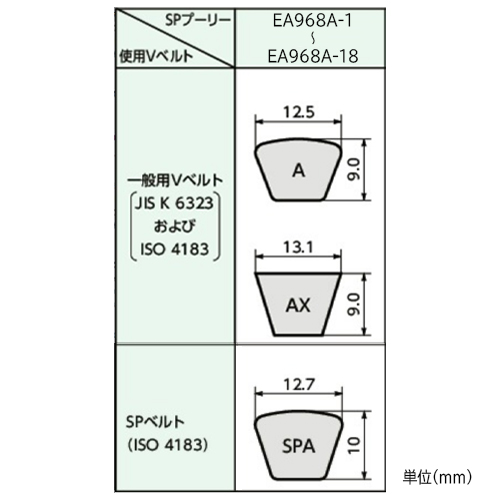

 Applicable V belt
A・AX(For general )SP A(SP Belt )

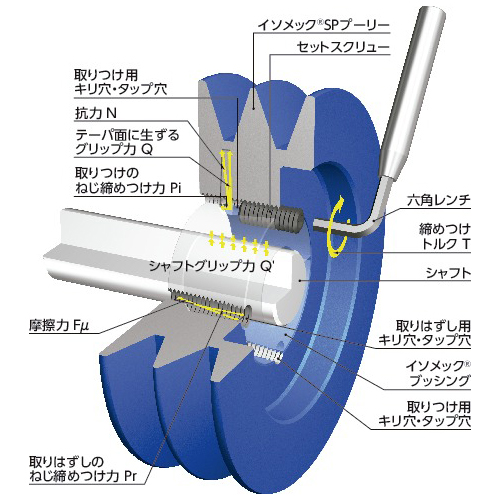

Attachment and placing to shaft can be done by one hex wrench or socket wrench.
Safe and sure transmission
Bushing is separately sold
Size (mm) Datum Dia. ：200
Outside dia. ：205.5
d：105
Additional explanation
Catalog Price (JPY)

¥ 12,100 （Excluding tax）／¥ 13,310（Tax including）

Quantity of stock

Latest stock：0

（2025/05/01 19:55 Currently）

Update
