Item# : EA968A-38

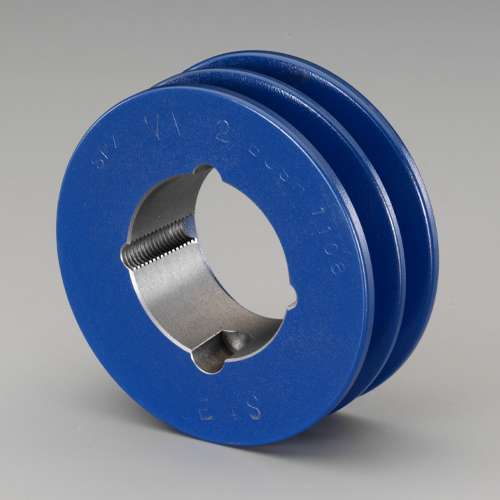

Description : [Two-Groove] V Pulley (SP Pulley /31U)

This product is no longer available. Please refer to replacement item below.

2 grooves
Material-Cast iron

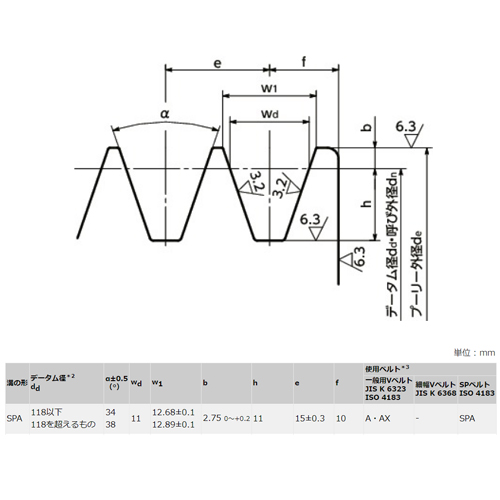

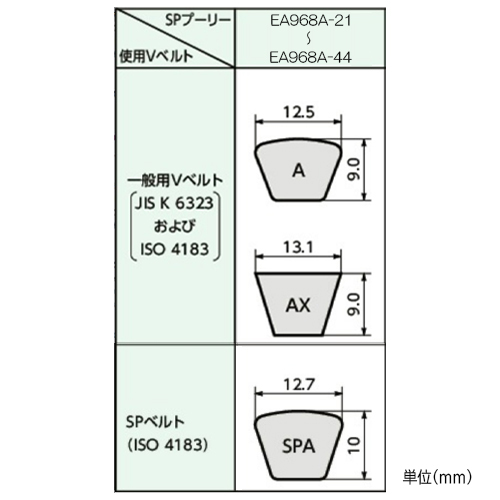

Applicable belt-A・AX(For standard)、SPA(SP belt)

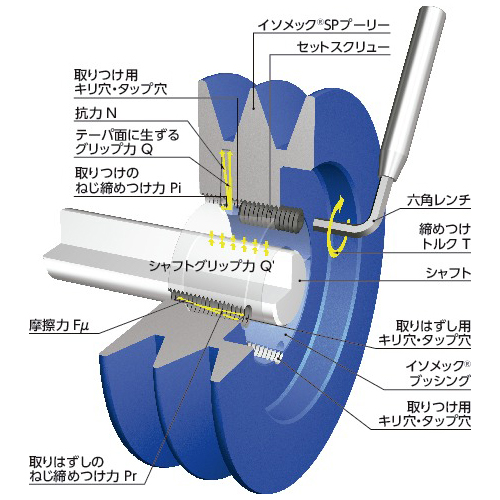

It can be attached to/removed from/positioned on a shaft with a single hex wrench or socket wrench.
Safe and certain transmission
Bushing sold separately

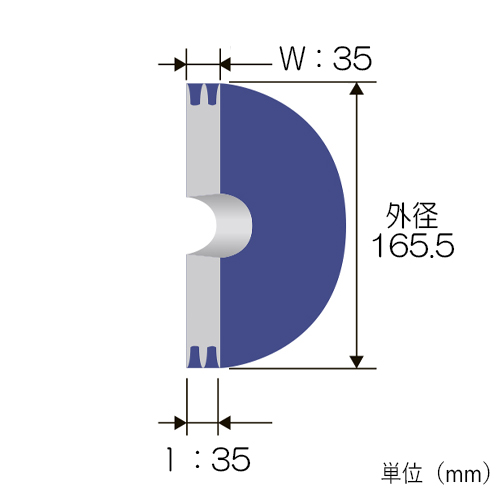

Datum dia.-160mm
Dia.-165.5mm
Shape-31U

Additional explanation

Catalog Price (JPY)	¥ 12,200 （Excluding tax）／¥ 13,420（Tax including）
Quantity of stock	Latest stock：0 （2025/05/02 08:59 Currently）
