Item# : EA140EL-4

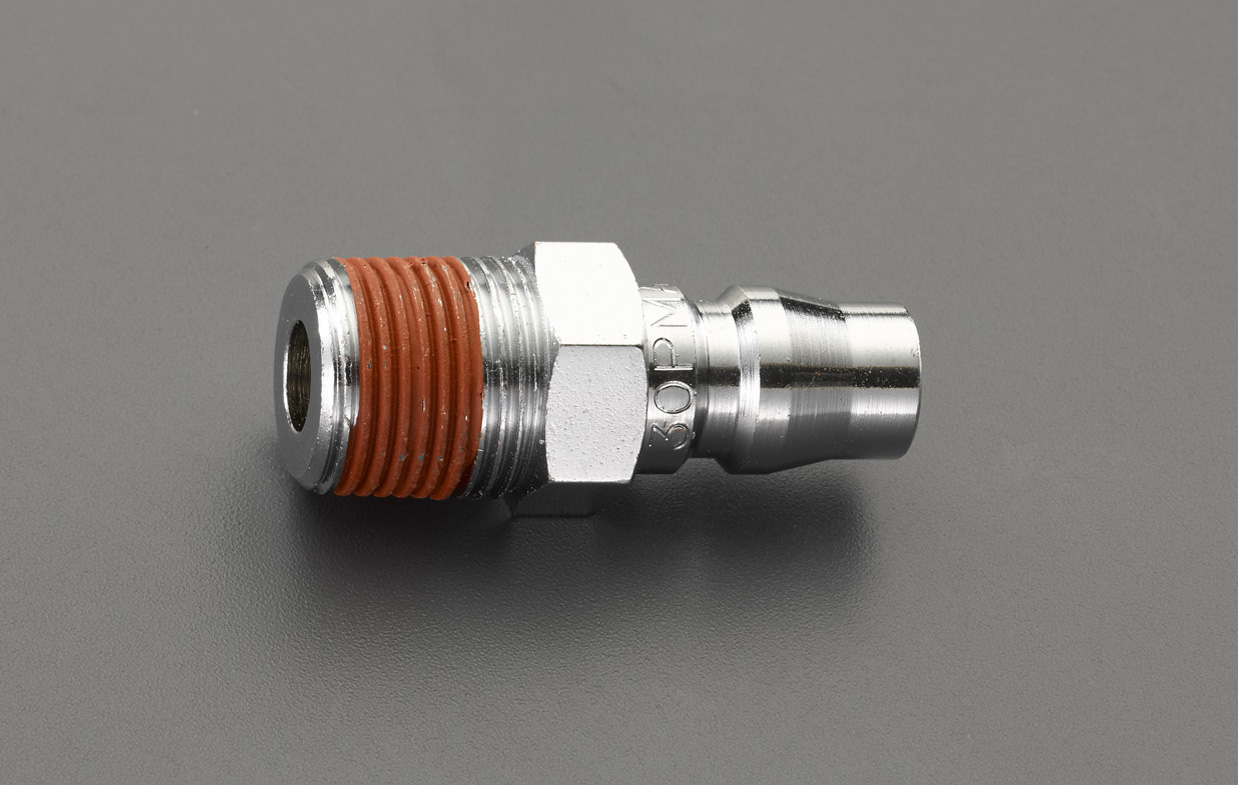

Description : Male Threaded Plug for Air (Type 20)

Spec

Operating pressure-1.47MPa
Material-Iron (zinc plating )
Screw dim. R (PT) 1/2
With sealing agent
Additional explanation
Catalog Price (JPY)

¥ 550 （Excluding tax）／¥ 605（Tax including）

Quantity of stock

Latest stock：127

（2024/06/01 10:46 Currently）

Update
Catalog Page Page 1090
Relational Items
EA140EL-2 Male Threaded Plug for Air (Type 20)
EA140EL-3 Male Threaded Plug for Air (Type 20)
EA140EL-4 Male Threaded Plug for Air (Type 20)
Web catalog image
Expanding
  • Prev
  • Next

Documents

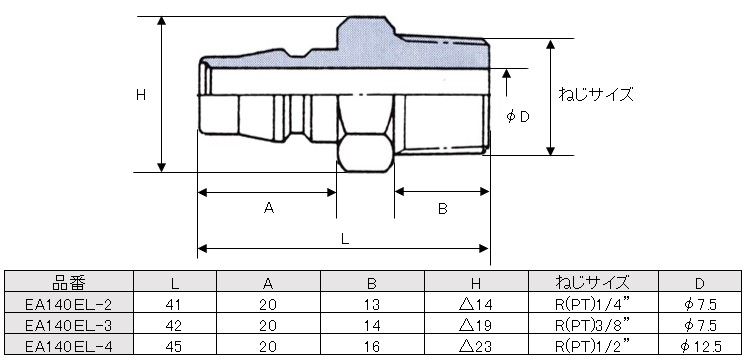

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
