Product Detail

Item# : EA141BM-8

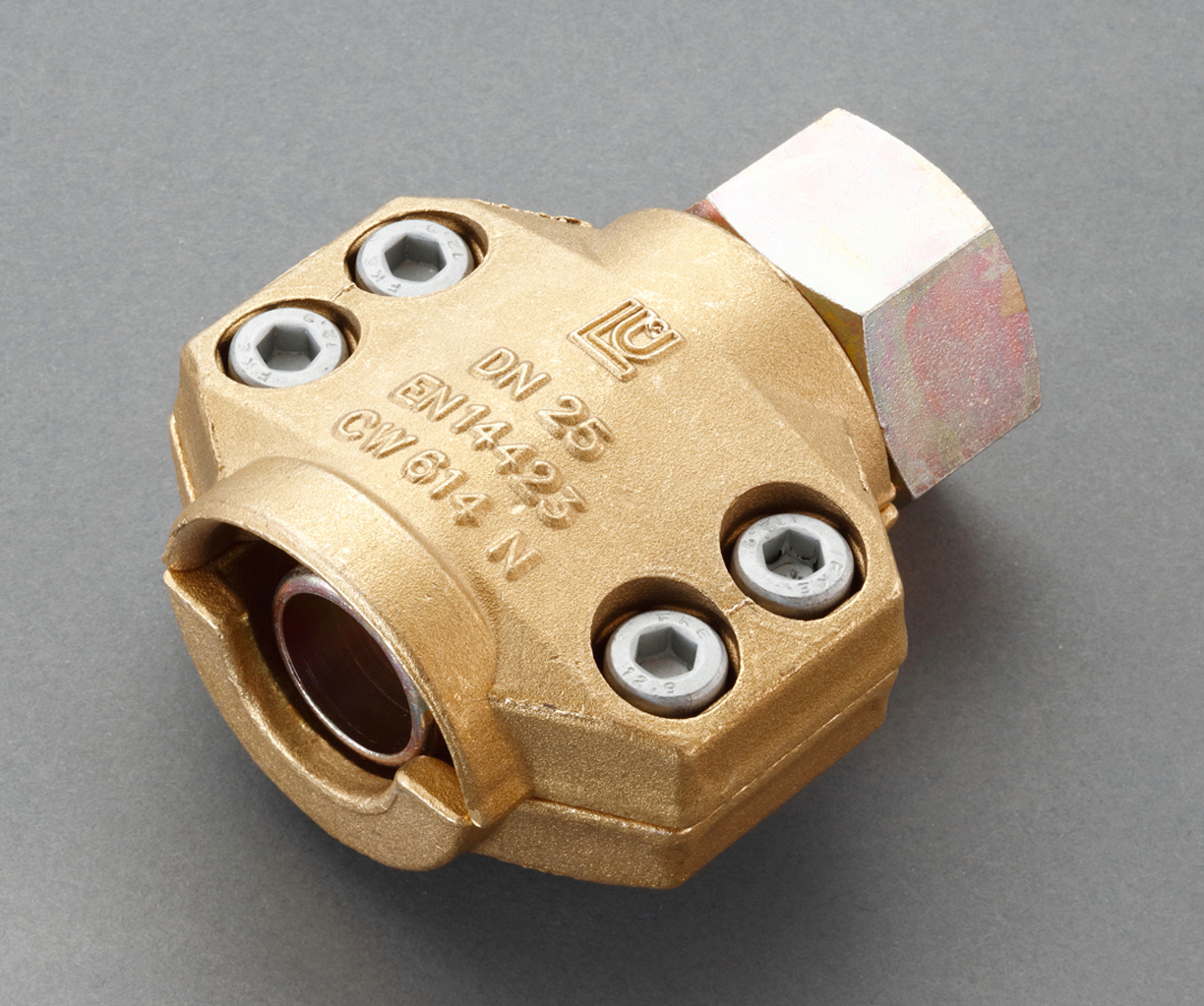

Description : (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]

Spec

Material	Female Thread ：Steel 、 Clamp Part ：Brass	Maximum Operating Pressure	1.8MPa
Service Temperature	Steam ：210℃Or Less 、 Water ：120℃Or Less	Screw Size (G)	1”
Applicable Hose Id	25mm	Applicable hose outer diameter	40mm

Additional explanation

Catalog Price (JPY)	¥ 10,300 （Excluding tax）／¥ 11,330（Tax including）
Quantity of stock	Latest stock：2 （2026/01/31 17:17 Currently）
Catalog Page	Page 1070

Relational Items
EA141BM-4 (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]
EA141BM-6 (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]
EA141BM-8 (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]
EA141BM-14 (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]
EA141BM-20 (For Steam ・Warm Water) Female Thread Safety Clamp ［Steel]

Web catalog image

Prev
Next

Documents

ESCO dimentional drawing
Catalog

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
