Product Detail

Item# : EA462BV-8

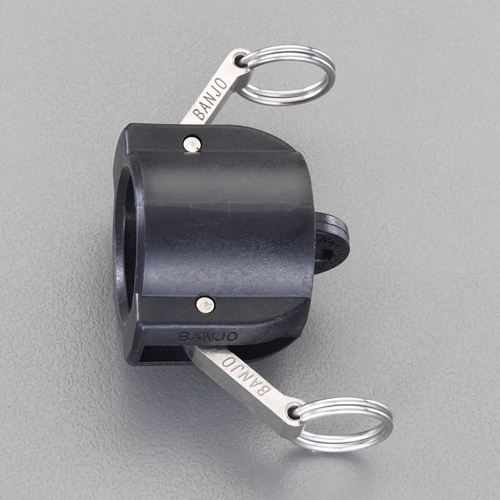

Description : Dust Cap (Polypropylene)

Spec

Material-Polypropylene
Operating pressure--6 to -20: 0.69MPa (7kgf/cm2)， -30: 0.39MPa (4kgf/cm2)
Nominal dia.-25(1”)

Additional explanation

Catalog Price (JPY)	¥ 4,130 （Excluding tax）／¥ 4,543（Tax including）
Quantity of stock	Latest stock：3 （2025/05/04 15:23 Currently）
Catalog Page	Page 1111

Relational Items
EA462BV-6 Dust Cap (Polypropylene)
EA462BV-8 Dust Cap (Polypropylene)
EA462BV-12 Dust Cap (Polypropylene)
EA462BV-14 Dust Cap (Polypropylene)
EA462BV-20 Dust Cap (Polypropylene)
EA462BV-30 Dust Cap (Polypropylene)

Parts & Accessories
Option	EA462BX-8 : Gasket (NBR)
Option	EA462BX-108 : Gasket (EPDM)
Option	EA462BX-208 : Gasket (Neoprene)
Option	EA462BX-308 : Gasket (silicon)
Option	EA462BX-408 : Gasket (Fluorine containing rubber)
Option	EA462BY-8 : Gasket (PFA)
Option	EA462BY-208 : Gasket (PTFE)

Web catalog image

Prev
Next

Documents

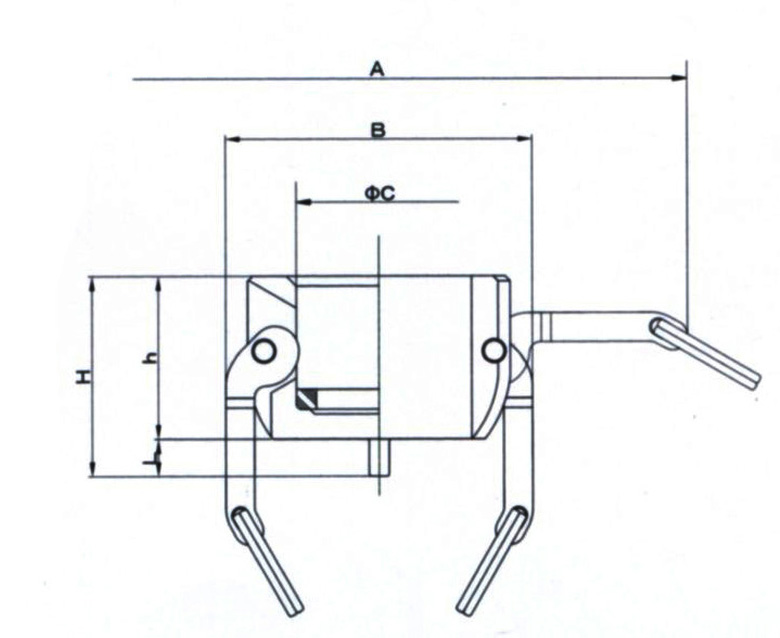

ESCO dimentional drawing

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
