Item# : EA469GA-24

Description : Elbow (Welding Joint)

Spec

Material-SGP (carbon steel tube for piping)
Butt welding type
Nominal 65(2.1/2)
OD 76.3mm
Additional explanation
Catalog Price (JPY)

¥ 2,030 (Excluding tax)/¥ 2,233(Tax including)

Quantity of stock

Latest stock:1

(2025/05/04 08:49 Currently)

Update
Catalog Page Page 1101
Relational Items
EA469GA-4 Elbow (Welding Joint)
EA469GA-6 Elbow (Welding Joint)
EA469GA-8 Elbow (Welding Joint)
EA469GA-12 Elbow (Welding Joint)
EA469GA-14 Elbow (Welding Joint)
EA469GA-20 Elbow (Welding Joint)
EA469GA-24 Elbow (Welding Joint)
EA469GA-30 Elbow (Welding Joint)

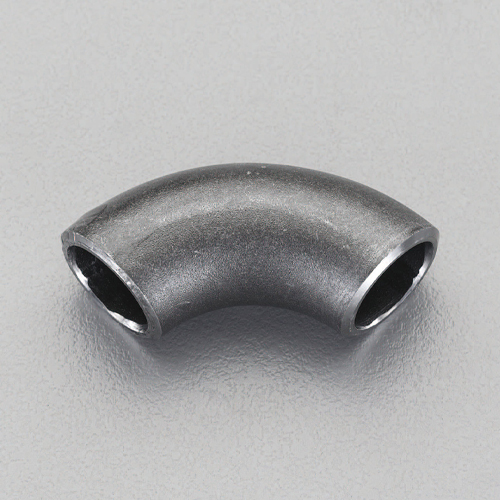

Web catalog image

Documents

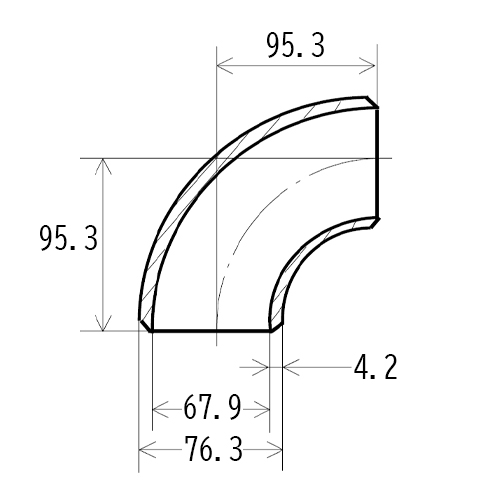

ESCO dimentional drawing
