Item# : EA470AC-2
Description : Ball Valve [Stainless Steel]
Spec
| Max pressure-Water， oil， gas(*) at normal temperature: 4.11MPa (42kgf/cm2)Saturated steam: 0.98MPa (10kgf/cm2) |
|||
| *This bulb is not designed to handle toxic gases. Use specially designed or certified valves for flammable gas service. |
|||
| Material-Stainless steel |
|||
| Screw dim. (PT) | 1/4 | ||
|---|---|---|---|
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 5,080 （Excluding tax）／¥ 5,588（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：11 （2025/05/04 13:35 Currently）
|
||||
| Catalog Page | Page 1106 | ||||
Web catalog image
Expanding
.jpg "Web catalog image")

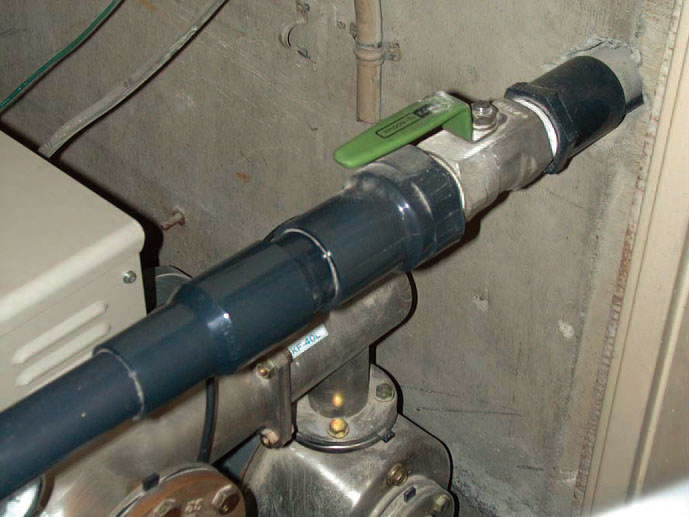

.jpg "Using image")

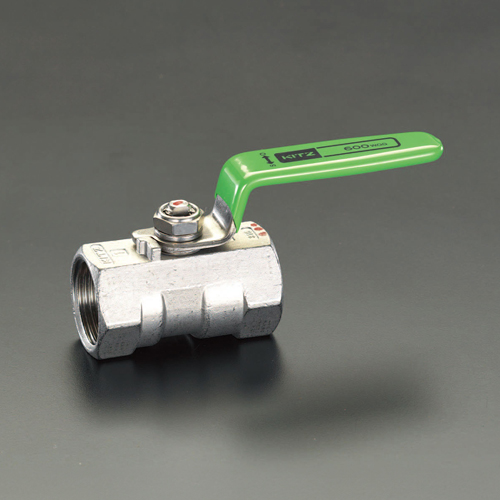

.jpg "Shape image")

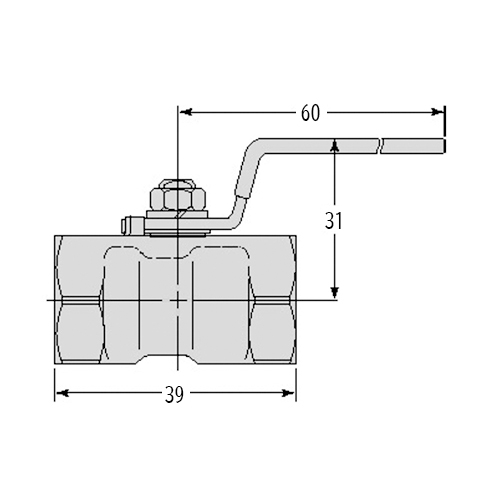

.jpg "ESCO dimentional drawing")
.jpg "商品説明")
Documents
| ESCO dimentional drawing |
|
|---|---|
| Manufacturer’s instruction manual(Japanese) |
|

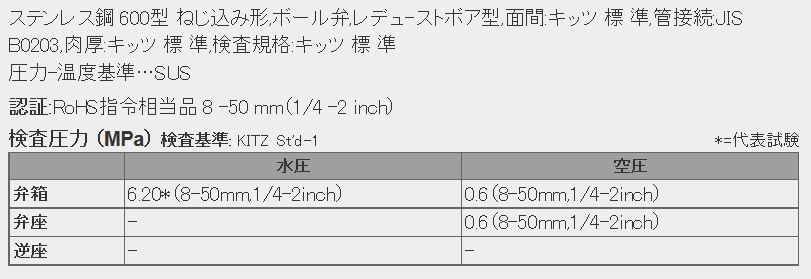

| Specification |
|
