Item# : EA538MH-23

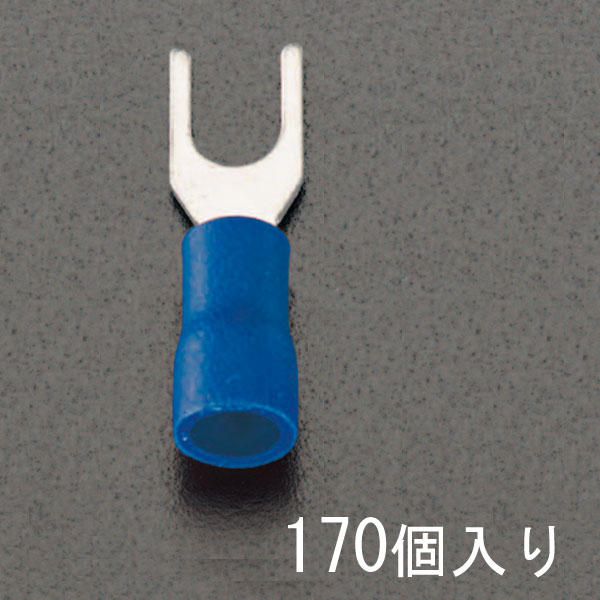

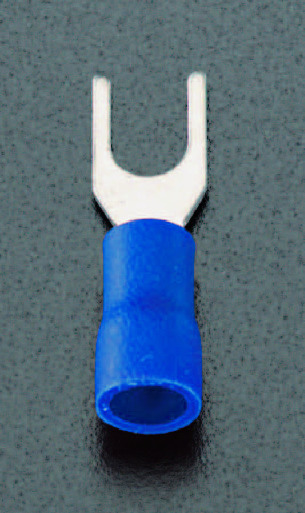

Description : [Y-Type] Insulated Crimp Terminal

Spec

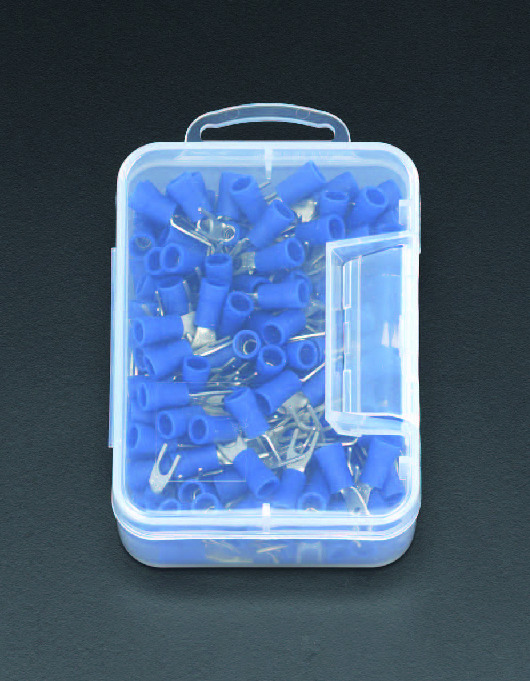

Qty. per unit: -23: 170 pcs-24， 25: 150 pcs
Length-23mm
Type 2-3
 Solid (mm) 1.14 to 1.82
Stranded (mm2) 1.04 to 2.63
Additional explanation
Catalog Price (JPY)

¥ 1,320 （Excluding tax）／¥ 1,452（Tax including）

Quantity of stock

Latest stock：57

（2025/05/02 03:51 Currently）

Update
Catalog Page Page 1219
Relational Items
EA538MH-23 [Y-Type] Insulated Crimp Terminal
EA538MH-24 [Y-Type] Insulated Crimp Terminal
EA538MH-25 [Y-Type] Insulated Crimp Terminal

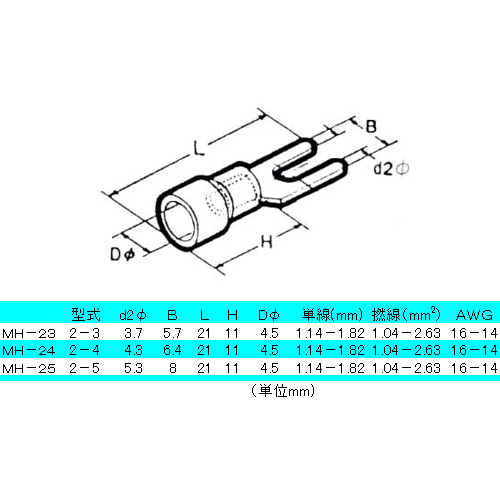

Web catalog image
Expanding
  • Prev
  • Next

Documents

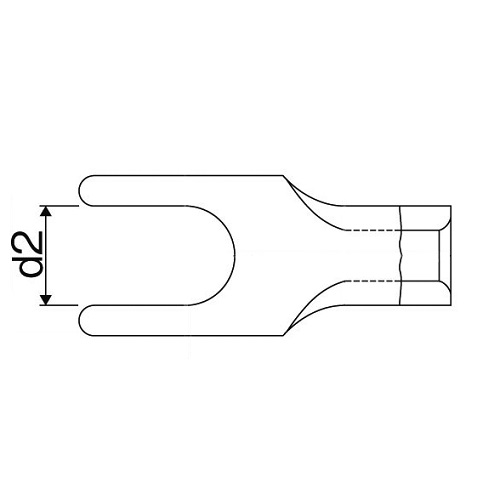

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
