Product Detail

Item# : EA538SM-13

Description : Multiple Insulated cap(For Round Terminal)

Spec

Rated voltage-AC/DC600V
Compatible cable dia.--12: dia.3.5 x 2pcs/pole ,-13 to -15:dia.5 x 2 pcs/pole

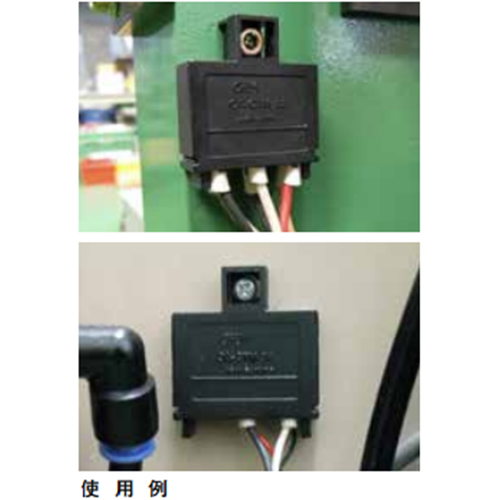

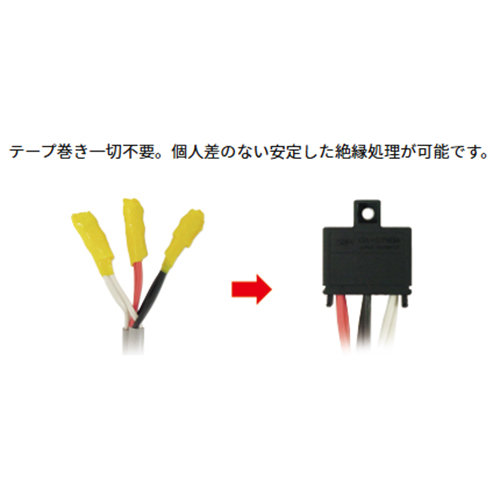

Used for relay connection of motor wires of machines and inspection apparatuses as well as for insulation
RoHS-compliant.
Number of poles-3 poles

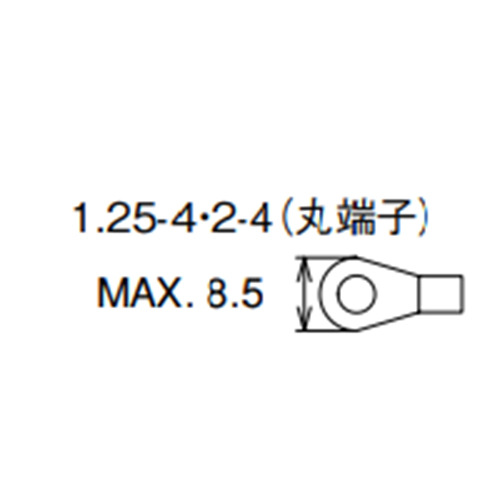

Compatible terminal(round)-1.25-4, 2-4

Additional explanation

Catalog Price (JPY)	¥ 1,000 （Excluding tax）／¥ 1,100（Tax including）
Quantity of stock	Latest stock：8 （2025/05/02 07:37 Currently）
Catalog Page	Page 1233

Relational Items
EA538SM-12 Multiple Insulated cap(For Round Terminal)
EA538SM-13 Multiple Insulated cap(For Round Terminal)
EA538SM-14 Multiple Insulated cap(For Round Terminal)
EA538SM-15 Multiple Insulated cap(For Round Terminal)

Web catalog image

Prev
Next

Documents

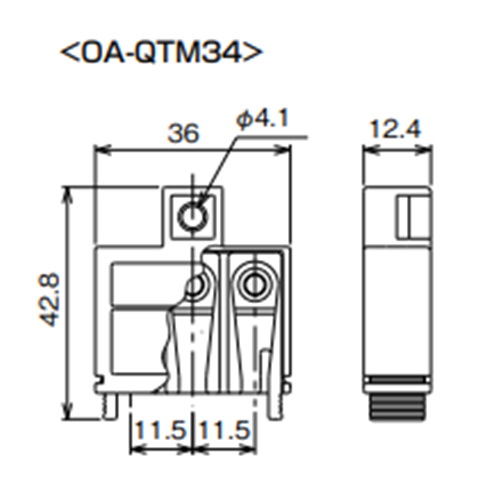

ESCO dimentional drawing
