Item# : EA638SG-116

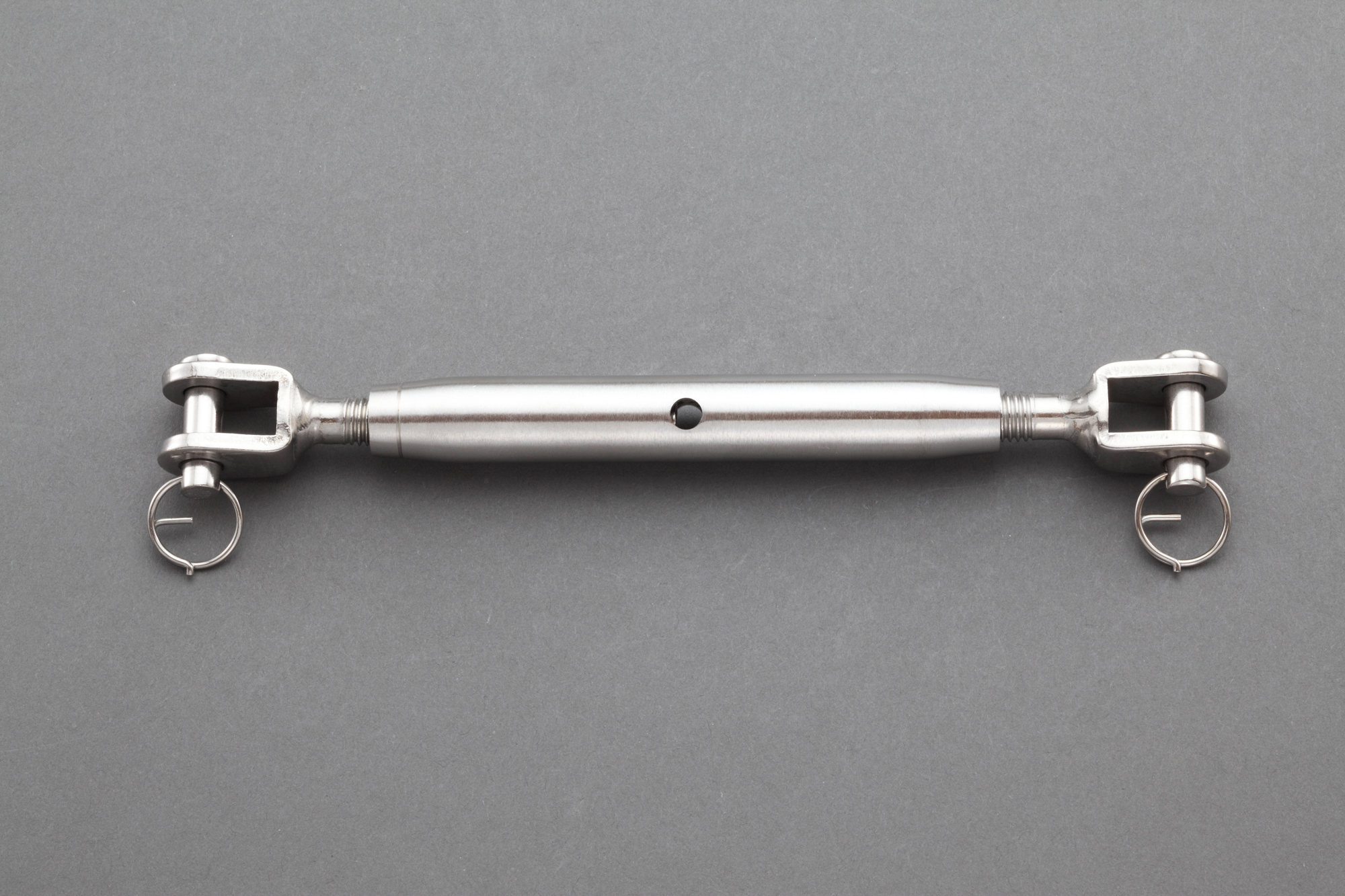

Description : [Stainless Steel] Toggle , Toggle Turnbuckle

Catalog Correction

25/04/02 Breaking Load : (wrong) 69kN, (correct) 77.2kN (No.56 1032)

Spec

Material-Stainless steel (SUS316)
Thread dia.-M16
Min.-288mm
Breaking Load 69kN
 size(mm) A：14、D：22
Additional explanation
Catalog Price (JPY)

¥ 13,600 （Excluding tax）／¥ 14,960（Tax including）

Quantity of stock

Latest stock：1

（2025/05/02 16:52 Currently）

Update
Catalog Page Page 1416
Relational Items
EA638SG-105 [Stainless Steel] Toggle , Toggle Turnbuckle
EA638SG-106 [Stainless Steel] Toggle , Toggle Turnbuckle
EA638SG-108 [Stainless Steel] Toggle , Toggle Turnbuckle
EA638SG-110 [Stainless Steel] Toggle , Toggle Turnbuckle
EA638SG-112 [Stainless Steel] Toggle , Toggle Turnbuckle
EA638SG-116 [Stainless Steel] Toggle , Toggle Turnbuckle
Web catalog image
Expanding
  • Prev
  • Next

Documents

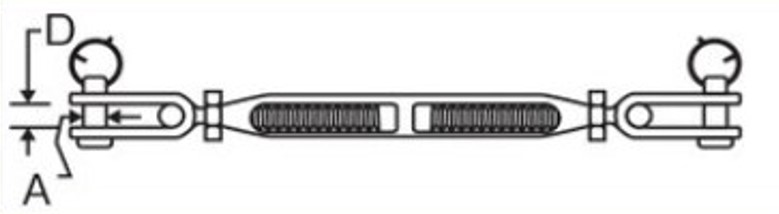

ESCO dimentional drawing
