Product Detail

Item# : EA725AA-15

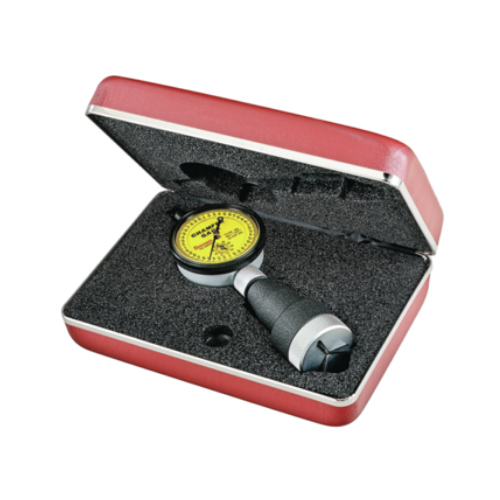

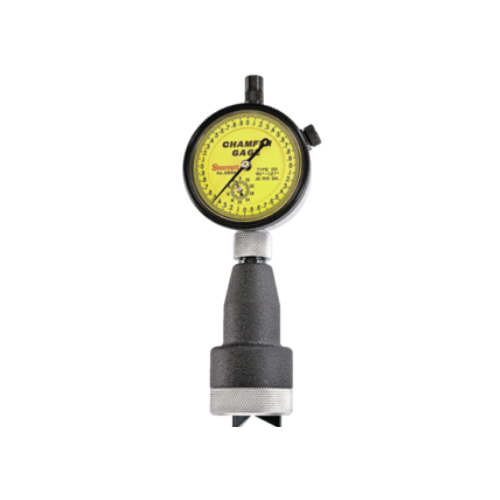

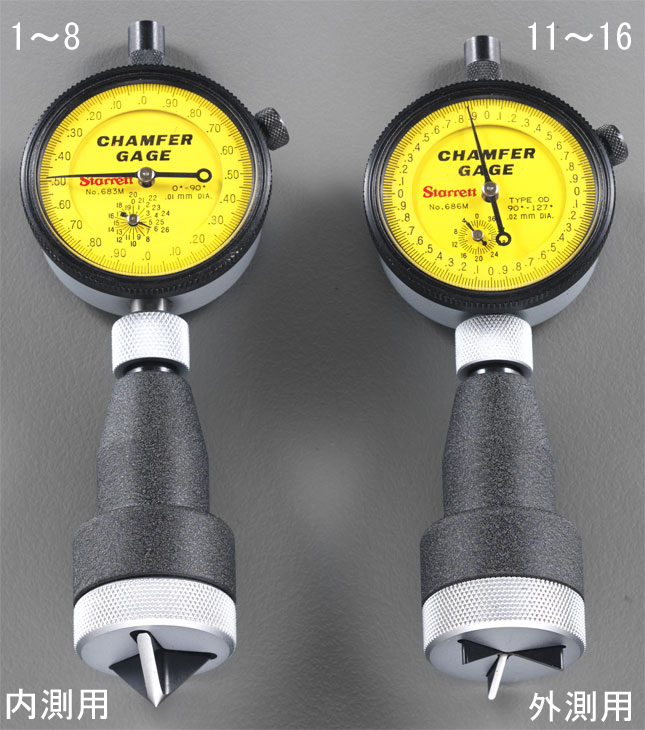

Description : (127 degrees)Bevel Gauge

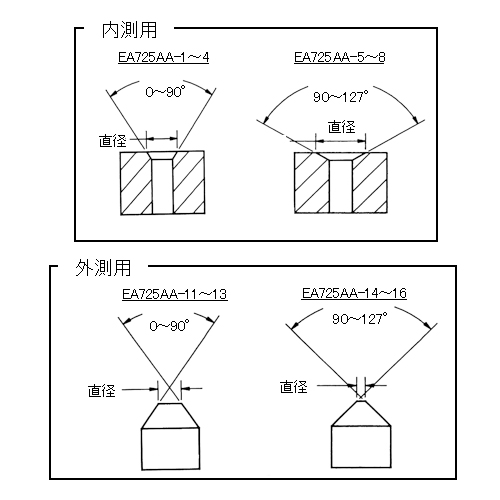

Measure a diameter by directly imposing the plunger on the beveled hole.
Target	Outside measurement	Applicable angle	90 to 127°
Measurement range	4.7 to 25mm

Additional explanation

Web catalog image

Instruction manual(Japanese)

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
