Item# : EA790AH-10B

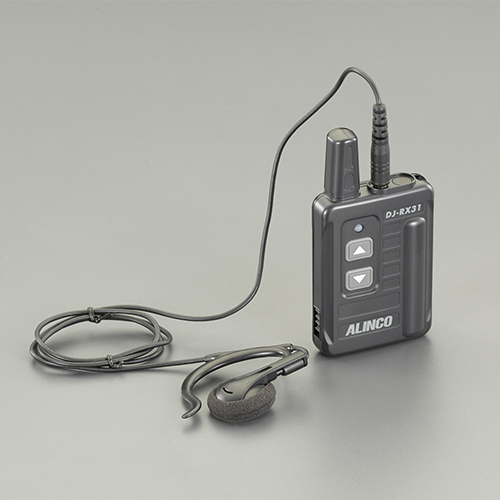

Description : Receiver for Transceiver
Spec
| No License/Qualification Requrement |
|||
| Receive only |
|||
| Frequency Range | 421.5750 to 421.7875MHz / Bch-B side Half duplex 421.8125 to 421.9125MHz / Lch-B side Half duplex 422.2000 to 422.3000MHz / Lch simplex 422.0500 to 422.1750MHz / Bch simplex |
Radio Wave Type | F3E(FM) |
|---|---|---|---|
| Number Of Channels | Simplex/Half-duplex 47ch |
Operation Temperature Range | -10℃ to +50℃ Charging ：0℃ to +40℃ |
| Rated Voltage | DC15V(Battery Terminal ) |
Current Consumption | Standby time：Approx.160mA At Rated Output：Approx. 190mA |
| Power Supply | AA Battery x 1pc. or Nickel Hydrogen Rechargeable battery x 1pc. (Both Separately Sold ) |
Usable time | AA Alkalinity Battery ：About 29Hours (BS Off: About 10Hours ) Nickel Hydrogen Battery ：About 26Hour (BS Off: About 9Hours) |
| Size | 52.8(W) x 14.6(D) x 73.8(H)mm (Excluding protrusions) Antenna Length ：28mm |
Weight | Approx. 64g(including AA Alkaline Dry Cell) |
| Reception Sensitivity | -14dBμOr Less (12dB SINAD) |
Audio Output | 50mW or More(at 8Ω load) |
| Earphone/Neck Strap included |
|||
| Earphone | Ear hook type earphone with Dia 3.5mm Plug. Either ear can be used. (Cable Length 80cm) |
Compatible Model | EA790AH-1B,-2B,-3B, EA790AJ-15A,-16A, EA790AK-7B,-8B,-10A(old),-13,-15 |
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 17,500 （Excluding tax）／¥ 19,250（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：1 （2025/10/25 22:30 Currently）
|
||||
| Catalog Page | Page 1991 Page 1992 | ||||
| Relational Items |
|---|
| EA790AH-10B Receiver for Transceiver |
| EA790AH-9 |
| Parts & Accessories | |
|---|---|
| Option | EA758YA-3A : [AA] Alkaline batteries |
| Option | EA790AX-15 : Rechargeable nickel-hydrogen cell |

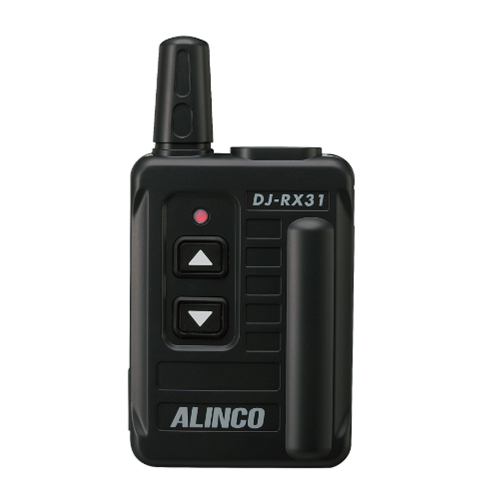

Web catalog image
