Product Detail

Item# : EA824RD-5.0

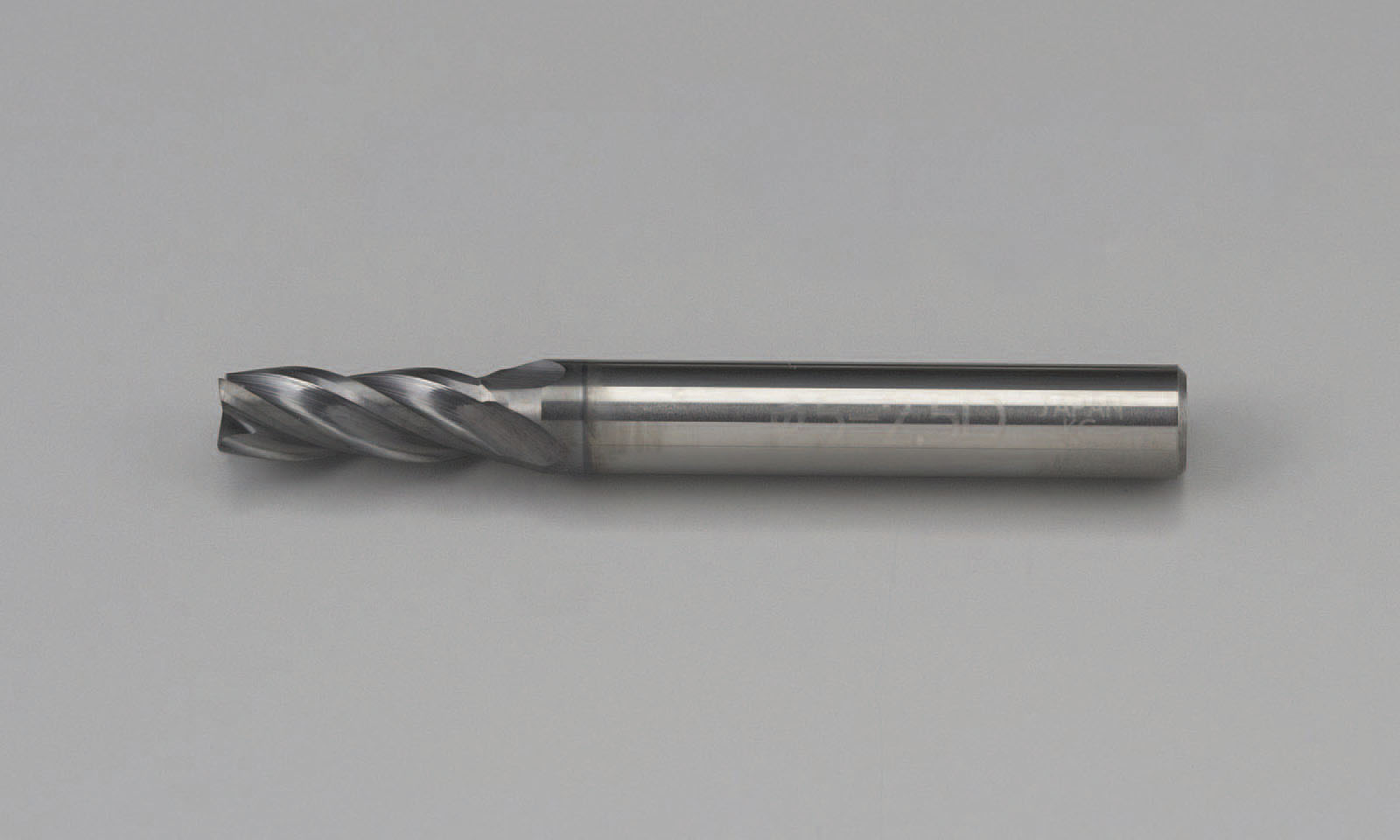

Description : [AlCr-based coat] Carbide 4-blade End Mill

Spec

Carbide alloy
GSX coating

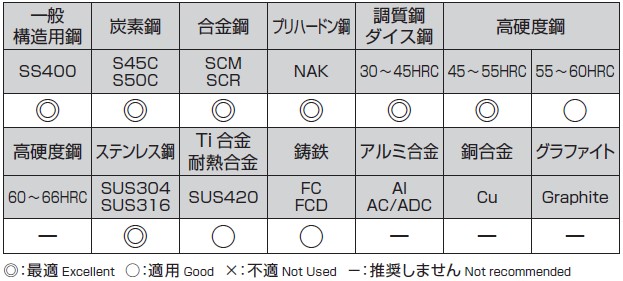

This product supports applications from wet cutting of raw materials to a wide range of dry cutting.
Tip dia.	5.0	Length	60
Blade L	12.5	Shank dia.	6

Additional explanation

Catalog Price (JPY)	¥ 3,810 （Excluding tax）／¥ 4,191（Tax including）
Quantity of stock	Latest stock：1 （2025/05/03 14:59 Currently）
Catalog Page	Page 0929

Relational Items
EA824RD-1.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-1.5 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-2.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-2.5 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-3.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-3.5 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-4.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-4.5 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-5.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-5.5 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-6.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-8.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-10.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-12.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-15.0 [AlCr-based coat] Carbide 4-blade End Mill
EA824RD-16.0 [AlCr-based coat] Carbide 4-blade End Mill

Web catalog image

Prev
Next

Documents

How to use

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
