Item# : EA829EL-6

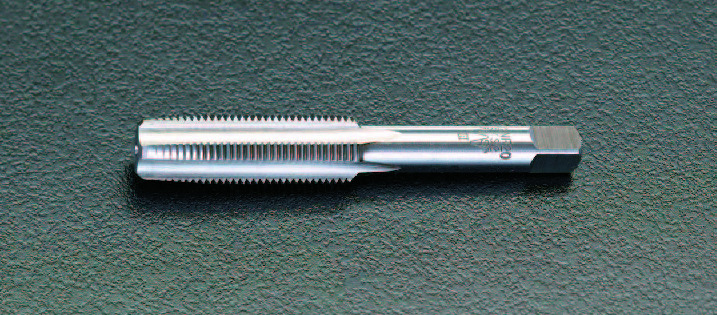

Description : Hand Tap (UNF)

Spec

Material-SKH
JIS No.2 class
UNF (US standard fine)

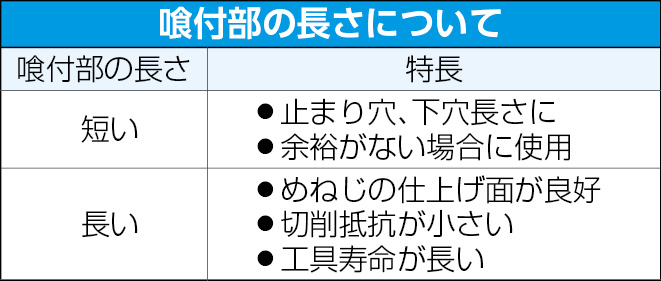

Number of biting threads-1.5 P (Upper)
Nominal UNF3/4 x 16
 Length 95mm
■Width 11mm
Additional explanation
Catalog Price (JPY)

¥ 8,390 （Excluding tax）／¥ 9,229（Tax including）

Quantity of stock

Latest stock：4

（2025/11/05 10:07 Currently）

Update
Catalog Page Page 0940
