Item# : EA897AF-1A
Description : Industrial Fan (Stand Type)
Spec
| Power Supply | 100V(50/60Hz) |
Power Consumption (50/60Hz) | 120/160W |
|---|---|---|---|
| Fan Dia. | 450mm |
Swing angle | 75° |
| Angle of depression and incidence | －5・0・20・35°(4Step adjustment) |
Max. air volume(50/60Hz) | 165/186m3/min. |
| 3Step air flow adjustment(Strong ・Medium・Weak ) |
|||
| Size | 840x725x1170 to 1280(H)mm |
Weight | 11kg |
| Cord Length | 1.7m(With ground, Tracking Resistance) |
||
| One push folding tripod |
|||
| Fully-closed type motor |
|||
| Selection of \"swinging \" and \"fixing\" can be changed by raising and lowering the knob on the back on the side of the fan(similar to domestic fan). |
|||
| Material | blade: resin | ||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 20,000 （Excluding tax）／¥ 22,000（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：47 （2025/05/04 11:52 Currently）
|
||||
| Catalog Page | Page 0060 | ||||
Replacement Items
|
|
Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "Sub image")
Documents
| Manufacturer’s instruction manual(Japanese) |
|
|---|---|

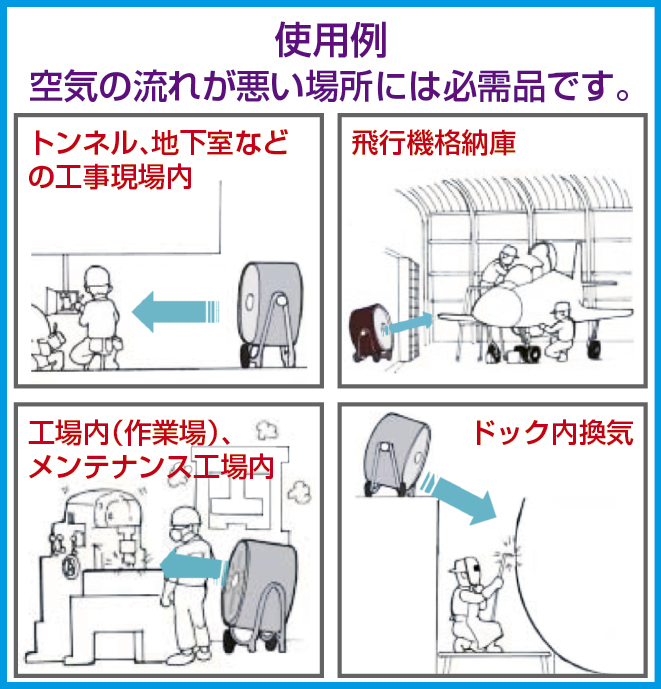

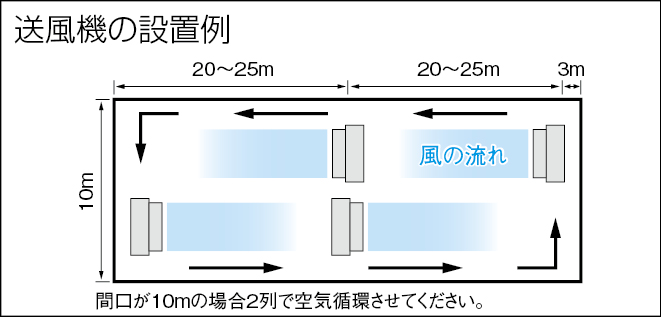

| How to use |
|
