Item# : EA940DH-203

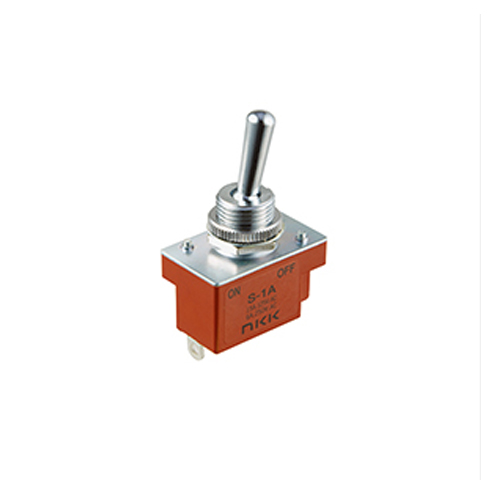

Description : Toggle Switch

Spec

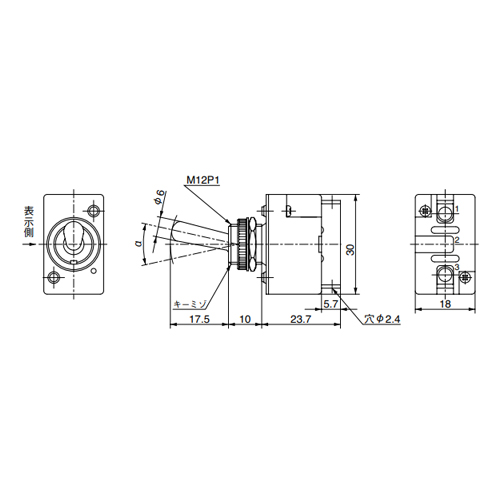

Hole cut in panel-12.5mm
Terminal shape-Soldered terminal
Contact resistance-
10mΩ or less
Number of poles Single-pole，double-throw
 Switch ON-OFF-ON
Contact capacity 15A 125V AC
6A 250V AC
20A 30V DC
Additional explanation
Catalog Price (JPY)

¥ 870 （Excluding tax）／¥ 957（Tax including）

Quantity of stock

Latest stock：2

（2025/05/03 20:42 Currently）

Update
Catalog Page Page 1240
Relational Items

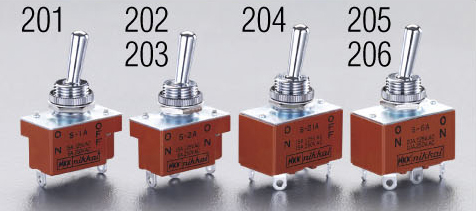

EA940DH-201 Toggle Switch
EA940DH-202 Toggle Switch
EA940DH-203 Toggle Switch
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
