Item# : EA940DH-254

Description : Toggle switch (Waterproof type)

Catalog Correction

25/05/26 Panel cut is not 12.2mm but 12.5mm. (No.56 1115)

Spec

Hole cut in panel-12.2mm
Contact capacity-10A 125V AC
6A 250V AC
10A 30V DC
Contact resistance-10mΩ or less
Totally waterproof
Number of poles-Single-pole， double-throw
Switch ON-OFF-ON
 Terminal shape Screw terminal
Additional explanation
Catalog Price (JPY)

¥ 1,440 （Excluding tax）／¥ 1,584（Tax including）

Quantity of stock

Latest stock：4

（2025/11/06 06:22 Currently）

Update
Catalog Page Page 1240
Relational Items
EA940DH-251 Toggle switch (Waterproof type)
EA940DH-252 Toggle switch (Waterproof type)
EA940DH-253 Toggle switch (Waterproof type)
EA940DH-254 Toggle switch (Waterproof type)

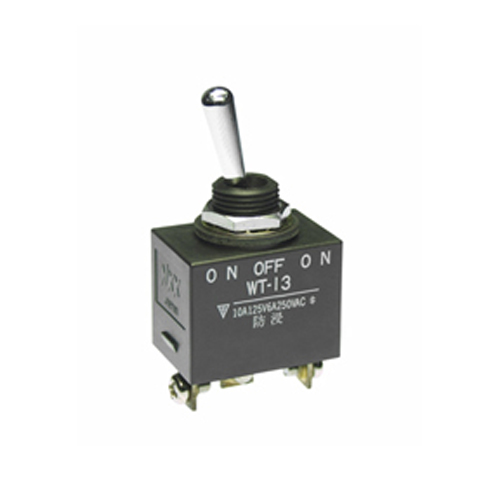

Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF

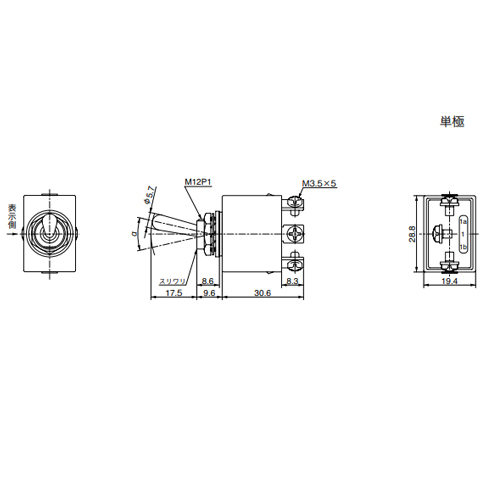

ESCO dimentional drawing
  1. IMG
