Item# : EA940DH-432

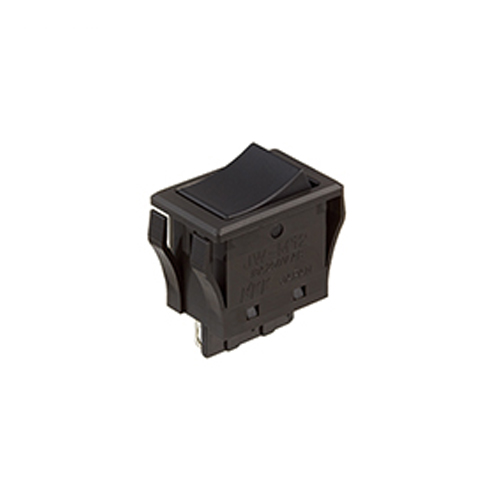

Description : Rocker switch (Conforming to TV-5)

Spec

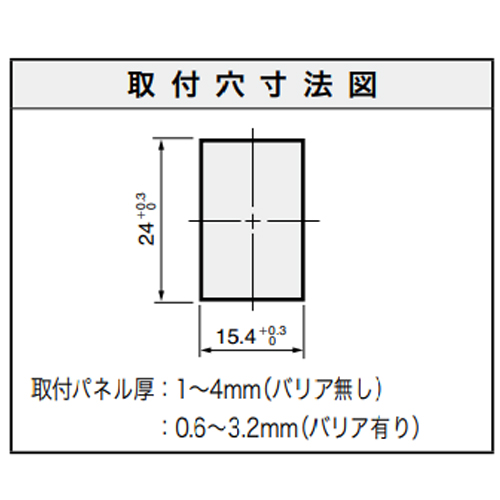

Hole cut in panel-24 x 15.4mm
Rated capacity-10A 125VAC， 10A 250VAC
Panel thickness-1 to 4mm
Number of poles Single-pole， double-throw
 Switch ON-ON
Additional explanation
Catalog Price (JPY)

¥ 695 （Excluding tax）／¥ 765（Tax including）

Quantity of stock

Latest stock：4

（2025/10/24 07:17 Currently）

Update
Catalog Page Page 1239

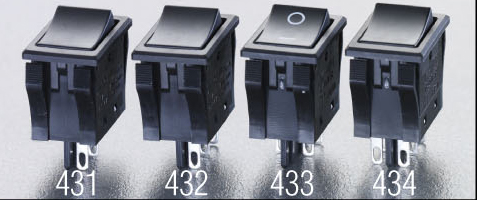

Relational Items
EA940DH-431 Rocker switch (Conforming to TV-5)
EA940DH-432 Rocker switch (Conforming to TV-5)
EA940DH-433 Rocker switch (Conforming to TV-5)
EA940DH-434 Rocker switch (Conforming to TV-5)
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF

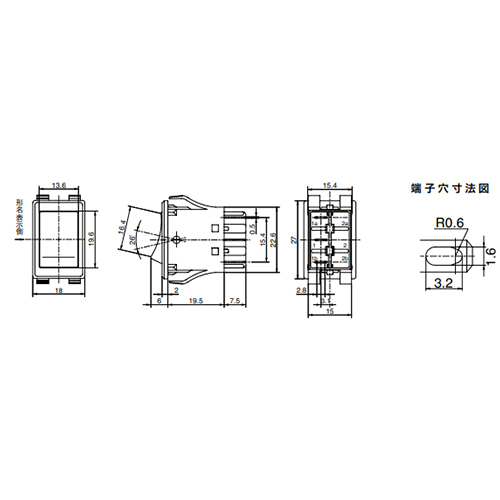

ESCO dimentional drawing
  1. IMG
  2. IMG
