Item# : EA947HM-35
Description : Cable Protector
Spec
| Length-2m | |||
| Load capacity-1，960N (200kgf) |
|||
| Suitable for protecting indoor wiring on the floor |
|||
| With adhesive tape |
|||
| Dollies and carts can smoothly roll over the cable cover. |
|||

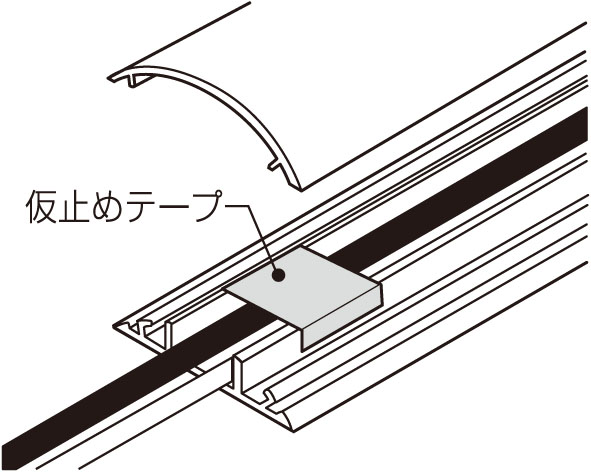

| Nail holes are provided on the base for easy nailing. |
|||
| Color | Beige |
Width x Height | 78 x 15.5mm |
|---|---|---|---|
| Compatible cable-Center: φ10 communication line / cable-2 lines, LAN cable (UTP 0.5 x 4P-6), VVF (1.6 x 3C-2, 2.0 x 2C-3, 2.6 x 2C-2, 2.6 x 3C-1) Side (one side): Communication line / cable of φ9 or less LAN cable (UTP 0.5 x 4P-2) VVF (2.0 × 3C-1 Article, 2.6 × 2C-1 Article) |
|||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 3,610 （Excluding tax）／¥ 3,971（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：11 （2025/11/17 17:09 Currently）
|
||||
| Catalog Page | Page 1196 | ||||
| Parts & Accessories | |
|---|---|
| Option | EA947HM-35E : End [for Cable Protector] |
| Option | EA947HM-35F : Corner [for Cable Protector] |

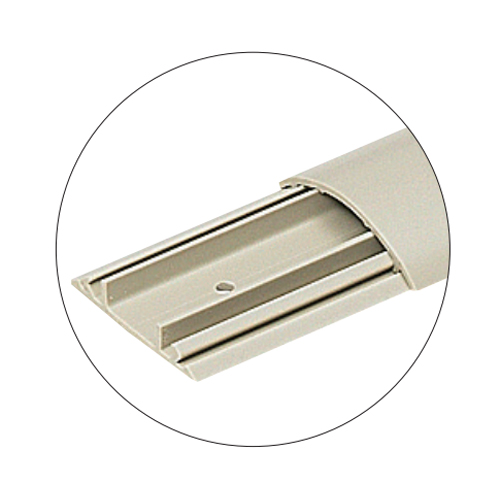

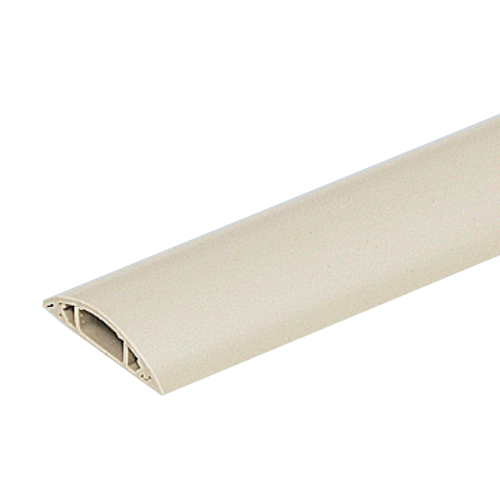

Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "ESCO dimentional drawing")

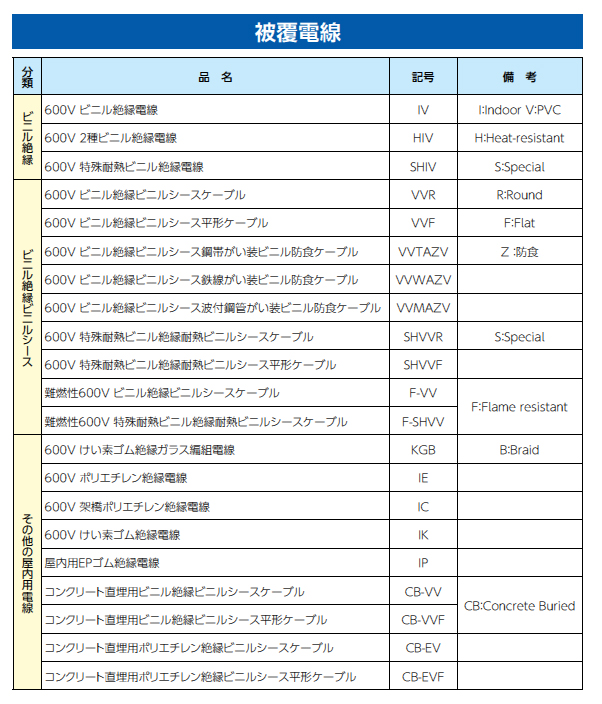

.jpg "商品説明")
Documents
| Others |
|
|---|---|

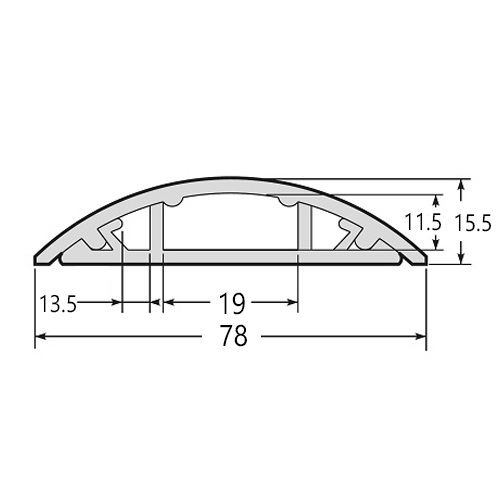

| ESCO dimentional drawing |
|
| Specification |
|
| Catalog |
|
