Product Detail

Item# : EA948AF-24

Description : T-type Male/female Threaded Knob

Spec

Material-Handle: polyamide (glass fiber reinforcement)，Male thread: SUM22L (zinc plating)
Screw	M10 x 30	A	80
B	41	D	20

Additional explanation

Catalog Price (JPY)	¥ 1,170 （Excluding tax）／¥ 1,287（Tax including）
Quantity of stock	Latest stock：12 （2025/05/06 21:15 Currently）
Catalog Page	Page 1253

Relational Items
EA948AF-21 T-type Male/female Threaded Knob
EA948AF-22 T-type Male/female Threaded Knob
EA948AF-23 T-type Male/female Threaded Knob
EA948AF-24 T-type Male/female Threaded Knob
EA948AF-25 T-type Male/female Threaded Knob
EA948AF-31 T-type Male/female Threaded Knob
EA948AF-32 T-type Male/female Threaded Knob
EA948AF-33 T-type Male/female Threaded Knob
EA948AF-34 T-type Male/female Threaded Knob
EA948AF-35 T-type Male/female Threaded Knob
EA948AF-36 T-type Male/female Threaded Knob

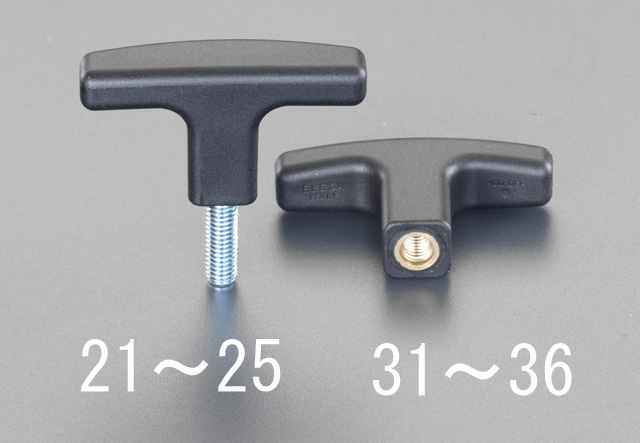

Web catalog image

Prev
Next

Documents

Specification

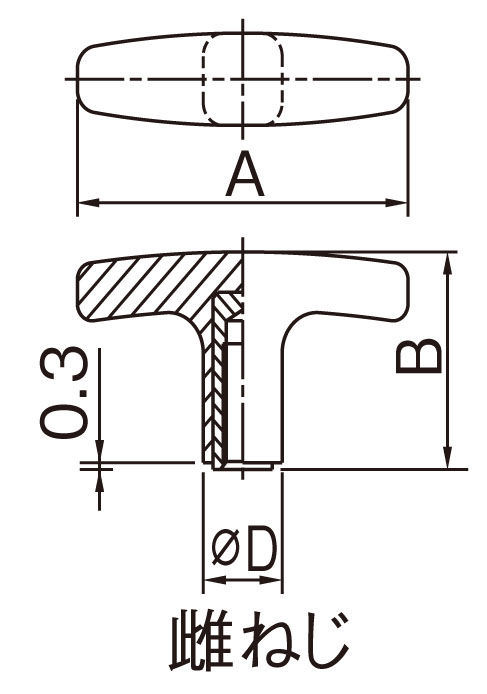

ESCO dimentional drawing

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
