Item# : EA948AK-3

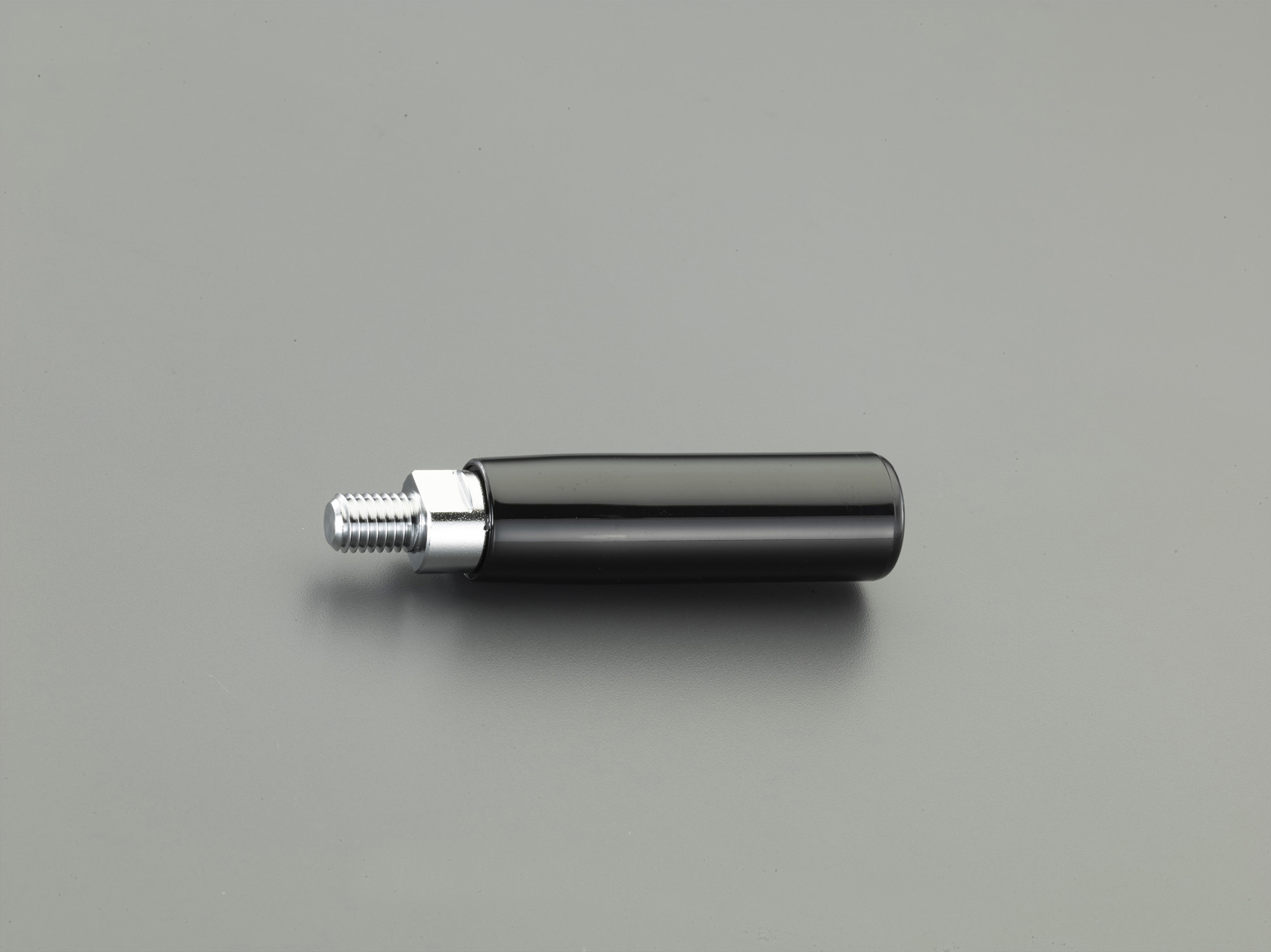

Description : Rotary Handle

Spec

Material Grip ：Polyamide
Shank ：SUM22(Chrome plating)
Rohs-Compliant
size (mm) Screw ：M12×20
D：28
H：107
d：23
Additional explanation
Catalog Price (JPY)

¥ 1,050 （Excluding tax）／¥ 1,155（Tax including）

Quantity of stock

Latest stock：1

（2025/05/10 10:55 Currently）

Update
Catalog Page Page 1257
Relational Items
EA948AK-1 Rotary Handle
EA948AK-2 Rotary Handle
EA948AK-3 Rotary Handle
