Item# : EA948BL-16

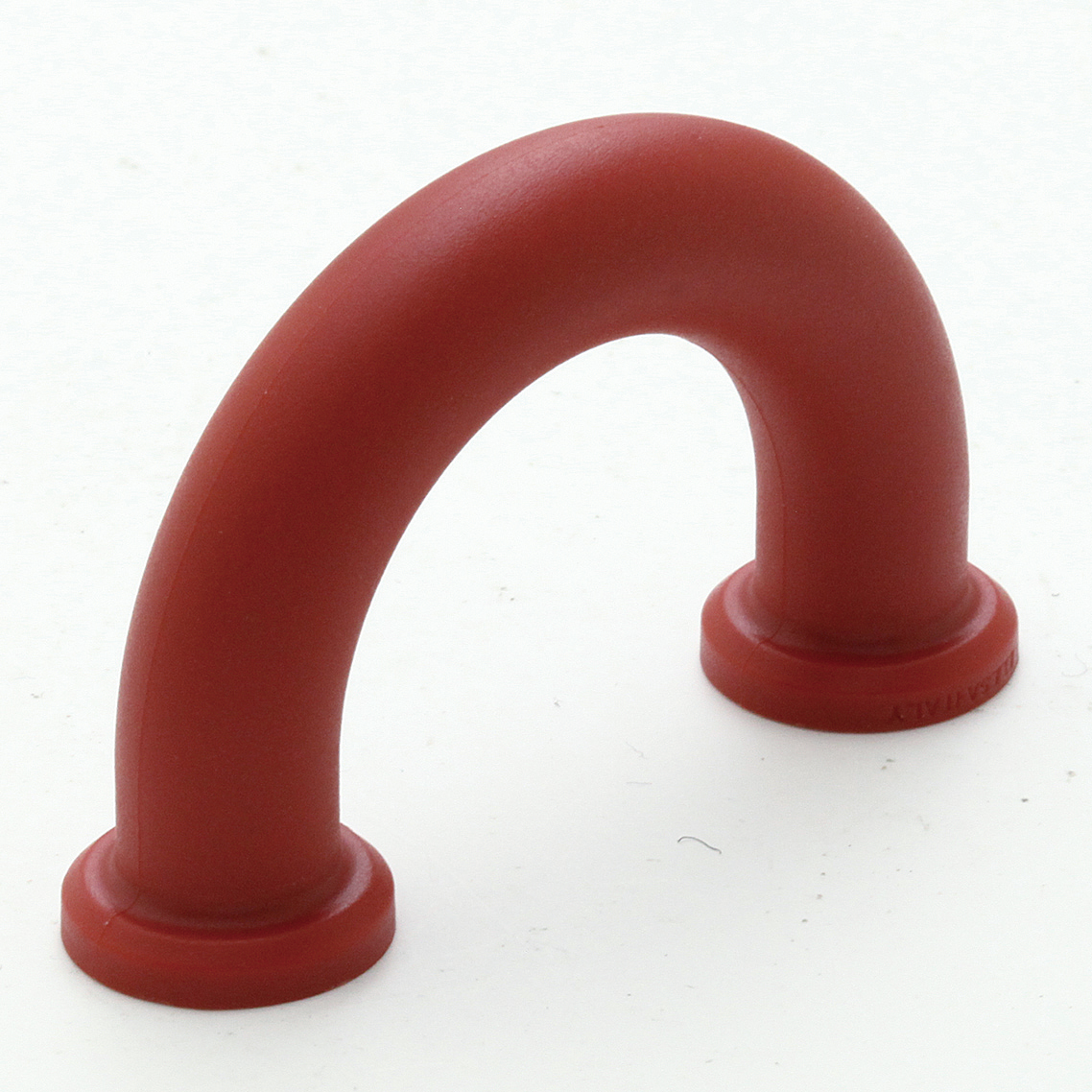

Description : Internal Thread Handle

Spec

Material Polyamide
Rohs-Compliant
Tapping Bis Nominal Dia. 3.5
 size (mm) Between screws ：29.5、
The width ：9、Height ：27
Color Red
Additional explanation
Catalog Price (JPY)

¥ 425 （Excluding tax）／¥ 468（Tax including）

Quantity of stock

Latest stock：4

（2025/11/07 06:02 Currently）

Update
Catalog Page Page 1251
Relational Items
EA948BL-1 Internal Thread Handle
EA948BL-2 Internal Thread Handle
EA948BL-6 Internal Thread Handle
EA948BL-7 Internal Thread Handle
EA948BL-11 Internal Thread Handle
EA948BL-12 Internal Thread Handle
EA948BL-16 Internal Thread Handle
EA948BL-17 Internal Thread Handle
EA948BL-21 Internal Thread Handle
EA948BL-22 Internal Thread Handle
EA948BL-26 Internal Thread Handle
EA948BL-27 Internal Thread Handle

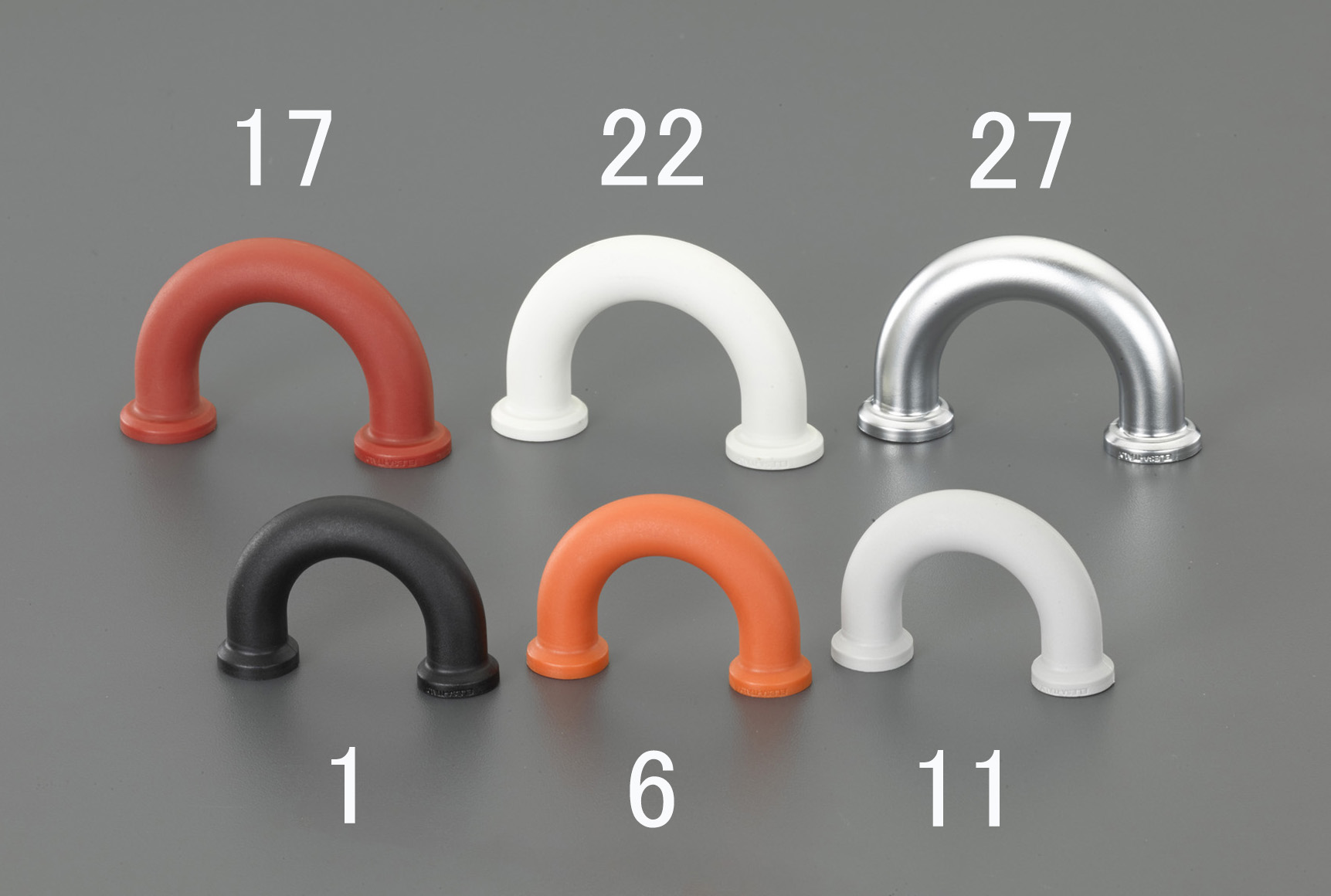

Web catalog image
