Item# : EA948CB-504

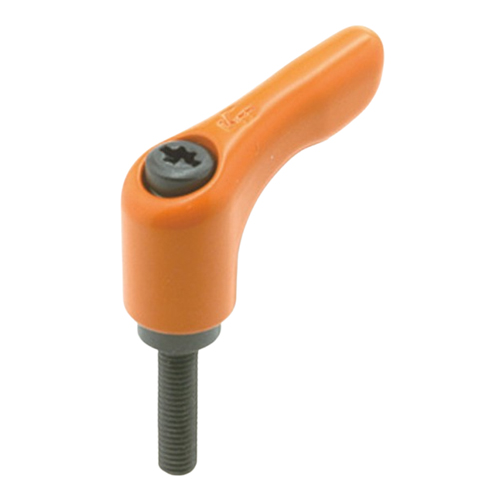

Description : External Thread Mini Clamp Lever

This product is no longer available. Please refer to replacement item below.

Spec

Color Orange
Material Lever ：Ｚinc Die-Cast 、
Screw ：Ferrosoferric oxide coating film (SUM22L)
Rohs-Compliant
size (mm) Screw ：M4×25
A：30
B：30
D：10
Additional explanation
Catalog Price (JPY)

¥ 740 （Excluding tax）／¥ 814（Tax including）

Quantity of stock

Latest stock：0

（2026/03/10 12:43 Currently）

Update
Catalog Page Page 1212
