Product Detail

Item# : EA948CH-101

Description : External Thread Cam Lever （Rotary ）

Spec

Material	Lever ：Aluminum Die-cast (Black Powder Painting )、 Screw ･Washer ：SUM22L(Zinc Trivalent Chromate )、 The thrust Washer ：Polyamide (Glass Fiber Reinforcement )
Rohs-Compliant
size (mm)	Screw ：M5×20 R：70.4 H：22 D：18

Additional explanation

Catalog Price (JPY)	¥ 1,990 （Excluding tax）／¥ 2,189（Tax including）
Quantity of stock	Latest stock：1 （2025/05/10 10:40 Currently）
Catalog Page	Page 1259

Relational Items
EA948CH-101 External Thread Cam Lever （Rotary ）
EA948CH-102 External Thread Cam Lever （Rotary ）
EA948CH-103 External Thread Cam Lever （Rotary ）
EA948CH-104 External Thread Cam Lever （Rotary ）
EA948CH-105 External Thread Cam Lever （Rotary ）
EA948CH-106 External Thread Cam Lever （Rotary ）
EA948CH-107 External Thread Cam Lever （Rotary ）
EA948CH-108 External Thread Cam Lever （Rotary ）
EA948CH-109 External Thread Cam Lever （Rotary ）
EA948CH-110 External Thread Cam Lever （Rotary ）
EA948CH-111 External Thread Cam Lever （Rotary ）
EA948CH-112 External Thread Cam Lever （Rotary ）
EA948CH-113 External Thread Cam Lever （Rotary ）
EA948CH-114 External Thread Cam Lever （Rotary ）
EA948CH-115 External Thread Cam Lever （Rotary ）
EA948CH-116 External Thread Cam Lever （Rotary ）

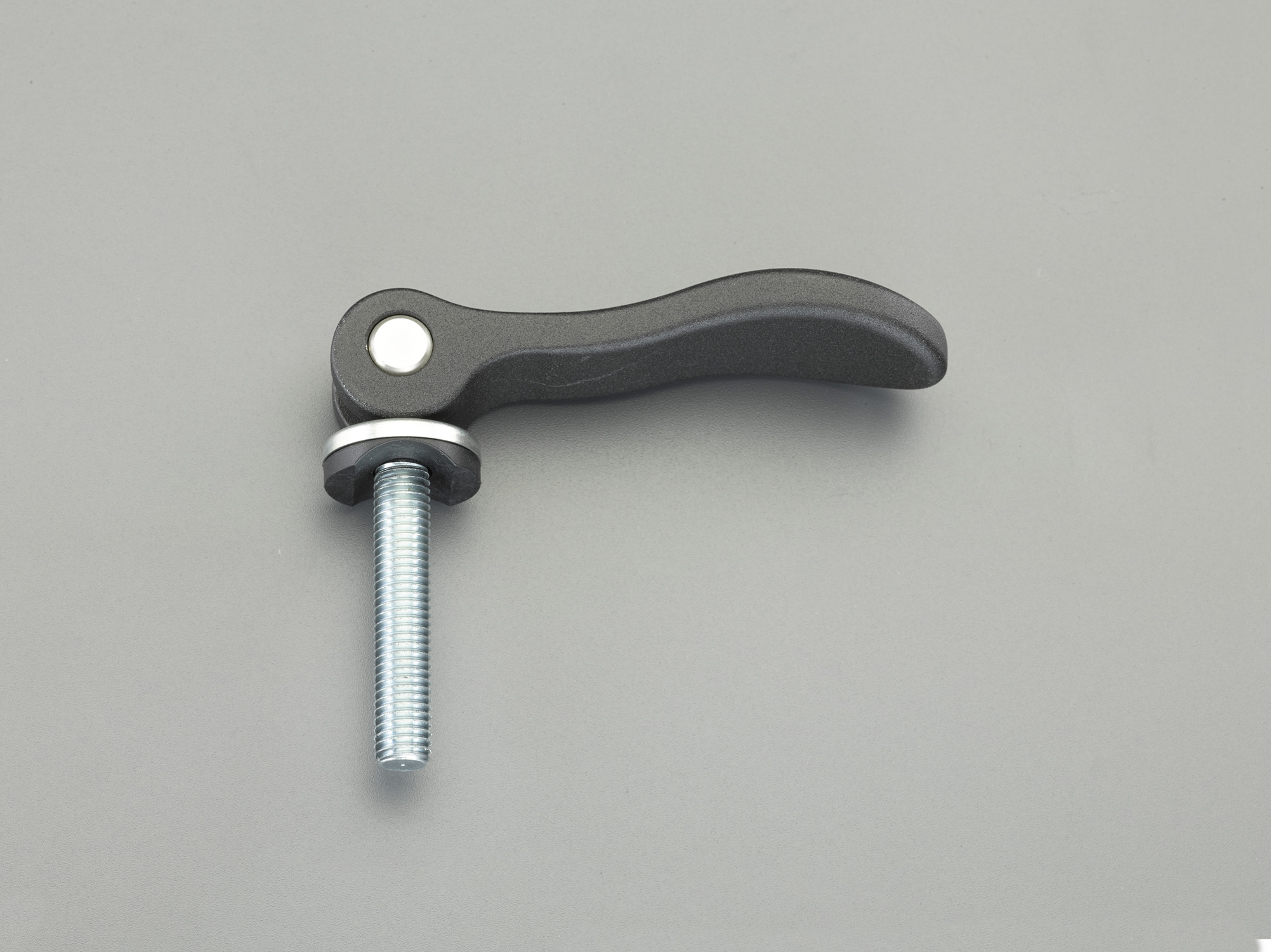

Web catalog image

Prev
Next

Documents

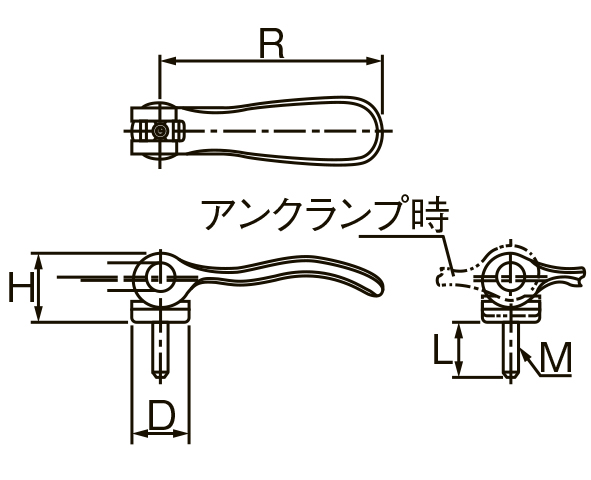

ESCO dimentional drawing

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
