Product Detail

Item# : EA948DA-54

Description : [Heavy Load] Short Plunger

Material: steel， Process: blackening
Center pin material-Steel
For heavy load
A	M8	B	4
C	16	D	2
Pressure (N)Min to Max	15 to 30

Additional explanation

Relational Items
EA948DA-52 [Heavy Load] Short Plunger
EA948DA-53 [Heavy Load] Short Plunger
EA948DA-54 [Heavy Load] Short Plunger
EA948DA-55 [Heavy Load] Short Plunger
EA948DA-56 [Heavy Load] Short Plunger
EA948DA-57 [Heavy Load] Short Plunger
EA948DA-58 [Heavy Load] Short Plunger

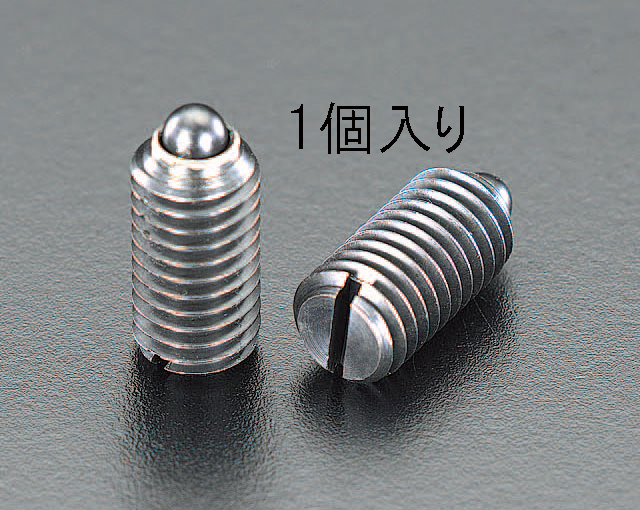

Web catalog image

Specification

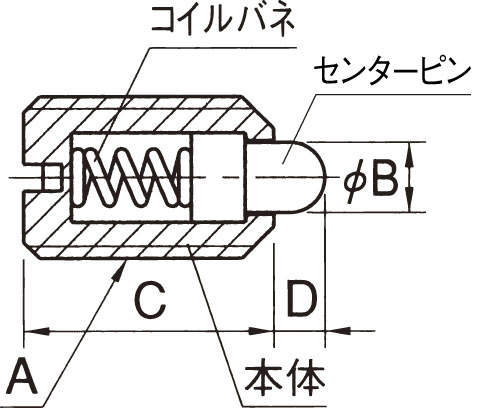

ESCO dimentional drawing

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
