Item# : EA948DB-104

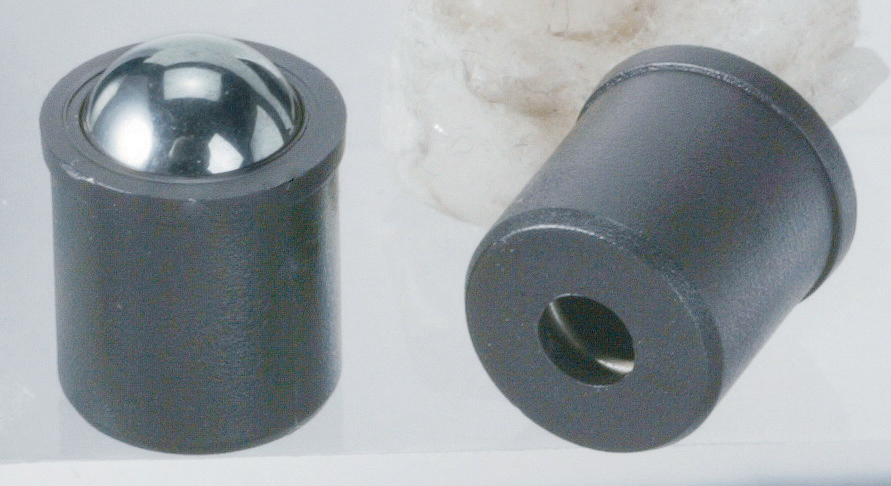

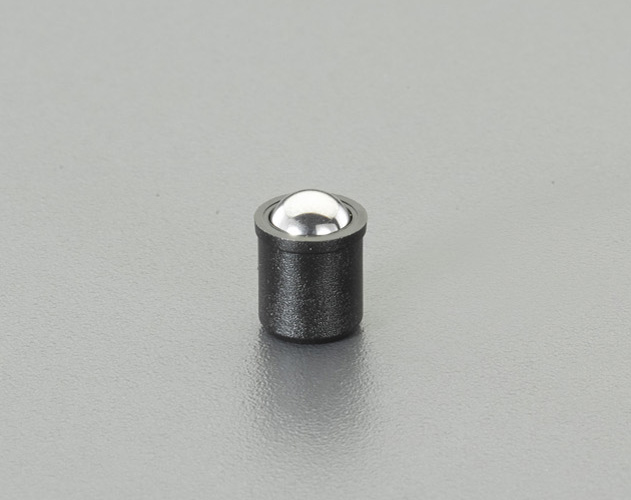

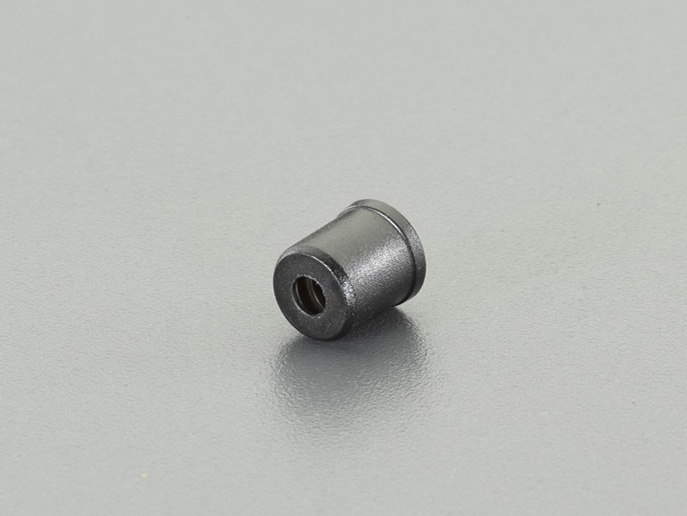

Description : ［Insertion Type］Ball Plunger （Resin Case ）

Spec

Body Material Polyacetal
Ball Material SUS420
Plug type of resin case
Please fix with adhesive to stop it.
RoHS-Compliant
Size (mm) A：8 B：6.5
C：9 D：1.8
E：8.5
 Minimum to Max. Pressure (N) 6 to 12
Additional explanation
Catalog Price (JPY)

¥ 195 （Excluding tax）／¥ 215（Tax including）

Quantity of stock

Latest stock：5

（2025/11/18 20:13 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-101 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-102 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-103 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-104 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-105 ［Insertion Type］Ball Plunger （Resin Case ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

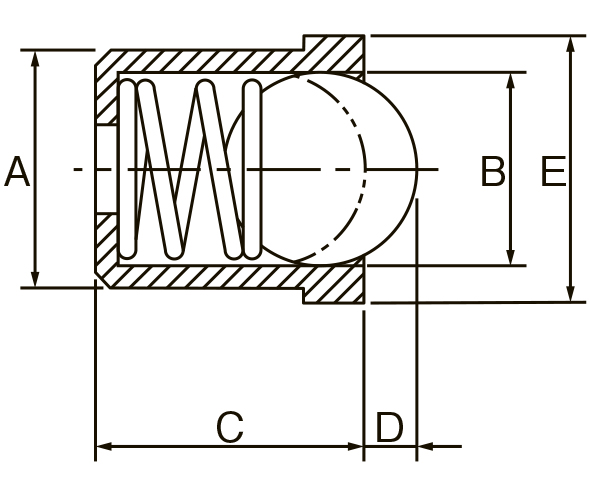

ESCO dimentional drawing
