Item# : EA948DB-115

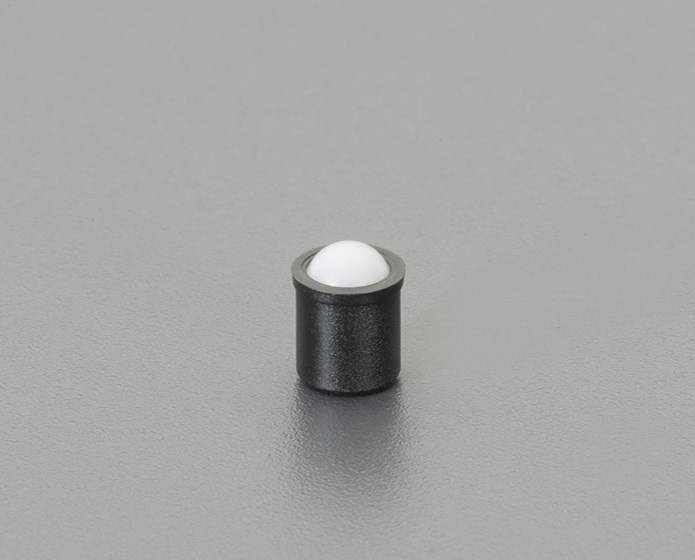

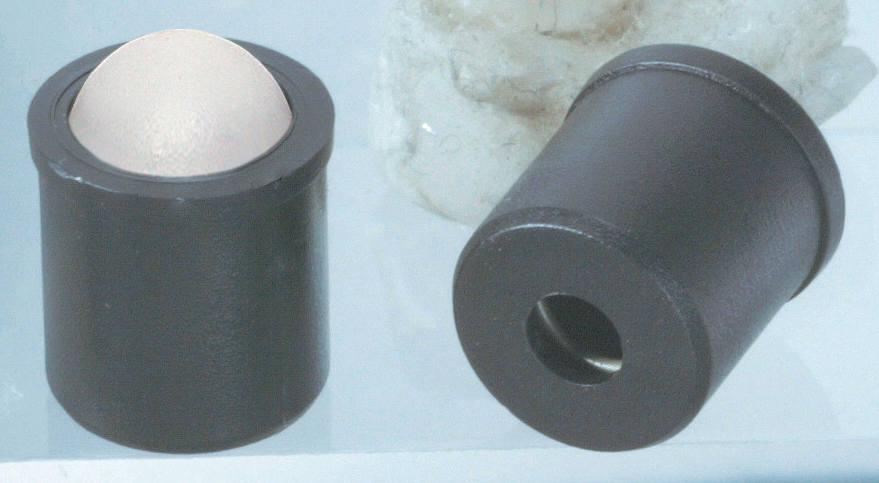

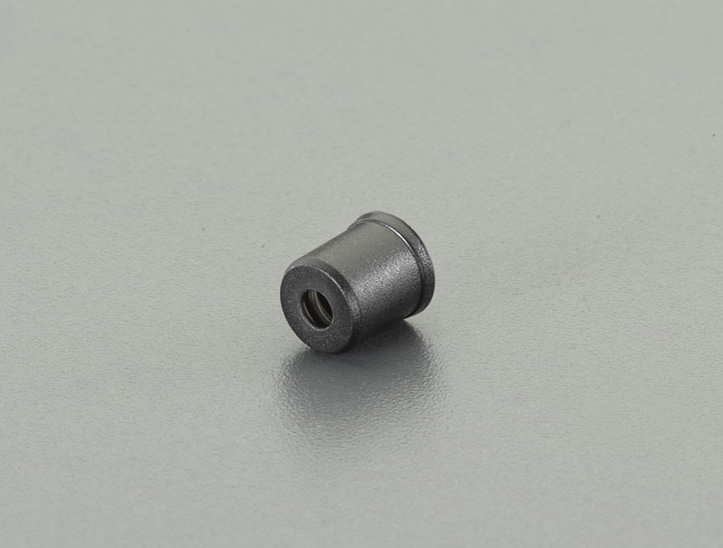

Description : ［Insertion Type］Ball Plunger （Resin Case ）

Spec

Body ・Ball Material Polyacetal
Plug type of resin case
Please fix with adhesive to stop it.
RoHS-Compliant
Size (mm) A：10 B：8
C：13.5 D：2.7
E：12
 Minimum to Max. Pressure (N) 10 to 20
Additional explanation
Catalog Price (JPY)

¥ 460 （Excluding tax）／¥ 506（Tax including）

Quantity of stock

Latest stock：9

（2025/05/10 16:32 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-111 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-112 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-113 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-114 ［Insertion Type］Ball Plunger （Resin Case ）
EA948DB-115 ［Insertion Type］Ball Plunger （Resin Case ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

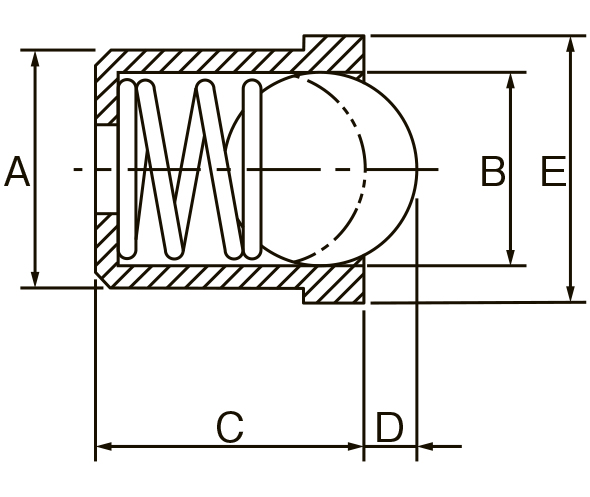

ESCO dimentional drawing
