Item# : EA948DB-136

Description : ［Insertion Type］Ball Plunger （SUS Case ）

Spec

Body Material SUS303
 Ball Material Polyacetal
For light load
Plug type of stainless steel case.
Please fix with adhesive to stop it.
RoHS-Compliant
Size (mm) A：12 B：10
C：16 D：3.1
E：14
 Minimum to Max. Pressure (N) 15 to 25
Additional explanation
Catalog Price (JPY)

¥ 765 （Excluding tax）／¥ 842（Tax including）

Quantity of stock

Latest stock：9

（2025/05/10 10:42 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-131 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-132 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-133 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-134 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-135 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-136 ［Insertion Type］Ball Plunger （SUS Case ）

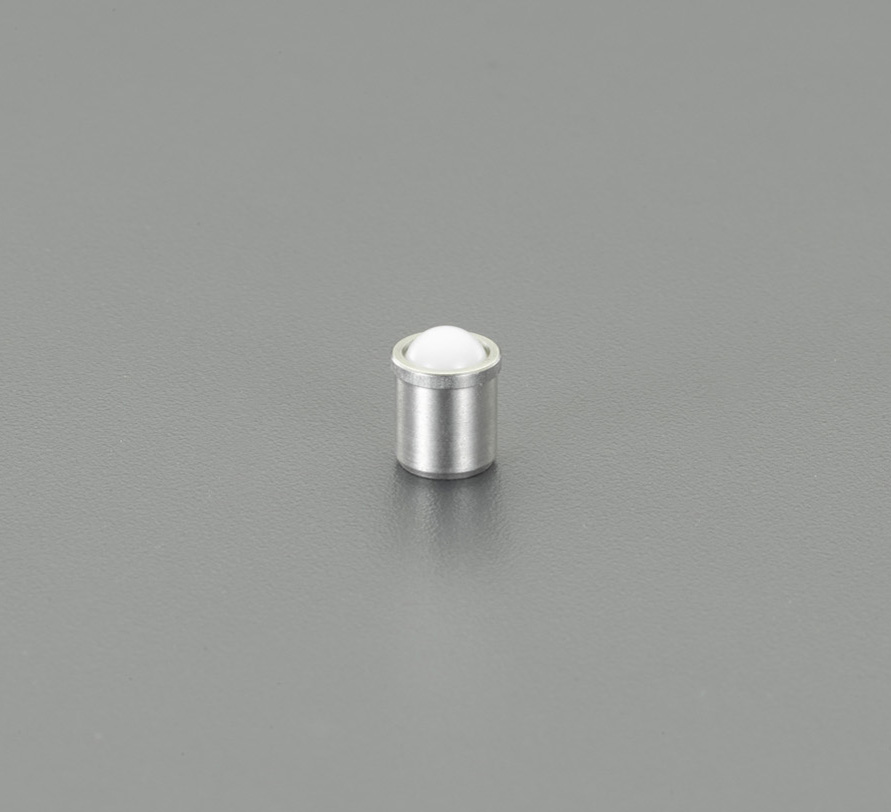

Web catalog image
Expanding
  • Prev
  • Next

Documents

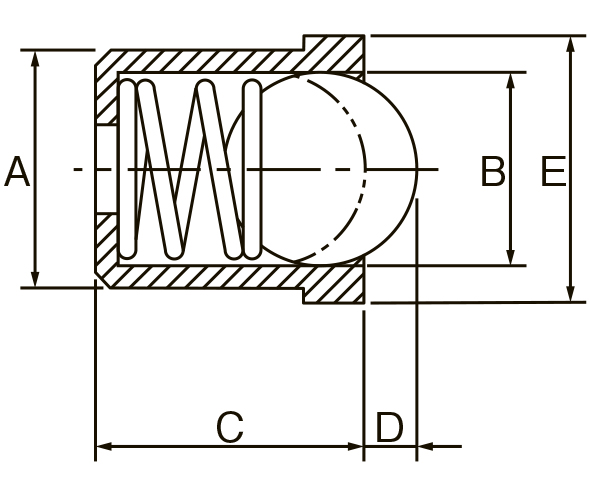

ESCO dimentional drawing
