Item# : EA948DB-17

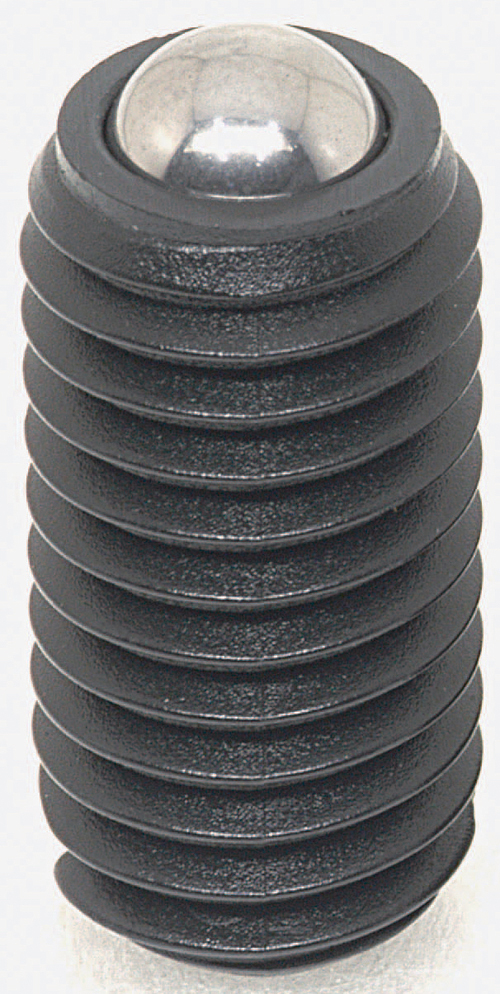

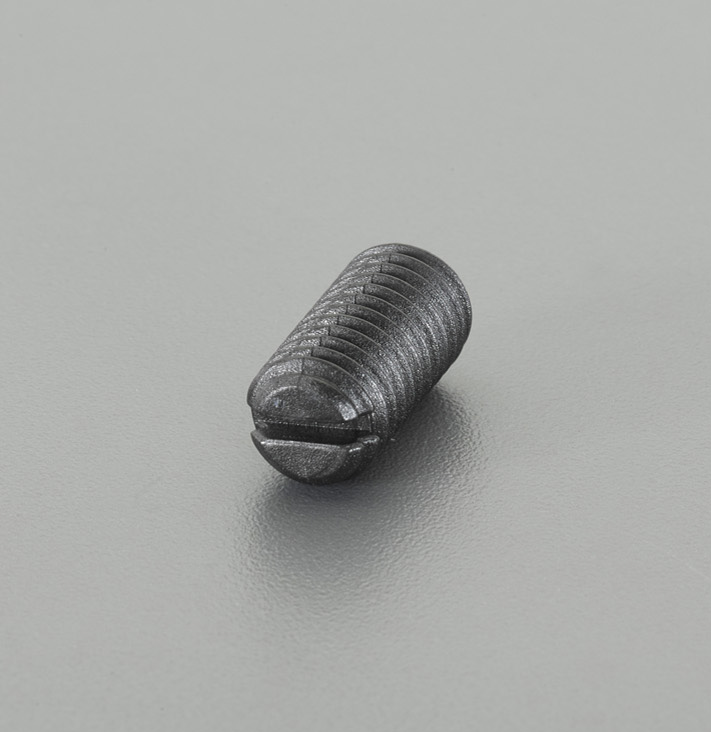

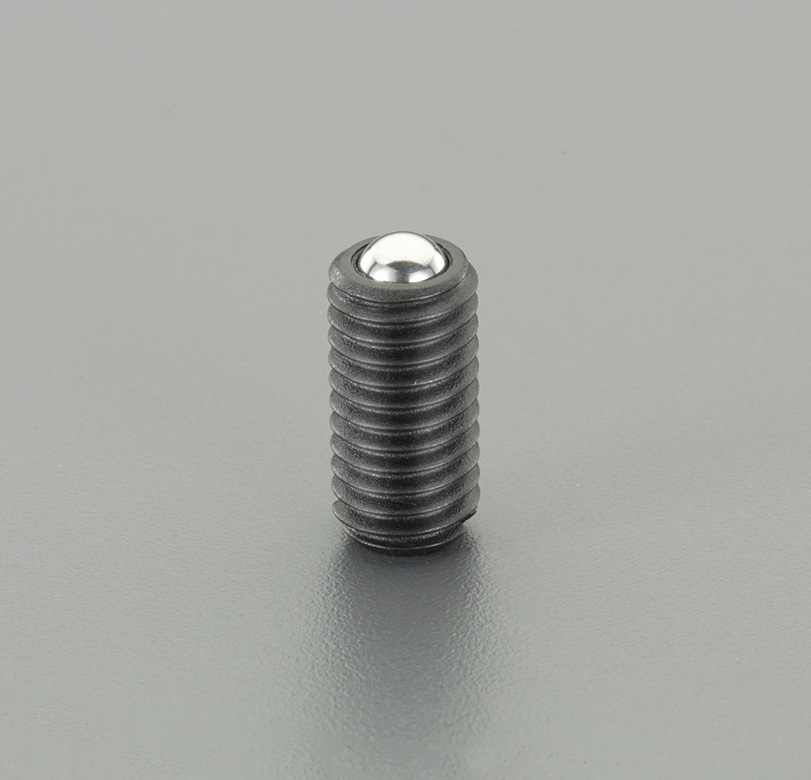

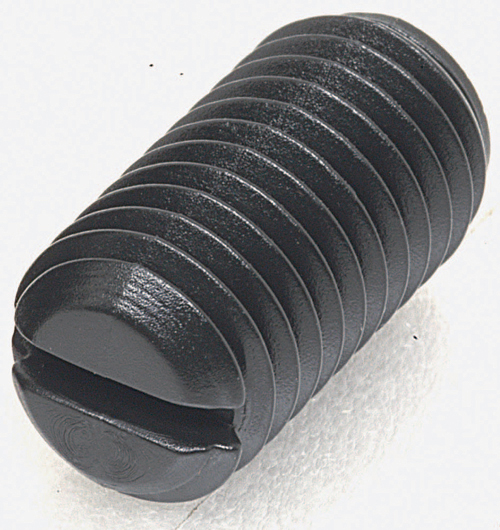

Description : Plastic Ball Plunger

Spec

Body Material Derlin (Polyacetal )
 Ball Material SUS420
Heat 90℃
Electrical resistance properties (Body )
Rohs-Compliant

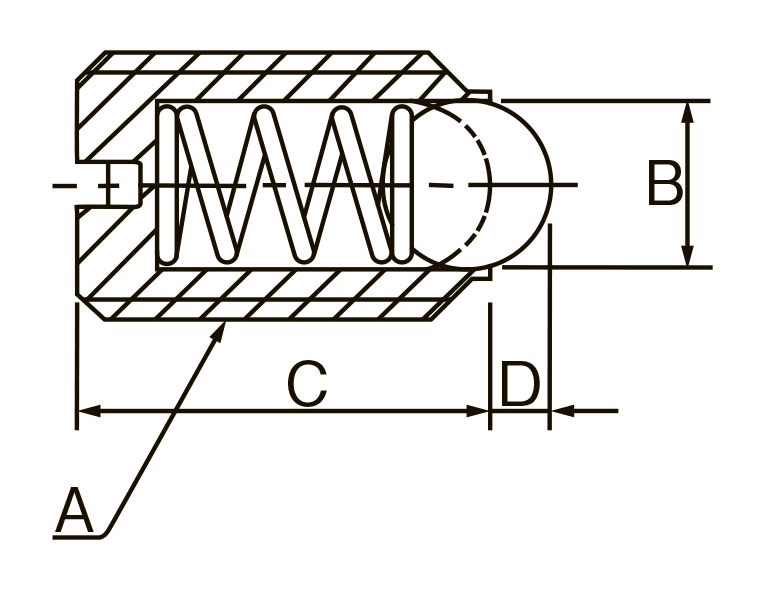

size (mm) A：M8、B：5、
C：16、D：1.5
 Minimum ～Max. Pressure (N) 15～30
Additional explanation
Catalog Price (JPY)

¥ 485 （Excluding tax）／¥ 534（Tax including）

Quantity of stock

Latest stock：5

（2025/05/10 13:30 Currently）

Update
Catalog Page Page 1260
Relational Items
EA948DB-16 Plastic Ball Plunger
EA948DB-17 Plastic Ball Plunger
EA948DB-18 Plastic Ball Plunger
Web catalog image
Expanding
  • Prev
  • Next

Documents

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
