Item# : EA948DB-47

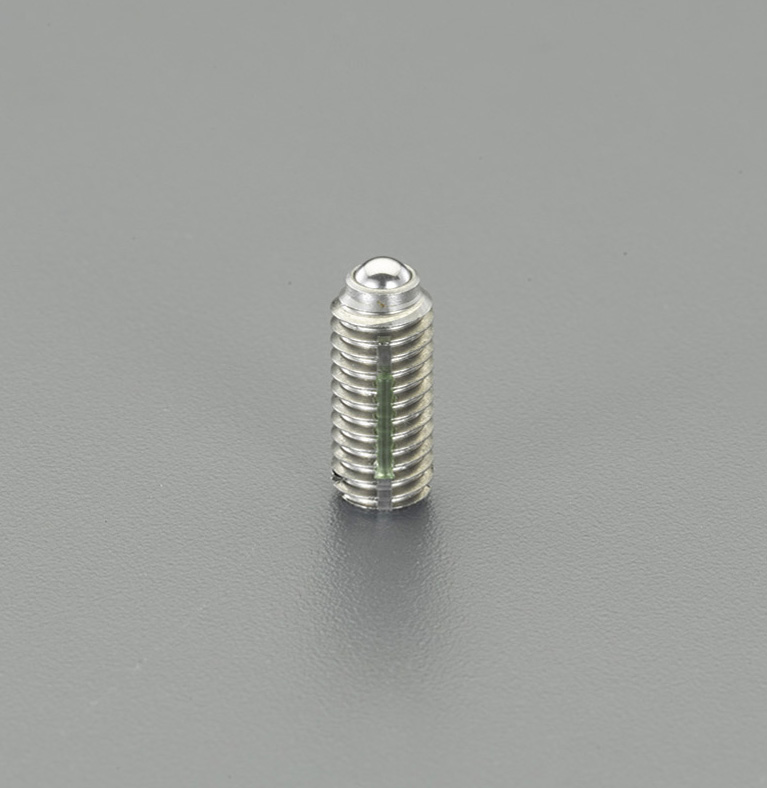

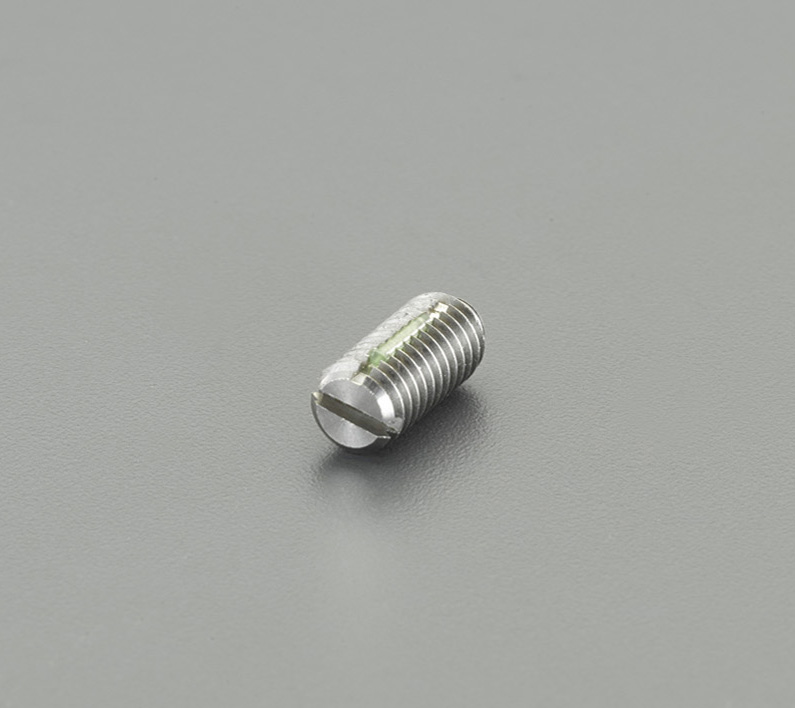

Description : Light Load Ball Plunger（With Long Lock ）

Spec

Body Material SUS303
 Ball Material SUS420
The light load For
Long Lock (Loose prevention)Adapted
Rohs-Compliant
size (mm) A：M12、B：8、
C：22、D：2.5
 Minimum to Max. Pressure (N) 30 to 55
Additional explanation
Catalog Price (JPY)

¥ 2,920 （Excluding tax）／¥ 3,212（Tax including）

Quantity of stock

Latest stock：10

（2025/12/12 15:20 Currently）

Update
Catalog Page Page 1260
Relational Items
EA948DB-41 Light Load Ball Plunger（With Long Lock ）
EA948DB-42 Light Load Ball Plunger（With Long Lock ）
EA948DB-43 Light Load Ball Plunger（With Long Lock ）
EA948DB-44 Light Load Ball Plunger（With Long Lock ）
EA948DB-45 Light Load Ball Plunger（With Long Lock ）
EA948DB-46 Light Load Ball Plunger（With Long Lock ）
EA948DB-47 Light Load Ball Plunger（With Long Lock ）
EA948DB-48 Light Load Ball Plunger（With Long Lock ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

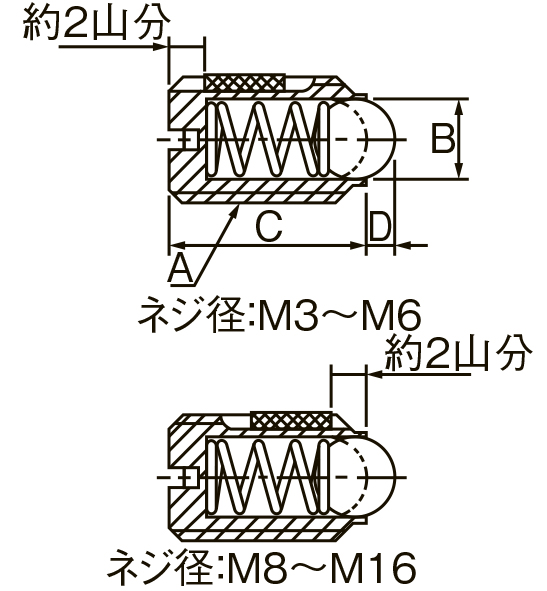

ESCO dimentional drawing
