Item# : EA948DD-114

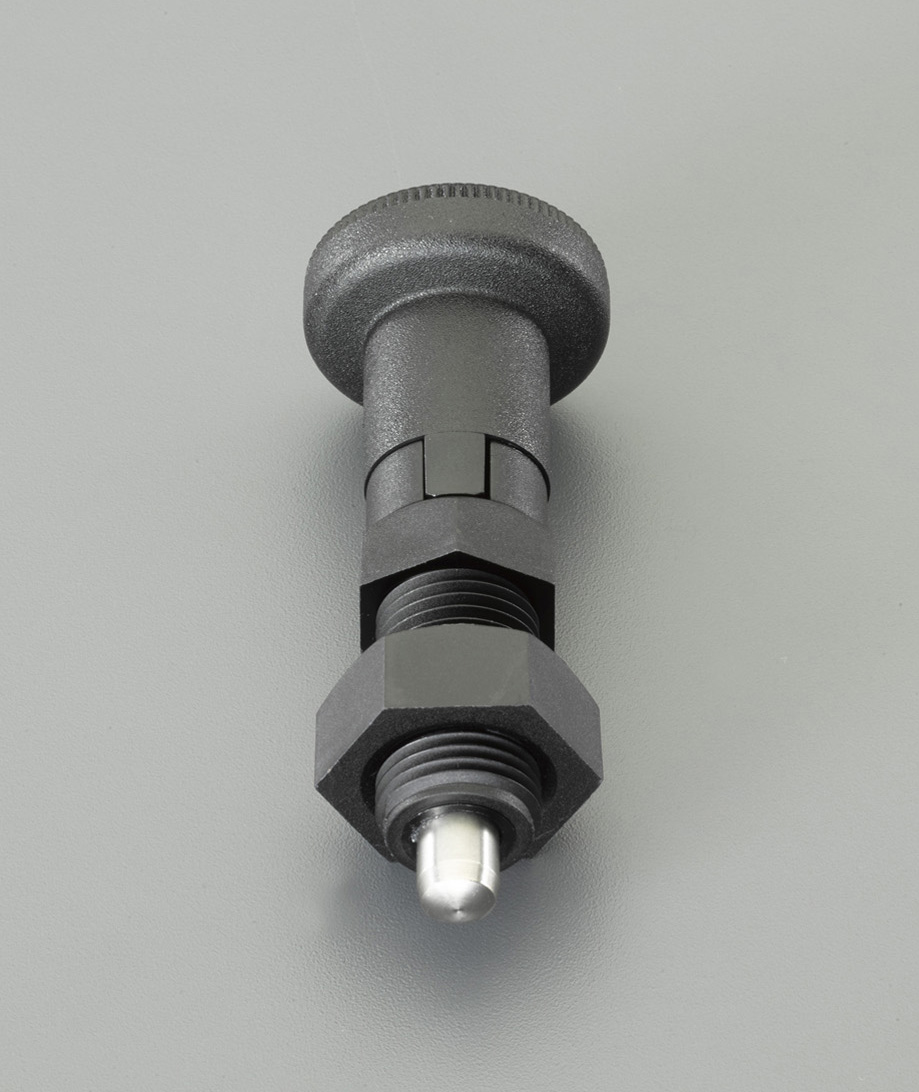

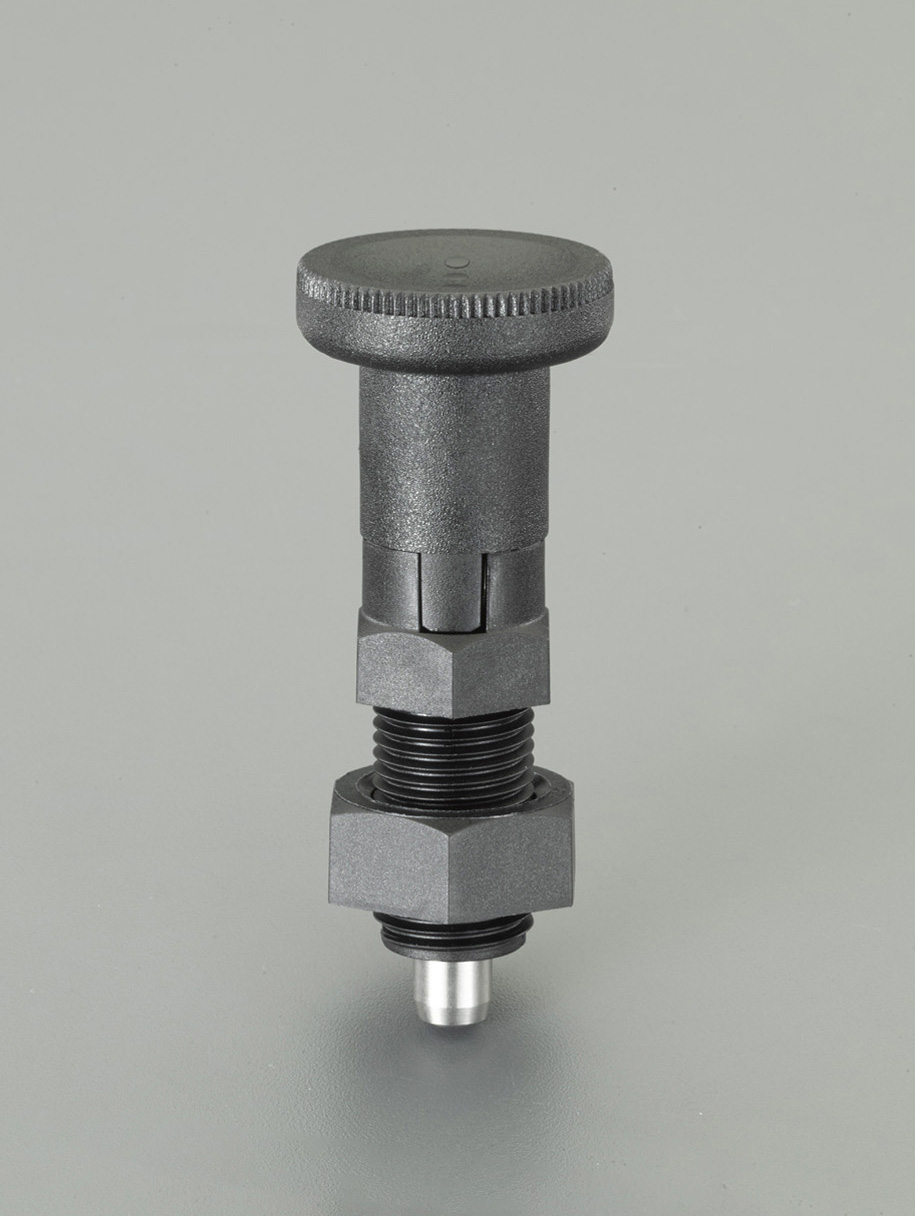

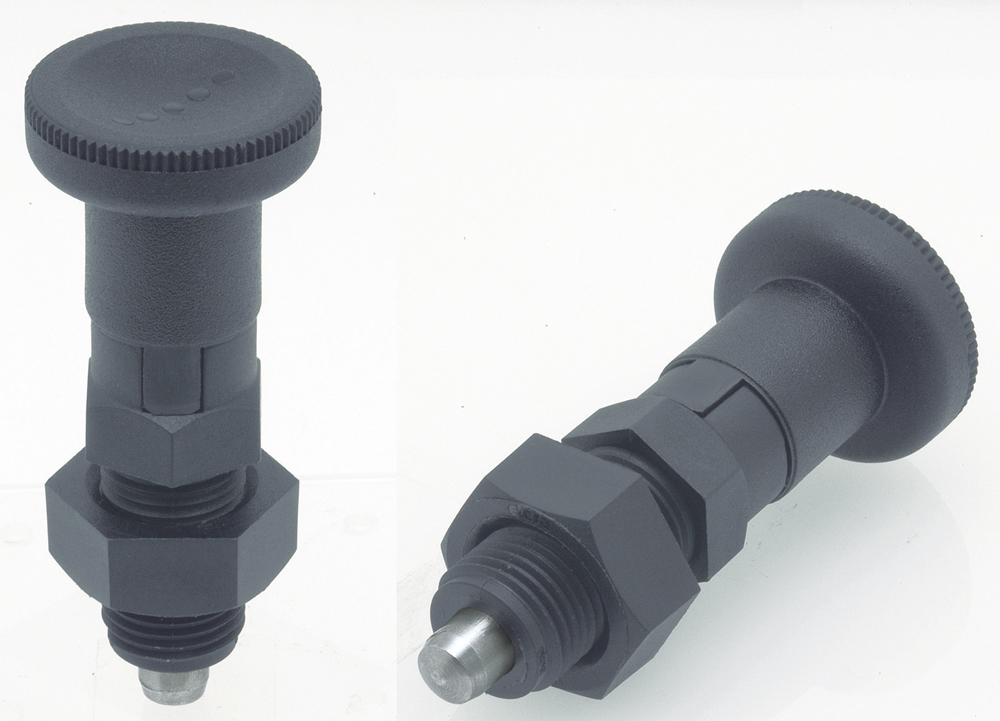

Description : ［Nose Lock Type］Index Plunger（Double Nut ）

Spec

Material Body ・ Knob：Polyamide
Nose ：SUS303

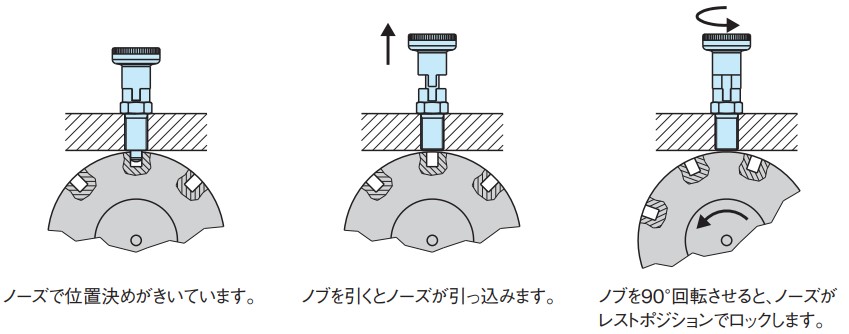

 Nose Lock Turning the plunger by 90 degrees while pulling the knob can lock it under the state where the nose has been pulled.
The positioning can be easily cancelled since the nose will lift in conjunction with knob pulling.
Double Nut
Rohs-Compliant
Size (mm) A：10、B：M20、
C：31、D：91、
K：30
Additional explanation
Catalog Price (JPY)

¥ 2,310 （Excluding tax）／¥ 2,541（Tax including）

Quantity of stock

Latest stock：2

（2025/05/10 19:26 Currently）

Update
Catalog Page Page 1262
Relational Items
EA948DD-111 ［Nose Lock Type］Index Plunger（Double Nut ）
EA948DD-112 ［Nose Lock Type］Index Plunger（Double Nut ）
EA948DD-113 ［Nose Lock Type］Index Plunger（Double Nut ）
EA948DD-114 ［Nose Lock Type］Index Plunger（Double Nut ）
