Item# : EA948DD-22

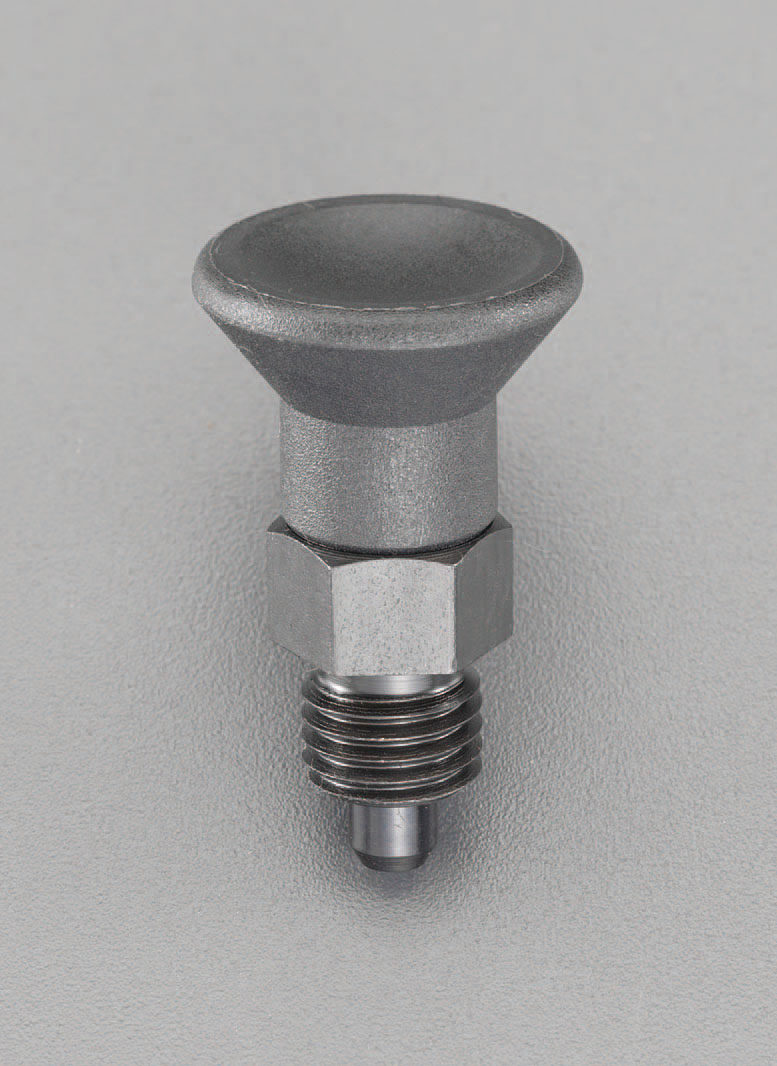

Description : Index Plunger [Single Nut]

Spec

Short type
Body material Steel SUM22L
 A 6
B M12
 C 25
D 41.7
 J 14
Additional explanation
Catalog Price (JPY)

¥ 1,760 （Excluding tax）／¥ 1,936（Tax including）

Quantity of stock

Latest stock：10

（2024/05/17 01:23 Currently）

Update
Catalog Page Page 1277
Relational Items
EA948DD-21 Index Plunger [Single Nut]
EA948DD-22 Index Plunger [Single Nut]
EA948DD-23 Index Plunger [Single Nut]
EA948DD-24 Index Plunger [Single Nut]
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF
ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
