Product Detail

Item# : EA951EE-320

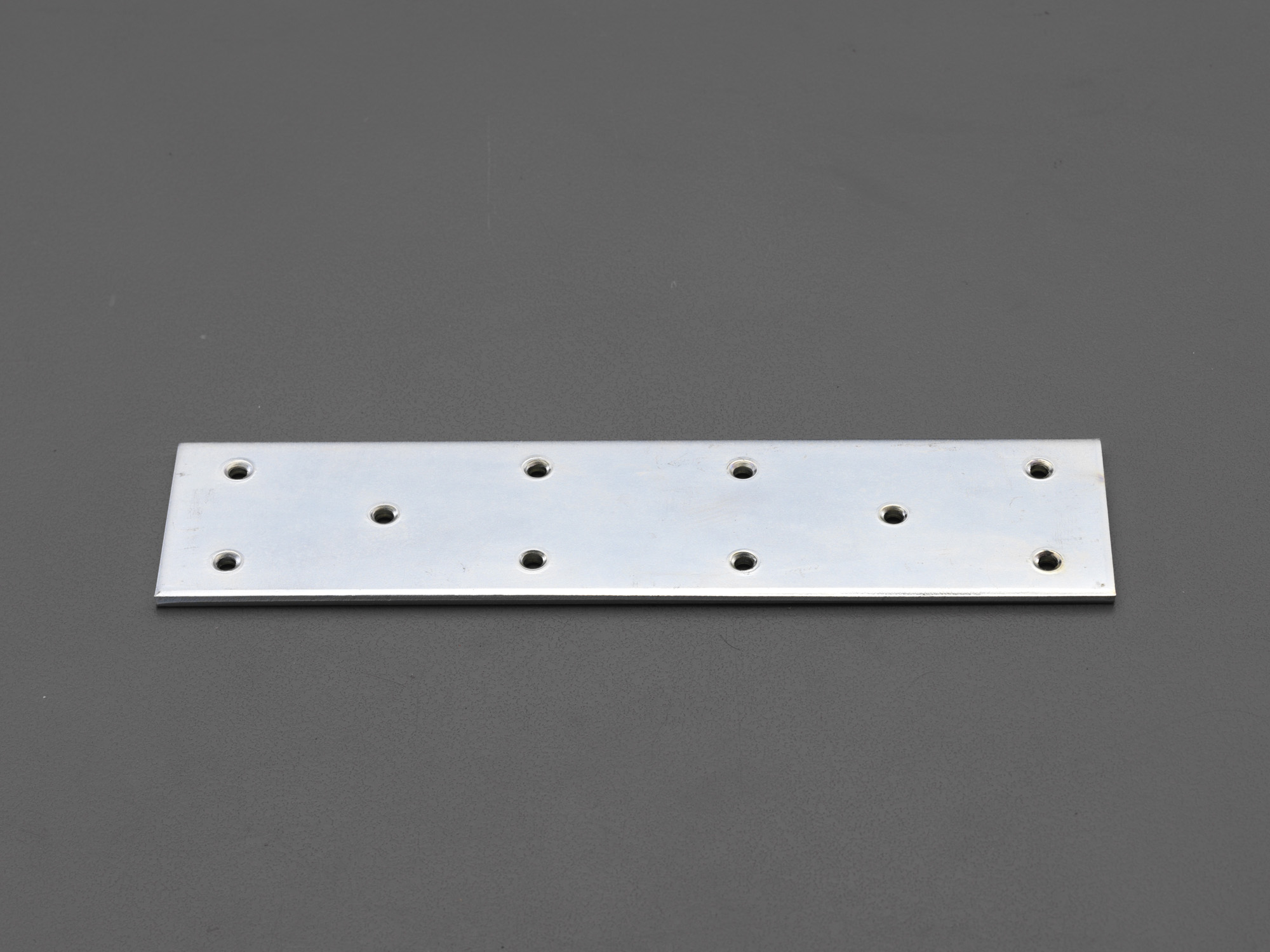

Description : Wide Plate(Steel)

Material-Steel(unichrome plating)
Hole dia.-4.5mm
Only EE-330 and -340 have 2 oblong holes (11 x 23mm) respectively.
Length-200
Width-60mm
Thickness-4.5mm
Number of holes-6

Additional explanation

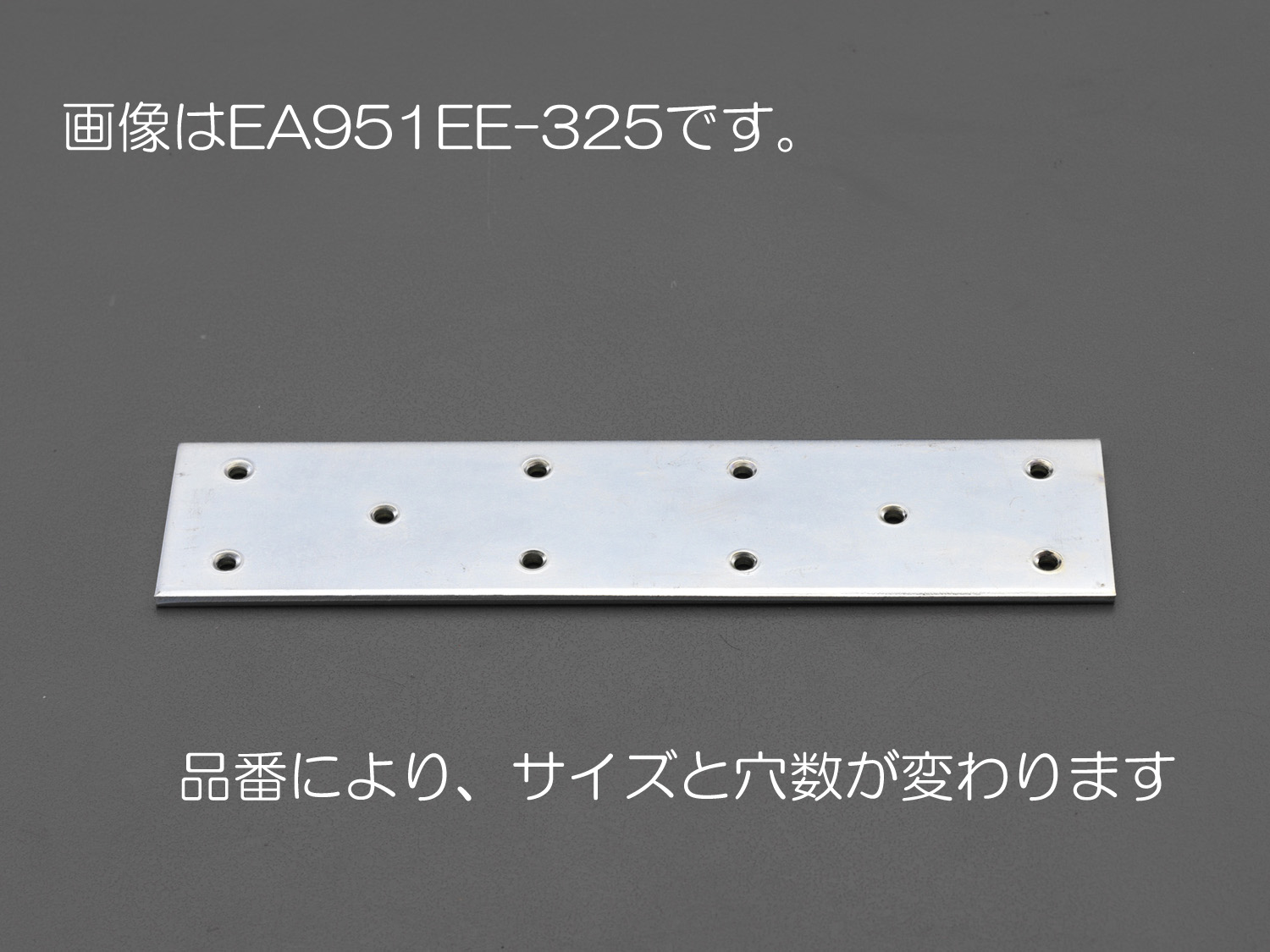

Web catalog image

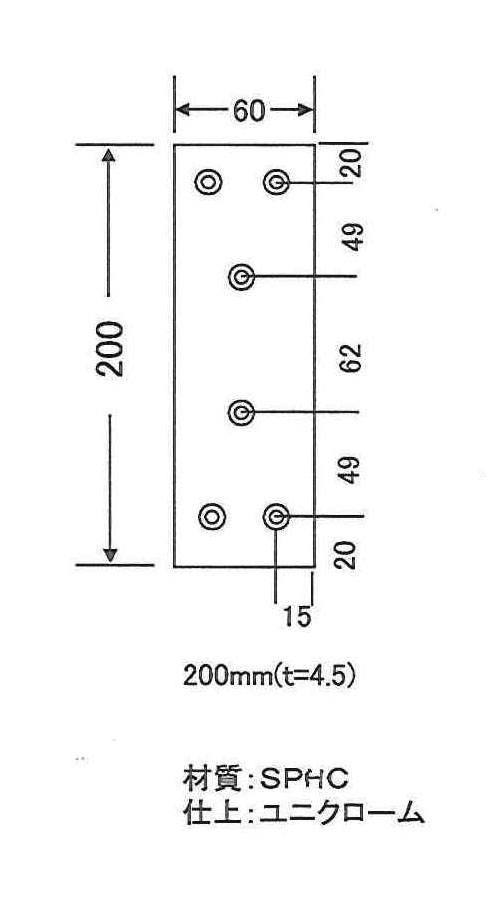

ESCO dimentional drawing

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
