Item# : EA966DZ-2

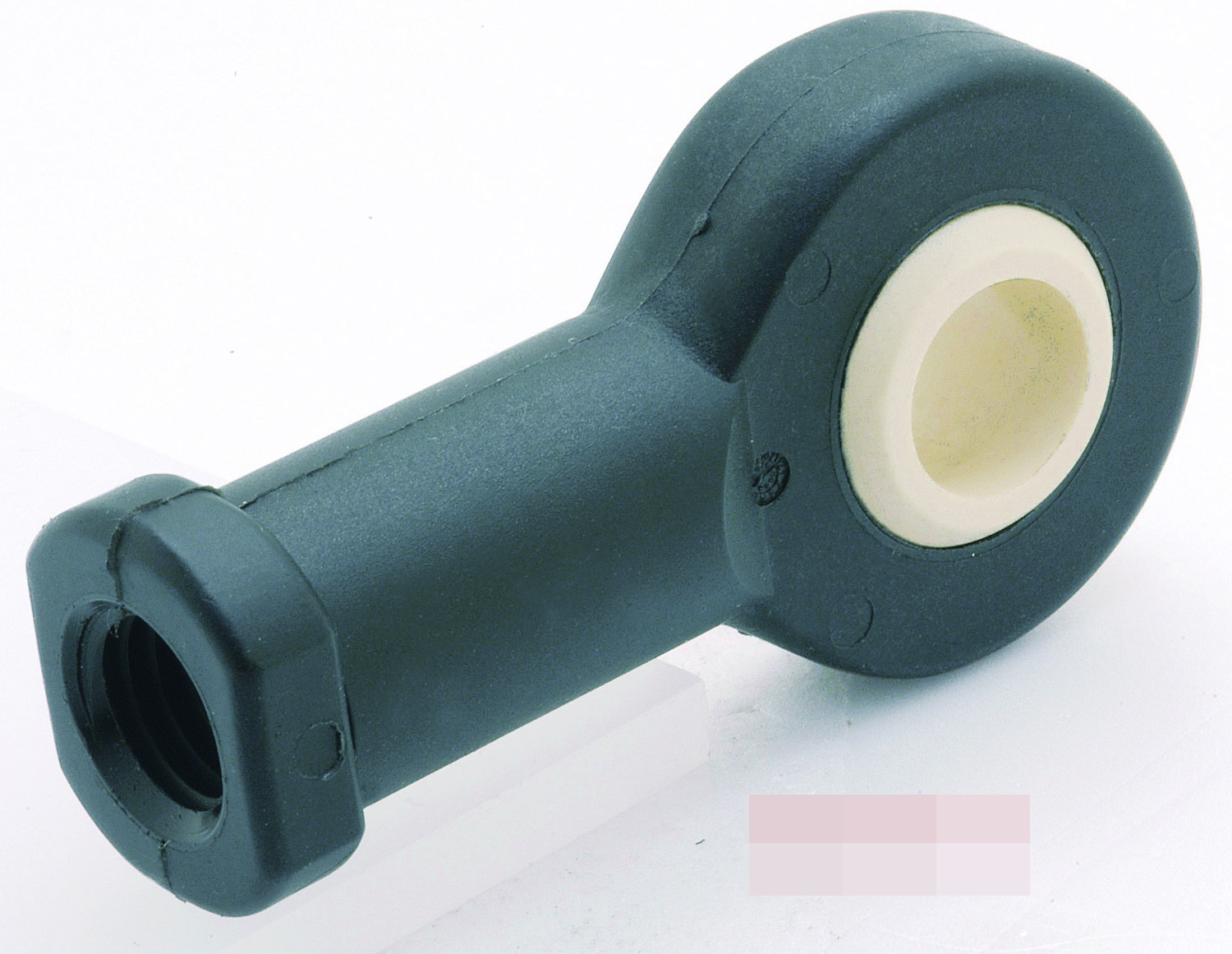

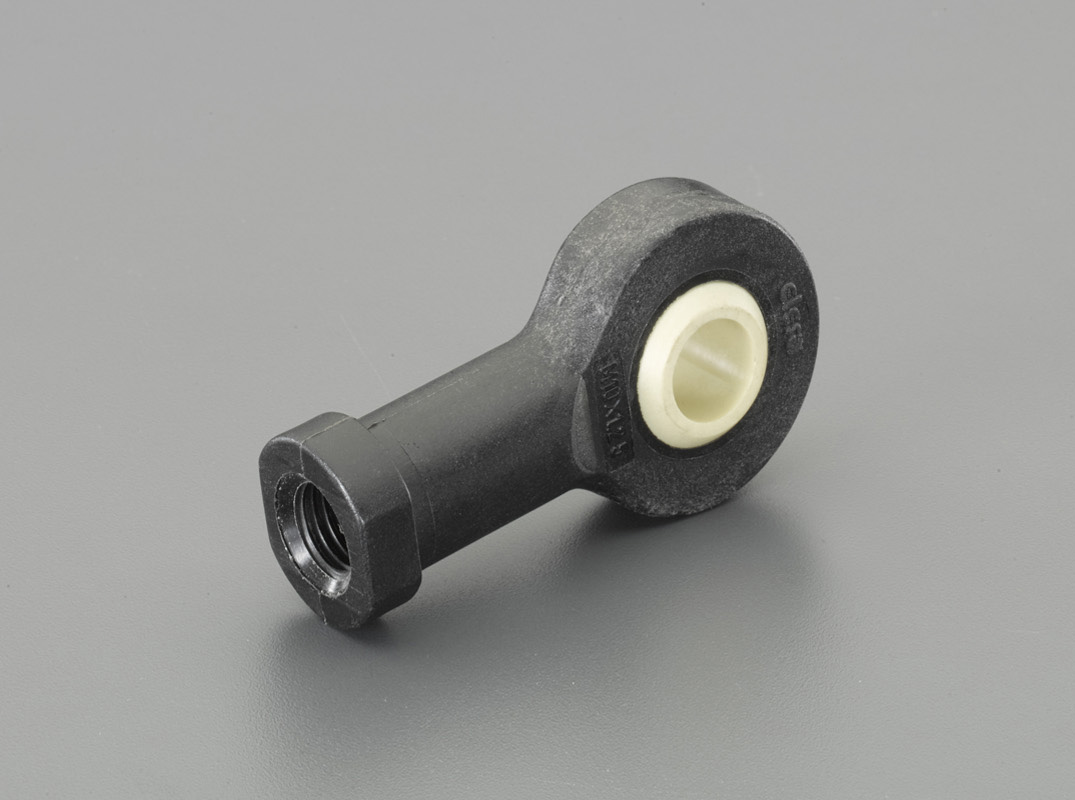

Description : Internal Thread Rod End （Resin ）

Spec

The right Screw
Material Housing ：Polyamide
Ball ：Polyamide
Rohs-Compliant
Screw M8

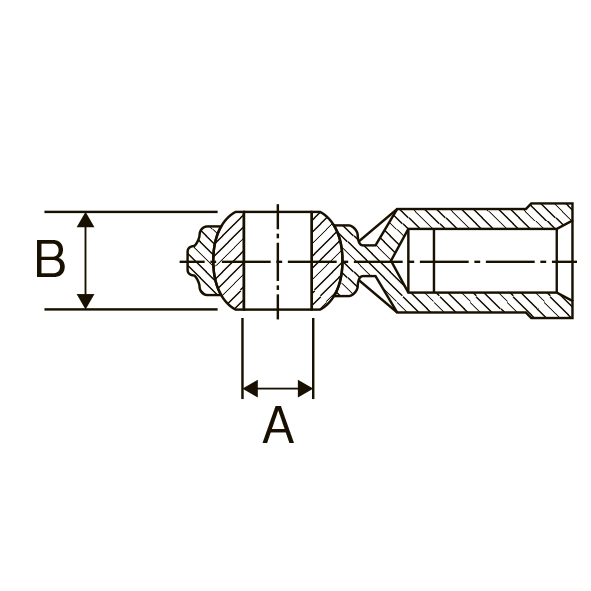

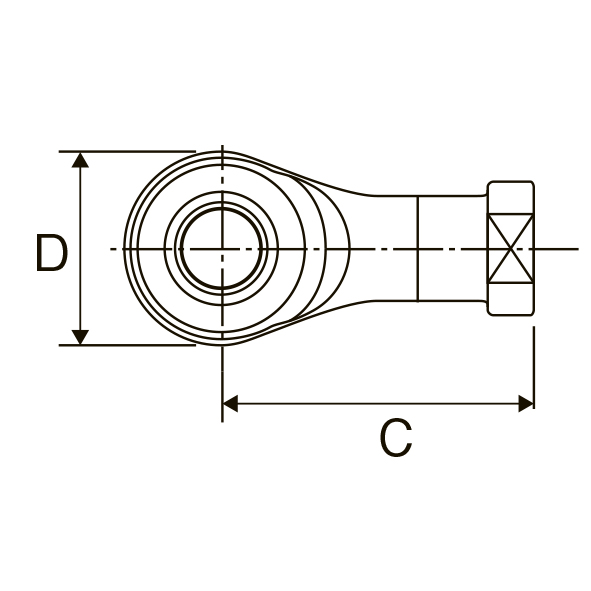

 size (mm) A：8、B：12、
C：36、D：24
Additional explanation
Catalog Price (JPY)

¥ 920 （Excluding tax）／¥ 1,012（Tax including）

Quantity of stock

Latest stock：4

（2025/11/19 05:02 Currently）

Update
Catalog Page Page 1269
Relational Items
EA966DZ-1 Internal Thread Rod End （Resin ）
EA966DZ-2 Internal Thread Rod End （Resin ）
EA966DZ-3 Internal Thread Rod End （Resin ）
EA966DZ-4 Internal Thread Rod End （Resin ）
EA966DZ-6 Internal Thread Rod End （Resin ）
EA966DZ-7 Internal Thread Rod End （Resin ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF
ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
