Item# : EA986JB-1

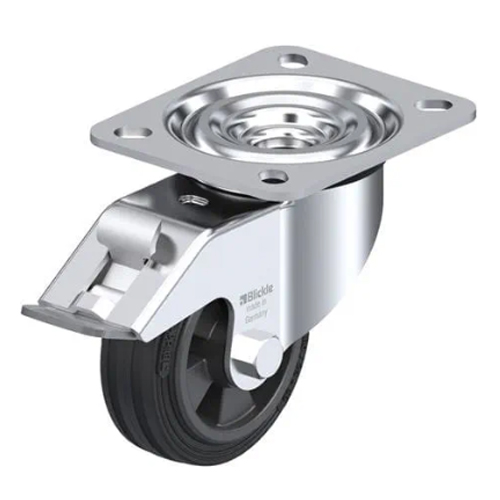

Description : Swivel Caster (with Brake)

Spec

Roller bearing
Heat-proof temperature: -20 to 60℃
Material-Fitting: steel， Wheel: solid rubber

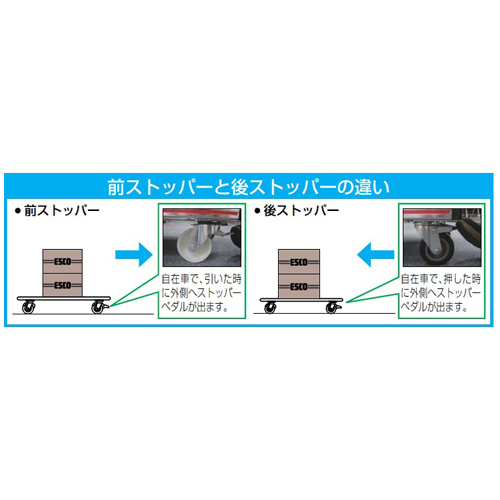

Spec. Swivelrear brake
 Wheel dia. x W 80 x 25mm
Load capacity 50kg
 Overall height 102mm
Additional explanation
Catalog Price (JPY)

¥ 5,680 （Excluding tax）／¥ 6,248（Tax including）

Quantity of stock

Latest stock：10

（2025/05/03 20:22 Currently）

Update
Catalog Page Page 1737
Relational Items
EA986JC-80 Swivel Caster (with Brake)
EA986JC-100 Swivel Caster (with Brake)
EA986JC-125 Swivel Caster (with Brake)
EA986JC-160 Swivel Caster (with Brake)
EA986JC-200 Swivel Caster (with Brake)
EA986JB-1 Swivel Caster (with Brake)
EA986JB-2 Swivel Caster (with Brake)
EA986JB-3 Swivel Caster (with Brake)
EA986JB-4 Swivel Caster (with Brake)
EA986JB-5 Swivel Caster (with Brake)
Main image
Expanding
  • Prev
  • Next

Documents

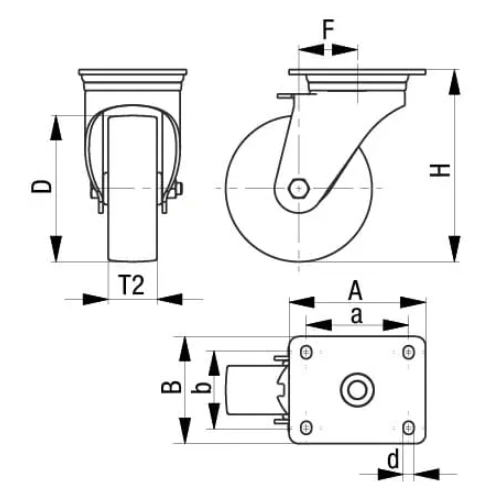

ESCO dimentional drawing
