Item# : EA986JF-125

Description : Swivel Caster (with Brake)

Spec

Ball bearing
Heat-proof temperature: -20 to 80℃
Material-Fitting: steel， Wheel: solid rubber
Wheels vary in shape with dim.
Specification Swivelfront brake
 Wheel dia. x Width 125 x 40mm
Load capacity 250kg
 Overall height 155mm
Additional explanation
Catalog Price (JPY)

¥ 14,200 （Excluding tax）／¥ 15,620（Tax including）

Quantity of stock

Latest stock：6

（2025/11/02 03:52 Currently）

Update
Catalog Page Page 1739
Relational Items
EA986JF-100 Swivel Caster (with Brake)
EA986JF-125 Swivel Caster (with Brake)
EA986JF-160 Swivel Caster (with Brake)
EA986JF-200 Swivel Caster (with Brake)
EA986JE-1 Swivel Caster (with Brake)
EA986JE-2 Swivel Caster (with Brake)
EA986JE-3 Swivel Caster (with Brake)
EA986JE-4 Swivel Caster (with Brake)
Web catalog image
Expanding
  • Prev
  • Next

Documents

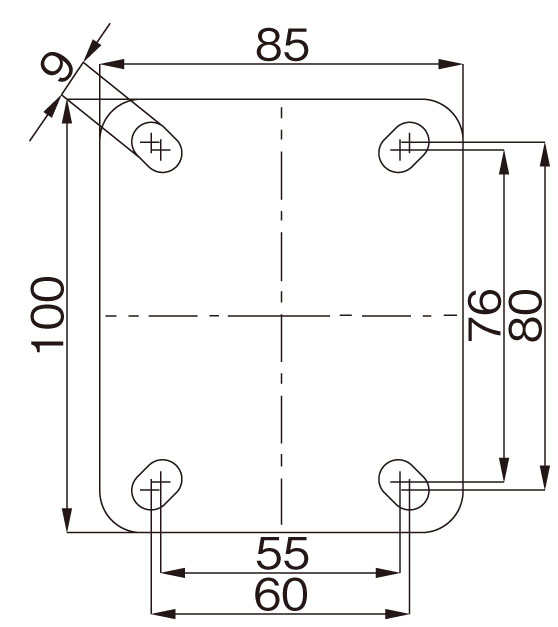

ESCO dimentional drawing
  1. IMG
  2. IMG
RoHS
  1. PDF
Catalog
  1. PDF

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
