Product Detail

Item# : EA986TD-50

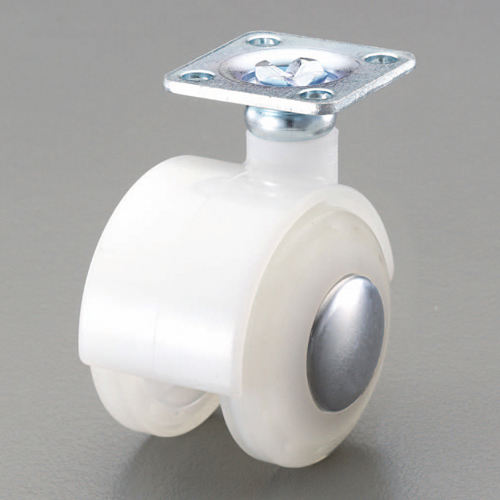

Description : Twin Urethane Wheel Caster Bolt Hole Plate

Catalog Correction

25/12/08 Wheel diameter x width/total height correction. Incorrect: 50x51mm/71mm, Correct: 50x53mm/70.5mm (9025 No.56,57)

Swivel casters
Wheel dia.r x Width-50×51mm
Load capacity-40kg
Overall height-71mm
Material-Body: nylon, Wheel: nylon (urethane-girded)
Specification-Without brake

Additional explanation

Relational Items

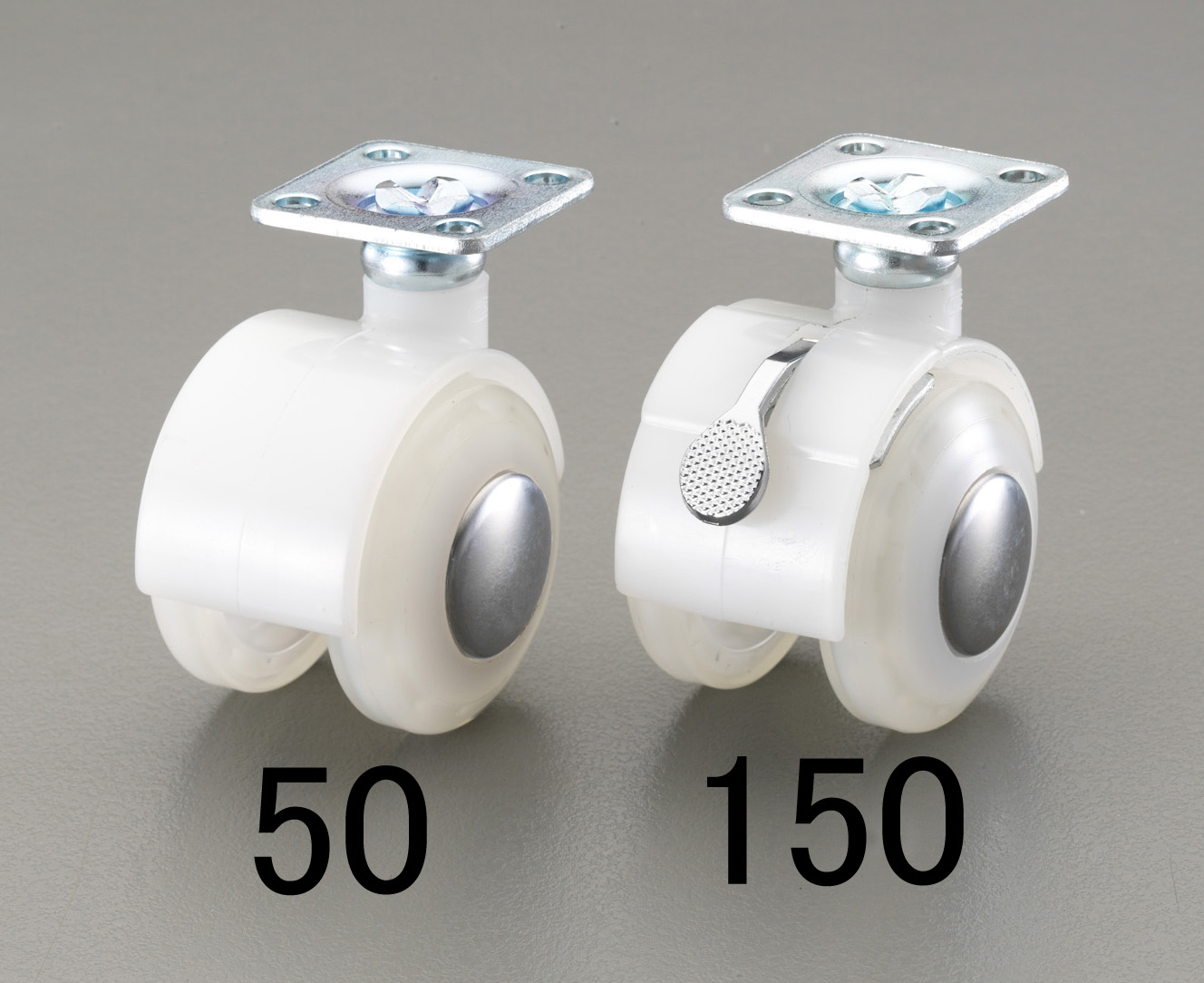

EA986TD-50 Twin Urethane Wheel Caster Bolt Hole Plate

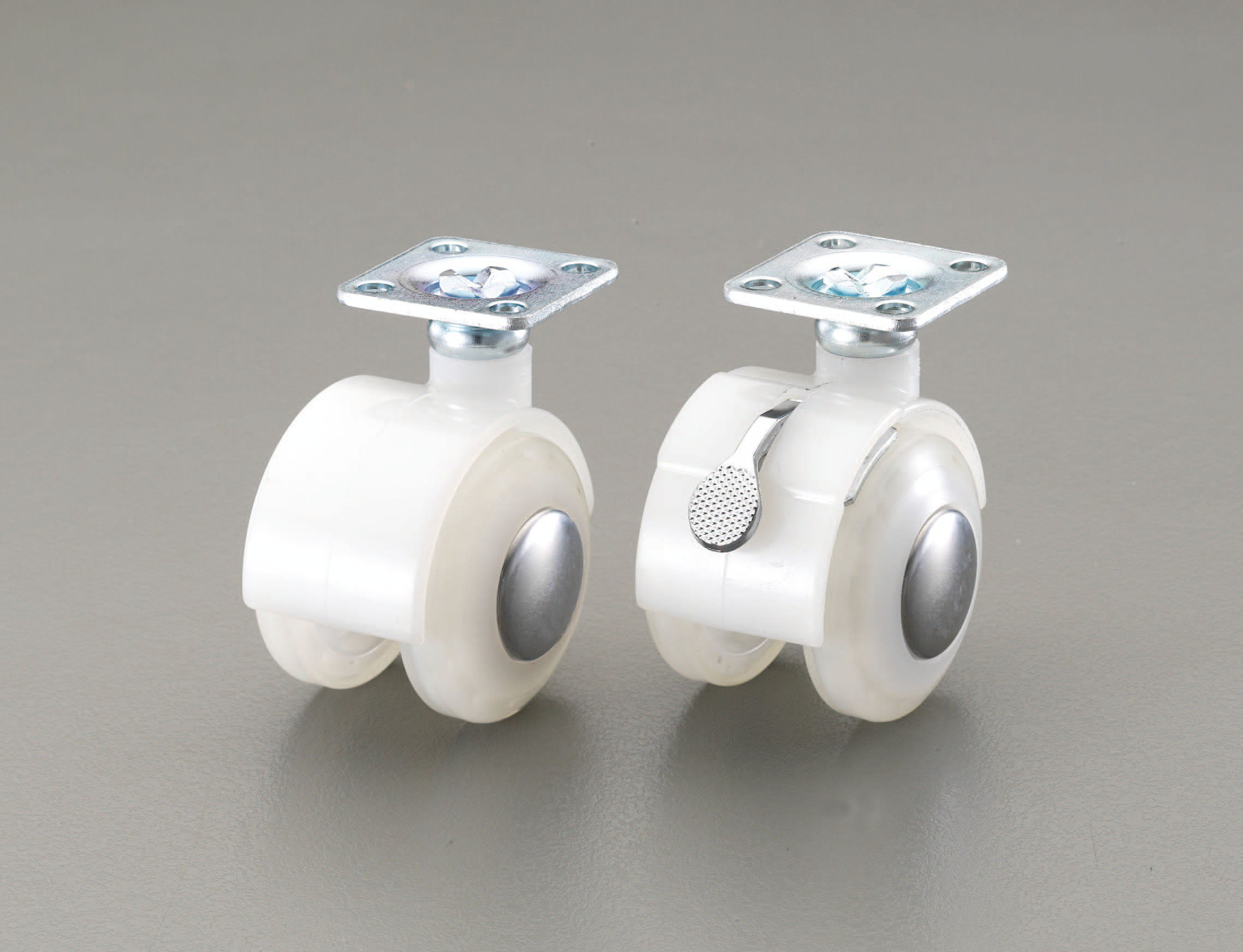

EA986TD-150 Twin Urethane Wheel Caster Bolt Hole Plate with Brake

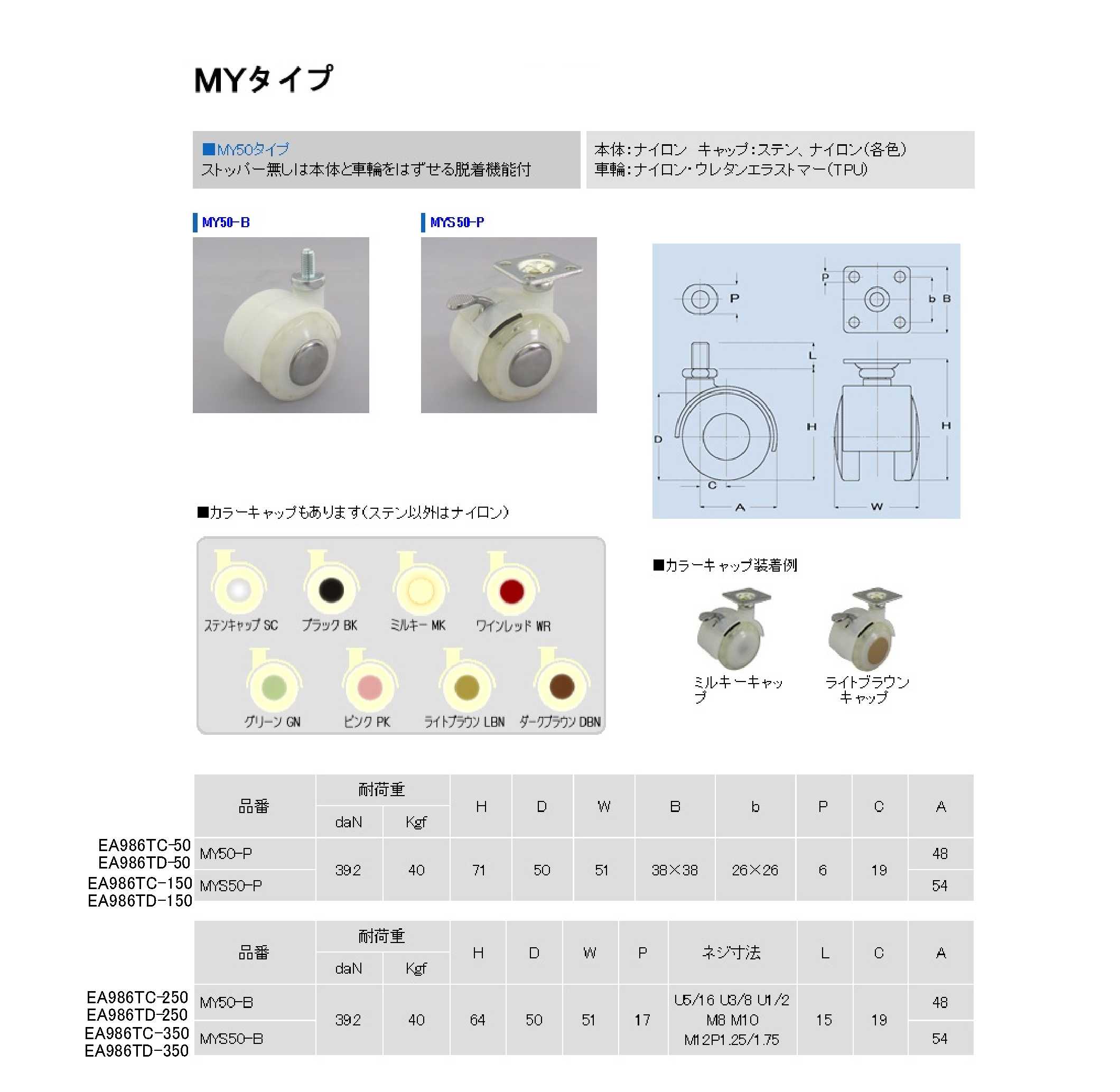

Web catalog image

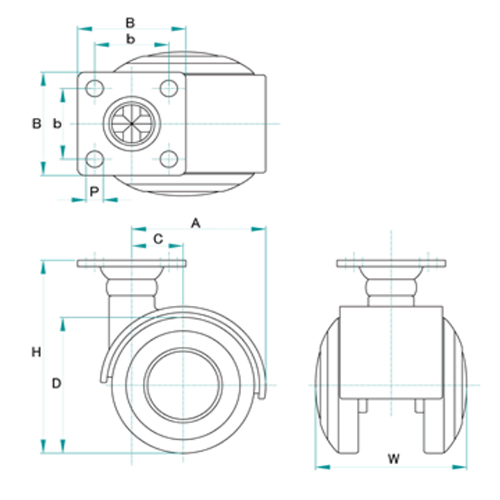

ESCO dimentional drawing
