Item# : EA124BK-6.5A
Description : Automatic Air Hose Reel (10m)
Spec
| Hose length-10m | |||
| Normal pressure-1.5MPa |
|||
| Dim.-312(W) x 121(D) x 388(H)mm |
|||
| Primary side fitting-G (PF) 3/8 |
|||
| Secondary side fitting-One-touch coupler |
|||
| ID x OD (mm) | 6.5 x 10 |
Weight | -6.5A：3.9kg，-8.5A：4.2kg |
|---|---|---|---|
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 36,000 （Excluding tax）／¥ 39,600（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：3 （2025/12/14 11:09 Currently）
|
||||
| Catalog Page | Page 1053 | ||||
| Relational Items |
|---|
| EA124BK-6.5A Automatic Air Hose Reel (10m) |
| EA124BK-8.5A Automatic Air Hose Reel (10m) |
Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")

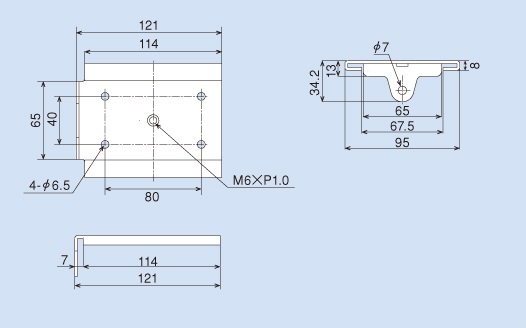

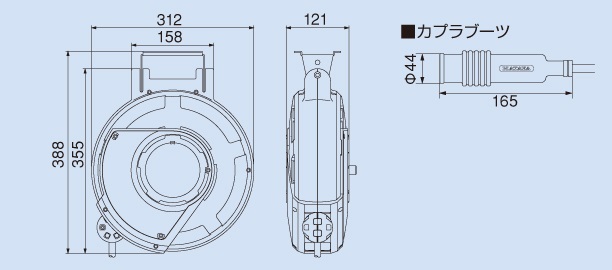

.jpg "ESCO dimentional drawing")
.jpg "ESCO dimentional drawing")
Documents
| ESCO dimentional drawing |
|
|---|---|
| Flyer |
|
| Manufacturer’s instruction manual(Japanese) |
|
| Specification |
|
