Item# : EA153CC-12

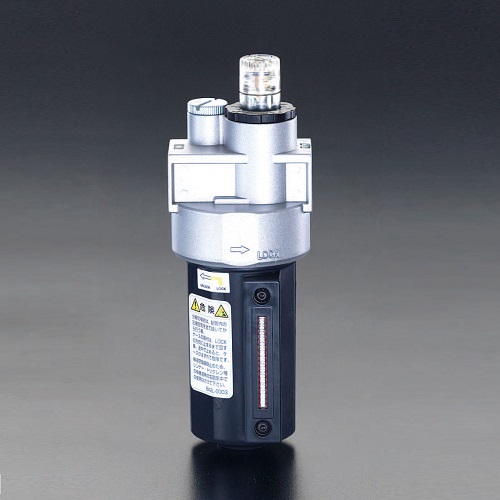

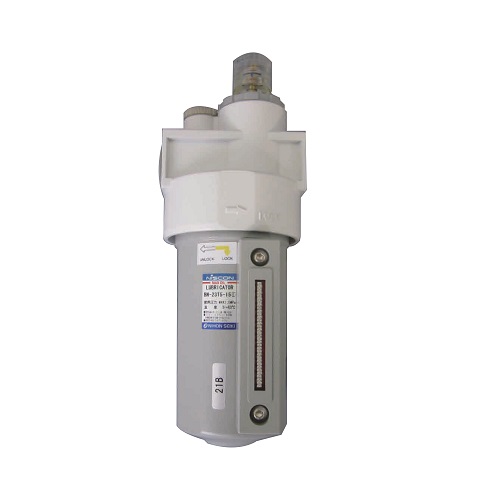

Description : Lubricator

Spec

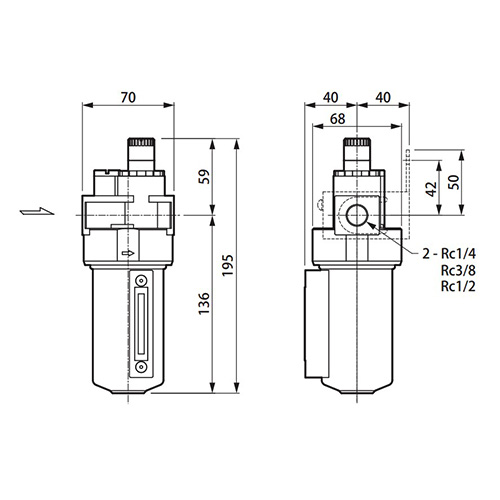

Height-195mm
Operating pressure-1.0MPa or below
Pressure resistance-1.5MPa
Ambient temperature-5 to 60℃
Oil capacity-200ml
Applicable oil-Equivalent to turbine oil class 1， ISO， VG #32
Weight-550g
End-to-end-70mm
Mounting screw Rc (PT) 1/4
Additional explanation
Catalog Price (JPY)

¥ 5,620 （Excluding tax）／¥ 6,182（Tax including）

Quantity of stock

Latest stock：1

（2024/05/21 07:51 Currently）

Update
Catalog Page Page 1070
