Item# : EA153CC-26

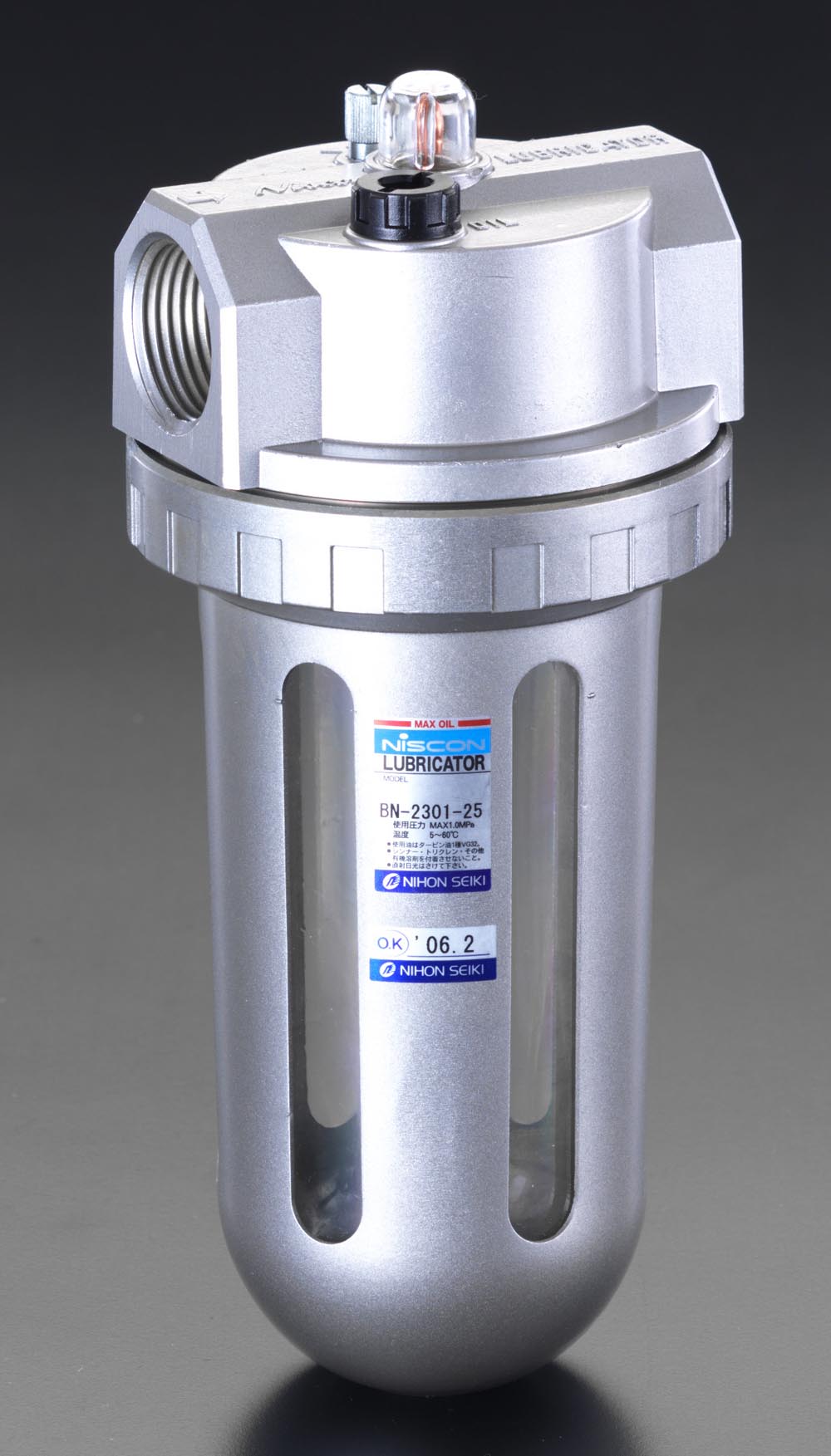

Description : Lubricator

Spec

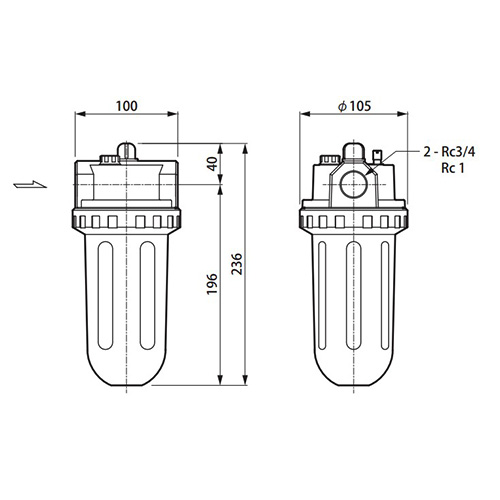

Height-235mm
End-to-end-100mm
Operating pressure-1.0MPa or below
Pressure resistance-1.5MPa
Ambient temperature-5 to 60℃
Oil capacity-400ml
Applicable oil-Equivalent to turbine oil class 1， ISO， VG #32
Weight-1.3kg
Mounting screw Rc (PT) 3/4
Additional explanation
Catalog Price (JPY)

¥ 9,350 （Excluding tax）／¥ 10,285（Tax including）

Quantity of stock

Latest stock：1

（2025/05/06 02:01 Currently）

Update
Catalog Page Page 1056
