Item# : EA469HB-50

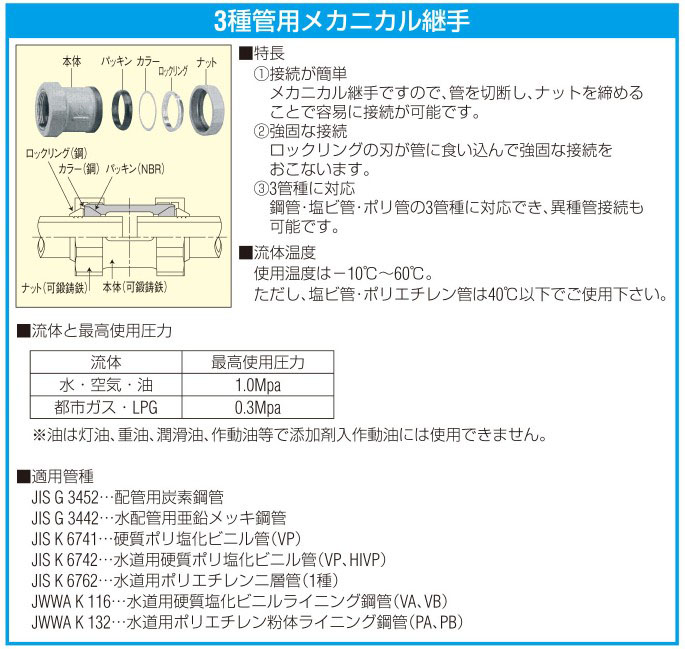

Description : Elbow (Mechanical Type)

Spec

Material-Body, nut: Malleable cast iron (hot dip galvanizing), Lock ring, collar: Steel, Packing: NBR

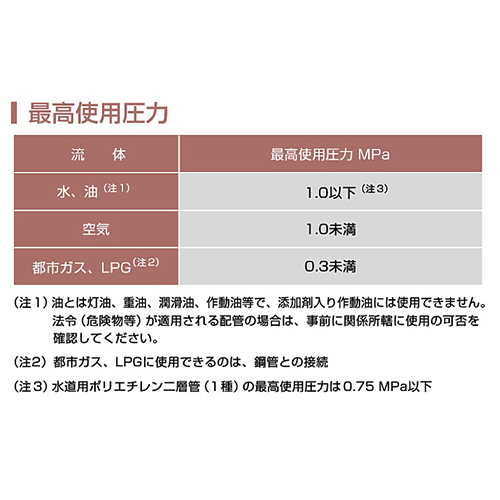

Max. operating pressure-Water, air, oil: 1.0MPa (10.2kgf/cm2), Utility gas, LPG: 0.3MPa (3.1kgf/cm2)
Nominal-50A
Additional explanation
Catalog Price (JPY)

¥ 11,100 （Excluding tax）／¥ 12,210（Tax including）

Quantity of stock

Latest stock：1

（2025/04/30 19:33 Currently）

Update
Catalog Page Page 1102
Relational Items
EA469HB-15 Elbow (Mechanical Type)
EA469HB-20 Elbow (Mechanical Type)
EA469HB-25 Elbow (Mechanical Type)
EA469HB-32 Elbow (Mechanical Type)
EA469HB-40 Elbow (Mechanical Type)
EA469HB-50 Elbow (Mechanical Type)
EA469HB-65 Elbow (Mechanical Type)
EA469HB-80 Elbow (Mechanical Type)
Web catalog image
Expanding
  • Prev
  • Next

Documents

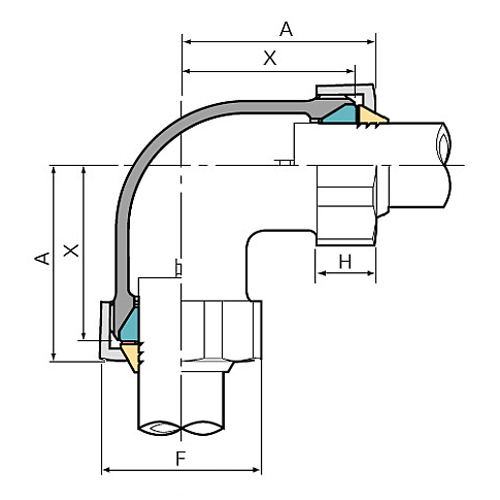

ESCO dimentional drawing
