Item# : EA469HE-15

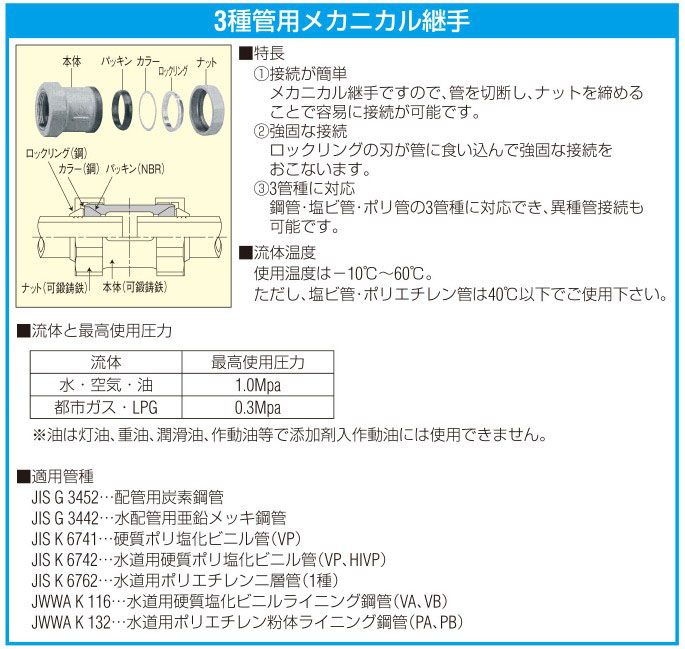

Description : Male Thread Socket (Mechanical Type)

Spec

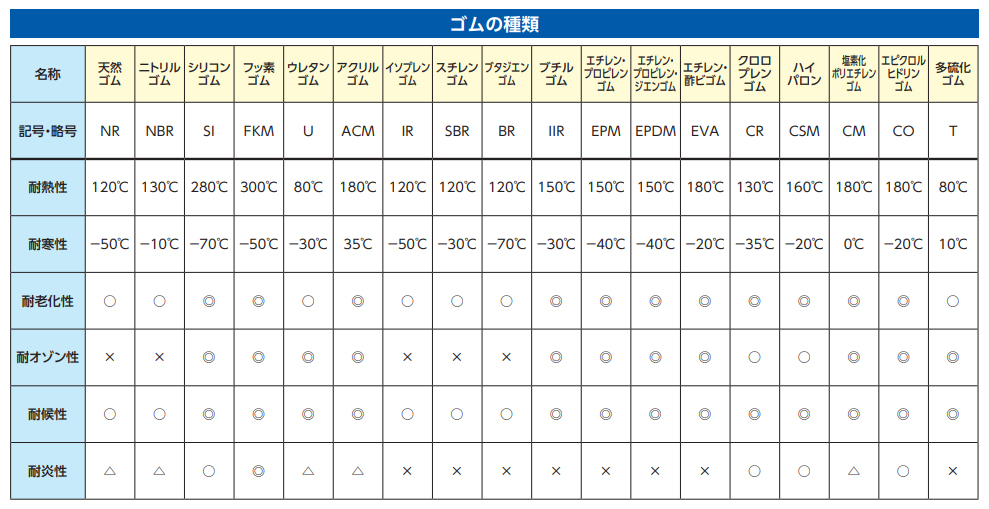

Material-Body, nut: Malleable cast iron (hot dip galvanizing), Lock ring, collar: Steel, Packing: NBR
Max. operating pressure-Water, air, oil: 1.0MPa (10.2kgf/cm2), Utility gas, LPG: 0.3MPa (3.1kgf/cm2)
Nominal-15A

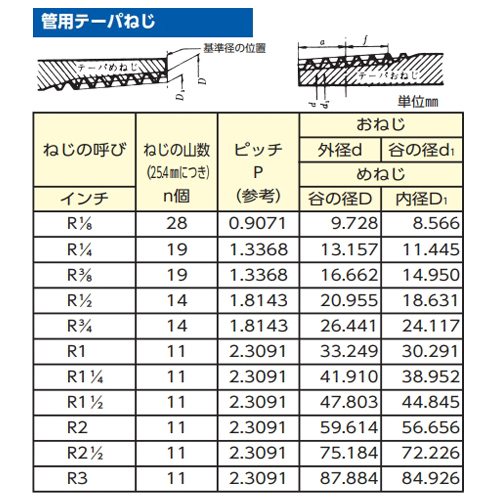

Screw dim.-R1/2”
Additional explanation
Catalog Price (JPY)

¥ 1,740 （Excluding tax）／¥ 1,914（Tax including）

Quantity of stock

Latest stock：5

（2025/11/03 09:07 Currently）

Update
Catalog Page Page 1102
Relational Items
EA469HE-15 Male Thread Socket (Mechanical Type)
EA469HE-20 Male Thread Socket (Mechanical Type)
EA469HE-25 Male Thread Socket (Mechanical Type)
EA469HE-32 Male Thread Socket (Mechanical Type)
EA469HE-40 Male Thread Socket (Mechanical Type)
EA469HE-50 Male Thread Socket (Mechanical Type)
EA469HE-65 Male Thread Socket (Mechanical Type)
EA469HE-80 Male Thread Socket (Mechanical Type)
Web catalog image
Expanding
  • Prev
  • Next

Documents

ESCO dimentional drawing
