Item# : EA469HF-32

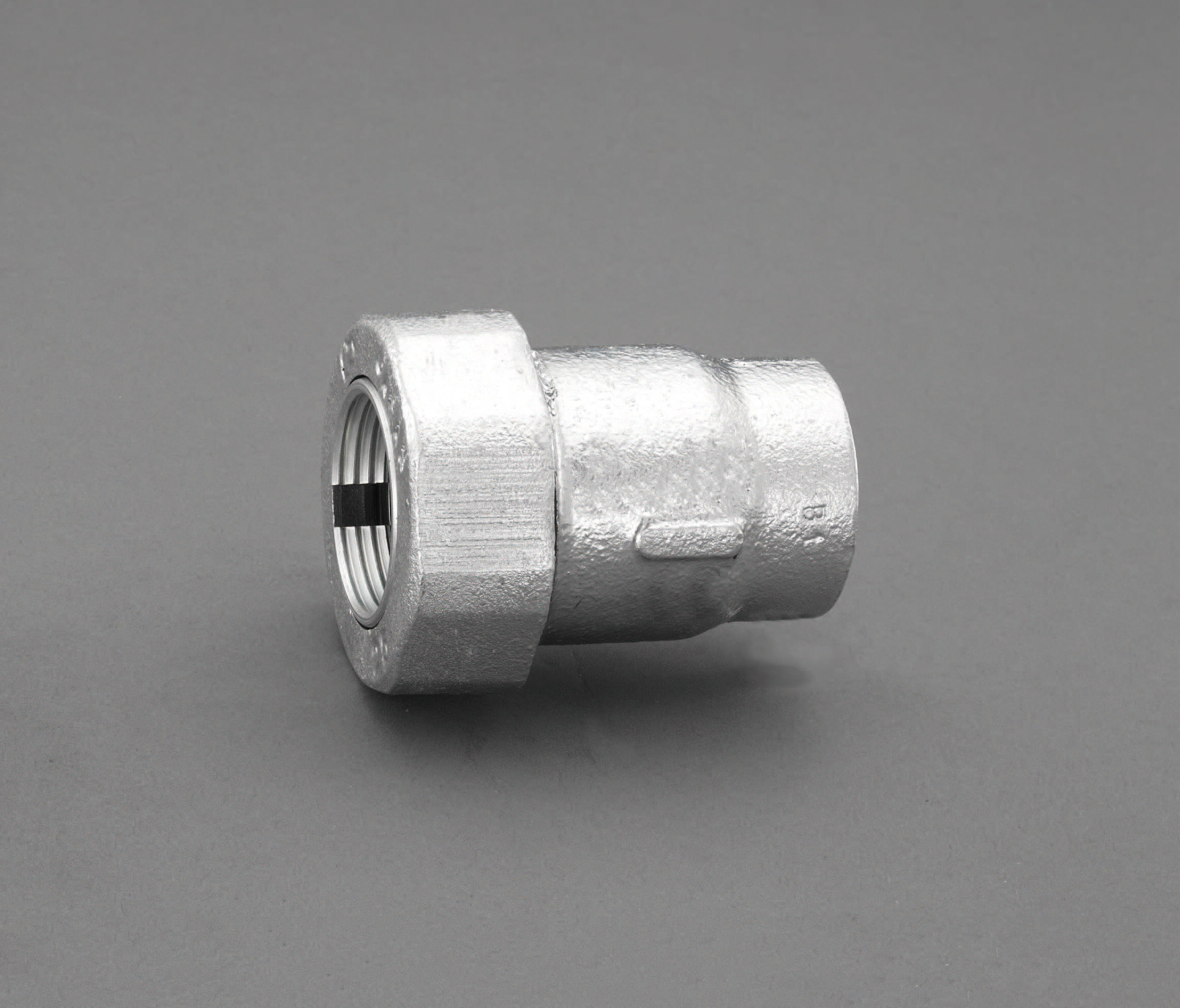

Description : Female Thread Socket (Mechanical Type)

Spec

Material-Body, nut: Malleable cast iron (hot dip galvanizing), Lock ring, collar: Steel, Packing: NBR
Max. operating pressure-Water, air, oil: 1.0MPa (10.2kgf/cm2), Utility gas, LPG: 0.3MPa (3.1kgf/cm2)
Nominal-32A
Screw dim.-Rc1.1/4”
Additional explanation
Catalog Price (JPY)

¥ 3,540 （Excluding tax）／¥ 3,894（Tax including）

Quantity of stock

Latest stock：0

（2026/01/31 20:20 Currently）

Update
Catalog Page Page 1058
Relational Items
EA469HF-15 Female Thread Socket (Mechanical Type)
EA469HF-20 Female Thread Socket (Mechanical Type)
EA469HF-25 Female Thread Socket (Mechanical Type)
EA469HF-32 Female Thread Socket (Mechanical Type)
EA469HF-40 Female Thread Socket (Mechanical Type)
EA469HF-50 Female Thread Socket (Mechanical Type)
Web catalog image
Expanding
  • Prev
  • Next

Documents

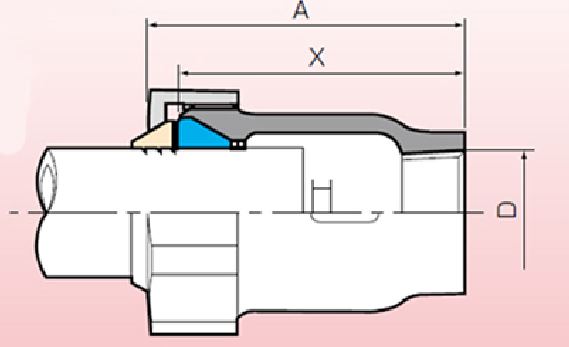

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
