Item# : EA470DB-6

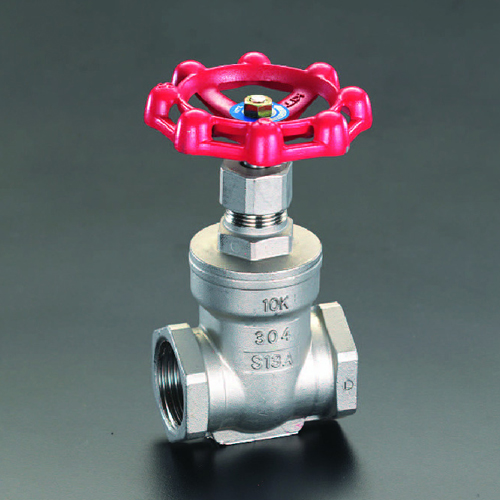

Description : Gate Valve [Stainless Steel]
Spec
| Material-Stainless steel (body) |
|||
| Max pressure-Water， oil， gas (*) (180℃ or below): 0.98MPa (10kgf/cm2)Still water (120℃ or below): 1.37MPa (14kgf/cm2) |
|||
| *This bulb is not designed to handle toxic gases. Use specially designed or certified valves for flammable gas service. |
|||
| Screw dim. (PT) | 3/4 | ||
|---|---|---|---|
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 15,300 （Excluding tax）／¥ 16,830（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：3 （2025/11/02 05:05 Currently）
|
||||
| Catalog Page | Page 1103 | ||||
Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "ESCO dimentional drawing")
.jpg "商品説明")
Documents

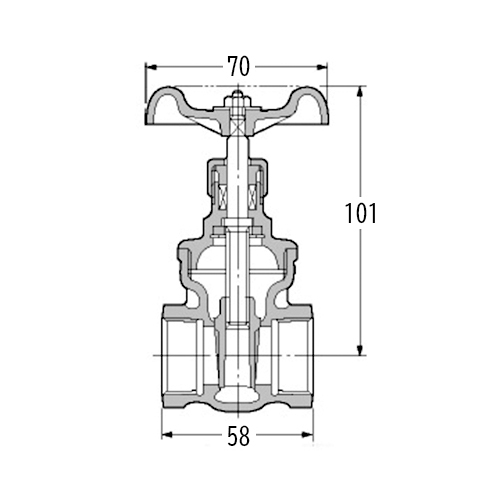

| ESCO dimentional drawing |
|
|---|---|
| Manufacturer’s instruction manual(Japanese) |
|
| Specification |
|
