Product Detail

print
japanese
URL：

Item# : EA538MA-107

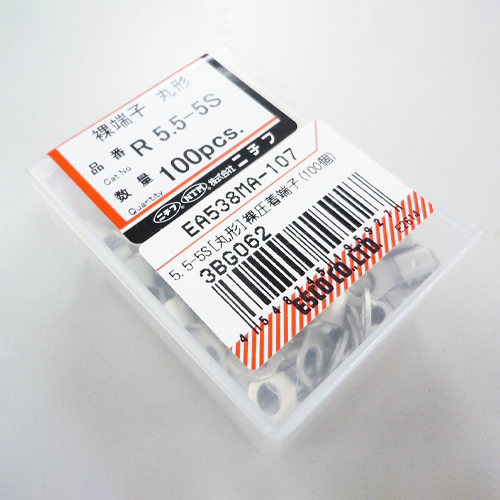

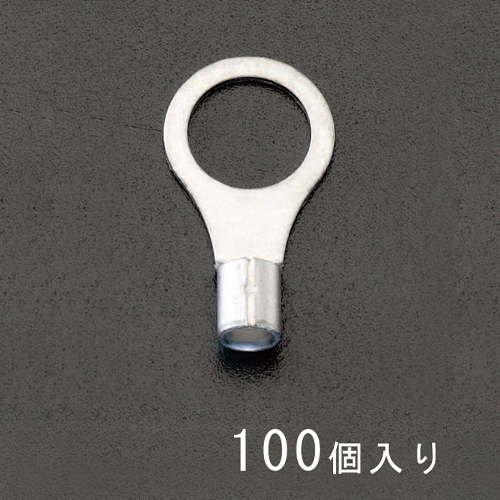

Description : [Round type] Bare crimp terminal

Spec

Material-Oxygen-free copper(Tin electroplated)
Type 5.5-5S
 Solid(mm) 1.82 to 2.89
Stranded(mm2) 2.63 to 6.64
 Qty. 100 pcs
Size φd2：5.3mm
Additional explanation
Catalog Price (JPY)

¥ 1,950 （Excluding tax）／¥ 2,145（Tax including）

Quantity of stock

Latest stock：13

（2025/05/01 20:07 Currently）

Update
Catalog Page Page 1218
Relational Items
EA538MA-105 [Round type] Bare crimp terminal
EA538MA-106 [Round type] Bare crimp terminal
EA538MA-107 [Round type] Bare crimp terminal
EA538MA-108 [Round type] Bare crimp terminal
EA538MA-109 [Round type] Bare crimp terminal
EA538MA-110 [Round type] Bare crimp terminal
EA538MA-111 [Round type] Bare crimp terminal
EA538MA-112A
EA538MA-113A
EA538MA-114 [Round type] Bare crimp terminal
EA538MA-115 [Round type] Bare crimp terminal
EA538MA-116 [Round type] Bare crimp terminal
EA538MA-117 [Round type] Bare crimp terminal
EA538MA-118 [Round type] Bare crimp terminal
EA538MA-119 [Round type] Bare crimp terminal
EA538MA-120 [Round type] Bare crimp terminal
EA538MA-121 [Round type] Bare crimp terminal
EA538MA-122 [Round type] Bare crimp terminal
EA538MA-123 [Round type] Bare crimp terminal
EA538MA-124 [Round type] Bare crimp terminal
EA538MA-125 [Round type] Bare crimp terminal
EA538MA-126 [Round type] Bare crimp terminal
EA538MA-127 [Round type] Bare crimp terminal
EA538MA-128 [Round type] Bare crimp terminal
EA538MA-129 [Round type] Bare crimp terminal
EA538MA-130 [Round type] Bare crimp terminal
EA538MA-131 [Round type] Bare crimp terminal
Web catalog image
Expanding
  • Prev
  • Next

Documents

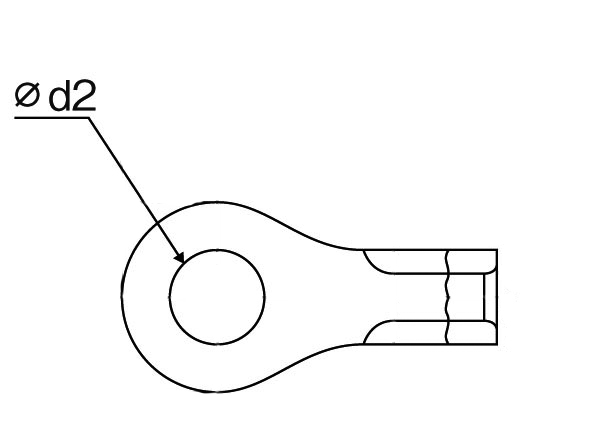

ESCO dimentional drawing
