Item# : EA538MA-120

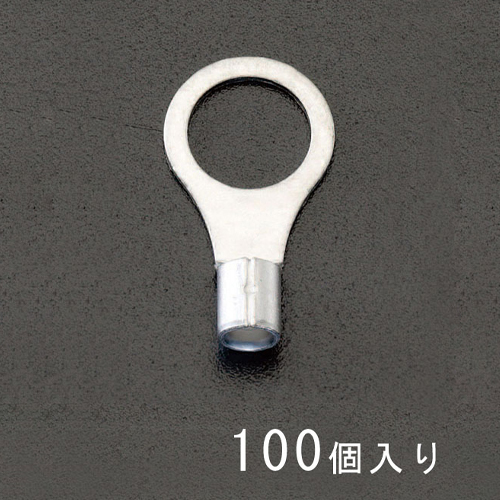

Description : [Round type] Bare crimp terminal

Spec

Material-Oxygen-free copper(Tin electroplated)
Type 22-8S
 Stranded(mm2) 16.78 to 26.66
Qty. 100 pcs
 Size φd2：8.4mm
Additional explanation
Catalog Price (JPY)

¥ 9,800 （Excluding tax）／¥ 10,780（Tax including）

Quantity of stock

Latest stock：2

（2024/05/11 18:25 Currently）

Update
Catalog Page Page 1234
