Item# : EA637BG-10

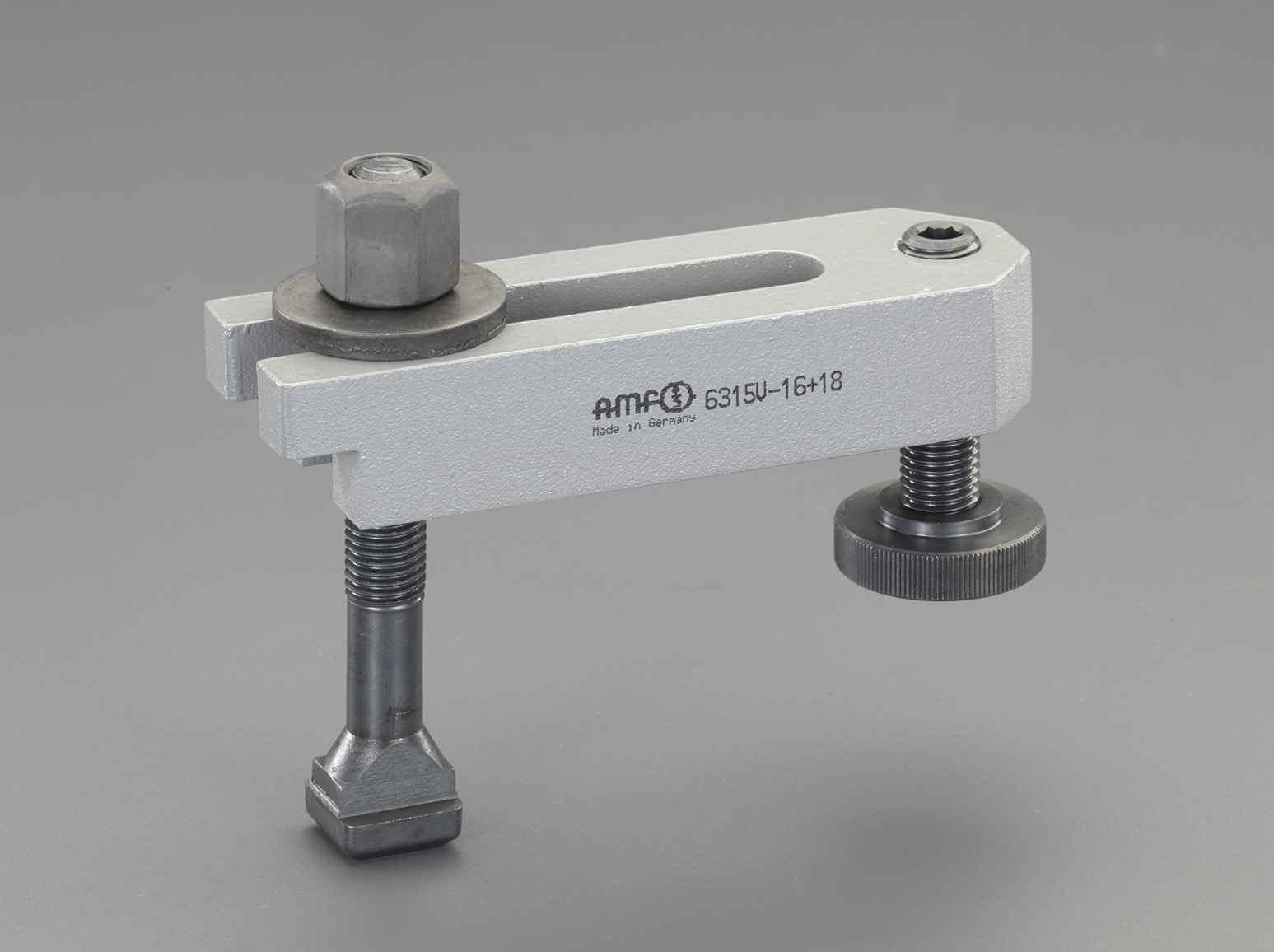

Description : Supporting Screw Adapted Clamp （Main Screw Adapted ）

Spec

Material Hardened Steel
Size H is changeable depend on groove depth and fixed nut location.
Please use clamp upside-down when thin application is clamped.
A 20mm
 B 30mm
C 100mm
 H 8 to 37mm
Clamp Screw M10×10×80
 Supporting Screw M10×39
Additional explanation
Catalog Price (JPY)

¥ 4,080 （Excluding tax）／¥ 4,488（Tax including）

Quantity of stock

Latest stock：2

（2025/06/17 21:08 Currently）

Update
Catalog Page Page 0666
